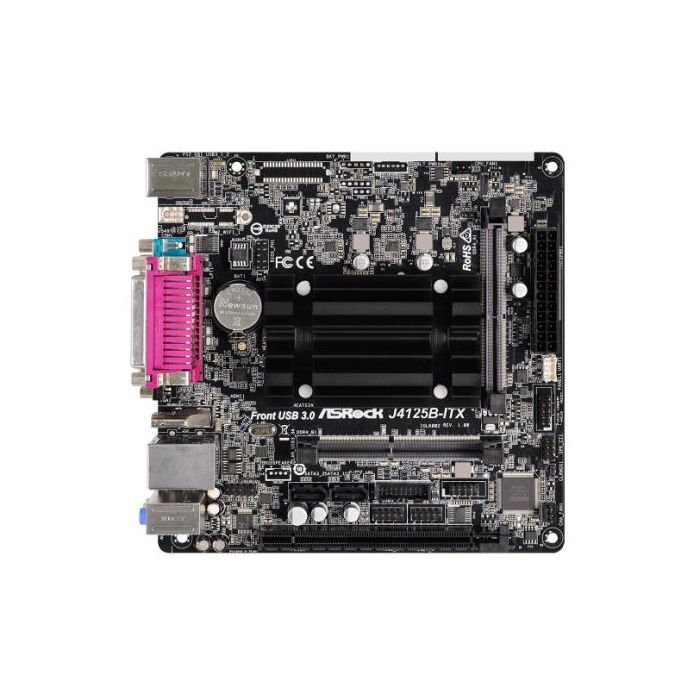

Asrock J4125B-ITX, Integrated Intel Quad-Core J4125, Mini ITX, DDR4 SODIMM, VGA, HDMI, Serial Port, Parallel Port
£93.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBJ4125B-ITX
Asrock J4125B-ITX, Integrated Intel Quad-Core J4125, Mini ITX, DDR4 SODIMM, VGA, HDMI, Serial Port, Parallel Port
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Embedded CPU
- CPU: Intel Quad-Core Processor J4125 (up to 2.7 GHz)
- #Hide#DDR Type: DDR4 SO-DIMM
- CPU Support: N/A (Integrated CPU)
- RAM Technology: DDR4 SO-DIMM (Dual Channel)
- RAM Slots: 2 x SODIMM
- RAM Speeds: 2400 / 2133 MHz
- Maximum Memory: 8GB
- Graphics: Integrated Intel UHD Graphics 600: 12 EUs inside (Up to 750MHz)
- Graphics Ports: 1 x VGA
1 x HDMI - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 2.0 x16
- Storage: 2 x SATA III
- RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- USB Ports Supported: "5 x USB 3.2 Gen1 ports (3 at back, 2 at mid-board)
5 x USB 2.0 ports (1 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x Parallel
1 x Serial: COM1
1 x D-Sub
1 x HDMI
1 x USB 2.0
3 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x Chassis Fan
1 x 24 pin ATX
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: "2 x SATA Data Cables
Quick Installation Guide, Support CD, I/O Shield" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.6790 kg
- Warranty: 2 Year Replacement Warranty
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
D-Sub, HDMI, Parallel, COM Packed with a COM port + Printer port + D-Sub + HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray (BD) playback. HEVC 10-bit Decoding/Encoding Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Supports DDR4 SO-DIMMs Supports the latest DDR4 SO-DIMM memory modules and most extreme memory performance! ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
|
|---|
