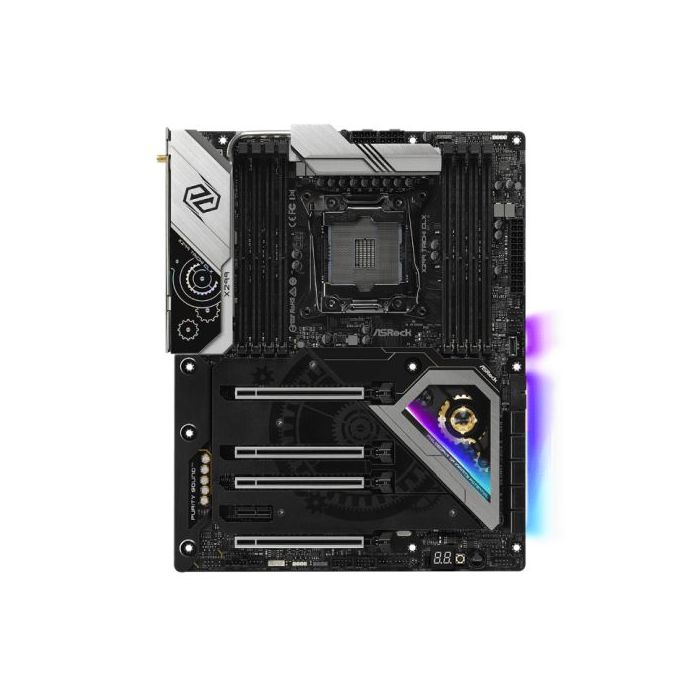

Asrock X299 TAICHI CLX, Intel X299, 2066, ATX, 8 DDR4, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2
£385.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBX299TAICHICLX
Asrock X299 TAICHI CLX, Intel X299, 2066, ATX, 8 DDR4, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 2066
- Chipset: Intel X299
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Quad Channel)
- RAM Slots: 8 x DIMM
- RAM Speeds: 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
- Maximum Memory: 256GB
- Graphics: -
- Graphics Ports: -
- Multi-GPU Support: Supports AMD 3-Way CrossFireX
Supports NVIDIA 3-Way SLI - PCI/PCI Express: 4 x PCIe 3.0 x16
1 x PCIe 3.0 x1 - Storage: 10 x SATA III
2 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 2.4Gbps
2 antennas (2 (Transmit) x 2 (Receive))
Supports Bluetooth 5.0
Supports MU-MIMO - LAN: 2.5GB LAN & GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2 Header" - Back Panel I/O Ports: 2 x Antenna
1 x Optical SPDIF Out
2 x USB 2.0
1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen1
2 x RJ-45 LAN
1 x Clear CMOS Button
HD Audio Jacks - Internal I/O Connectors: 1 x Virtual RAID On CPU
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
5 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x Thunderbolt AIC - .: 2 x USB 2.0
1 x USB 3.2 Gen1
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button
1 x Front Panel Type C USB 3.2 Gen2 Header - Accessories: 4 x SATA Data Cables
1 x ASRock SLI_HB_Bridge_2S Card
1 x ASRock WiFi 2.4/5 GHz Antenna
1 x ASRock Screwdriver
3 x Screws for M.2 Sockets
3 x Standoffs for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 3.2000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications |
XXL Aluminum Alloy Heatsink & Heatpipe Design Extra-large aluminum alloy heatsink along with heatpipe that effectively take away heat from the MOSFET, so that your whole system may perform more stable. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Wi-Fi 6 802.11ax Welcome to the new Wi-Fi standard! ASRock’s motherboard equipped with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. 2.5G ETHERNET, HIGH TCP & UDP THROUGHPUT Going beyond gaming! ASRock 2.5Gb/s LAN motherboard with higher throughput that is excellent at a small package file transferring and unleash the stunning performance especially for gaming. UNBEATABLE HEATSINK ARMOR Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath its solid strong cover lie three gaming required M.2 key M sockets. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. 13 Power Phase Design Designed with a 13 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. PCI-E STEEL SLOT The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely. Front USB 3.2 Gen2 Type-C Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. 8LAYER & 2OZ COPPER PCB The 8 Layer PCB comes with 4 sets of 2 ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and higher energy efficiency for overclocking! Thus, it's able to support the latest DDR4 memory modules with most extreme memory performance! Super Alloy Motherboard XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. Premium 60A Power Choke Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
