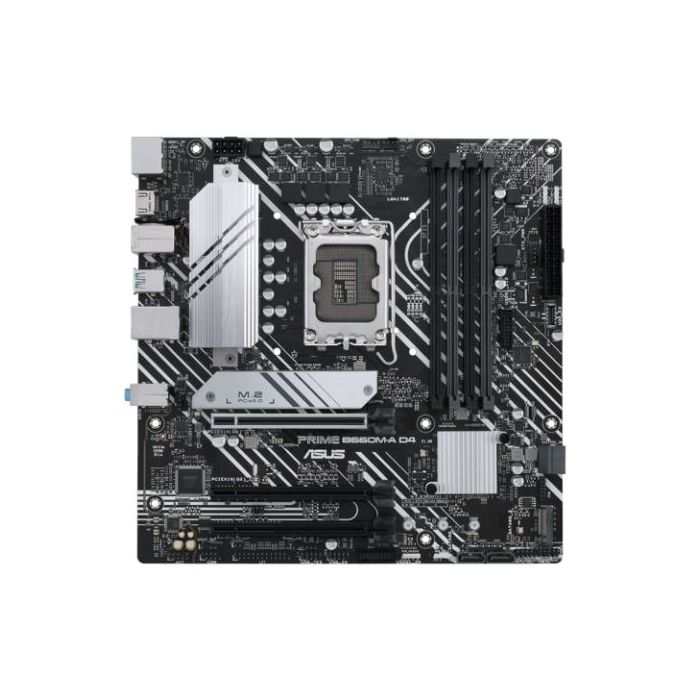

Name: Asus PRIME B660M-A D4, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2
Brand: Asus PRIME B660M-A D4, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2
SKU: SPTECH-AUMBB660MAPRD4-SB
Price: 194.99 GBP
Availability: OutOfStock

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel B660
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 5333(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 2 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x16 (x4)
1 x PCIe 3.0 x16 (x1)
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Wireless: -
LAN: GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
9 x USB 2.0 (4 at back, 5 at mid-board)
1 x USB 3.1 Gen1 Type-C front panel connector"
Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x DisplayPort
2 x HDMI
1 x Intel 1Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x USB 2.0
3 x AURA Addressable Gen2
.: 1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x Support DVD
1 x User manual
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information
Specifications	Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet ,rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C® ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

Asus PRIME B660M-A D4, Intel B660, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, PCIe4, 2x M.2

Intel® B660 (LGA 1700) mATX motherboard with PCIe 4.0, two M.2 slots, Intel® 1Gb Ethernet, DP,2 x HDMI®, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C, Aura Sync
