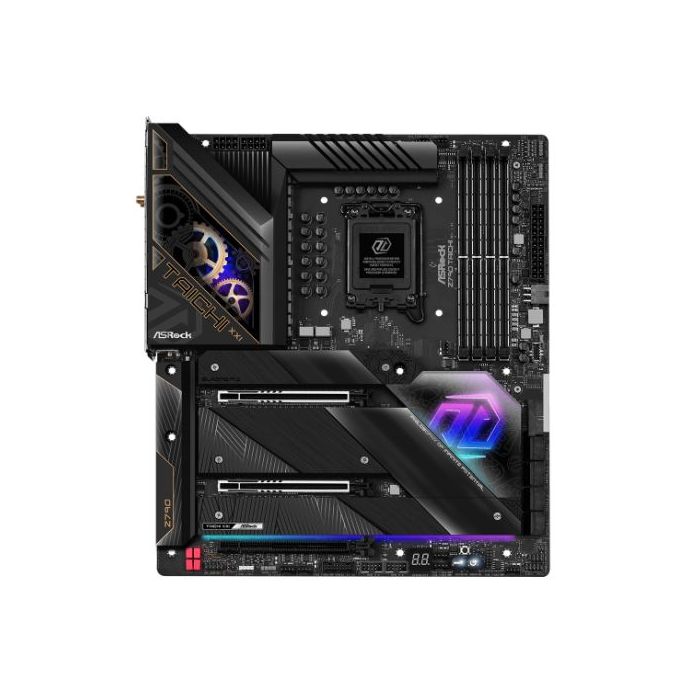

Asrock Z790 TAICHI, Intel Z790, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, RGB, 5x M.2

Name: Asrock Z790 TAICHI, Intel Z790, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, RGB, 5x M.2
Brand: Asrock Z790 TAICHI, Intel Z790, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, RGB, 5x M.2
SKU: SPTECH-ASMBZ790TAICHI
Price: 442.99 GBP
Availability: OutOfStock

Be the first to review this product

£442.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBZ790TAICHI

Asrock Z790 TAICHI, Intel Z790, 1700, EATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, RGB, 5x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Extended ATX
Socket: Intel 1700
Chipset: Intel Z790
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 7000+(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
2 x Thunderbolt 4 - supports HDCP 2.3 and max. resolution up to 8K 60Hz
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 2 x PCIe 5.0 x16 (support x16 or x8/x8 modes)
1 x PCIe 4.0 x16 (supports x4 mode)
Storage: 8 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 160MHz w/ ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro
LAN: 2.5GB LAN & GB LAN
Audio: 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
10 x USB 3.2 Gen1 (6 at back*, 4 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen2x2 Type-C front panel connector

*USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB4 Thunderbolt 4 Type-C
2 x USB 3.2 Gen2 Type-A
6 x USB 3.2 Gen1
2 x USB 2.0
2 x RJ-45 LAN
1 x Line Out Jack
1 x Microphone Input Jack
Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
6 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x 12V 6 pin
1 x Front Panel Audio
2 x USB 2.0
.: 2 x USB 3.2 Gen1
1 x Front Panel Type-C USB 3.2 Gen2x2
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Accessories: 1 x User Manual
4 x SATA Data Cables
1 x Wireless Dongle USB Bracket
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
Additional Features: See Overview
Package Type: Retail
Package Weight: 3.7000 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation. Supports 13th Gen & 12th Gen Intel® Core™ Processors 24+1+2 Phase Power Design, SPS for VCore+GT 4 x DDR5 DIMMs, supports up to 7000+(OC) 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 M.2 Key-E for WiFi Graphics Output Options: 2 USB4 Type-C, 1 HDMI 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), ESS SABRE9218 DAC, WIMA Audio Caps, Nahimic Audio 1 Blazing M.2 (PCIe Gen5x4), 4 Hyper M.2 (PCIe Gen4x4), 8 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 2 USB 3.2 Gen2 Type-A (Rear), 10 USB 3.2 Gen1 (6 Rear, 4 Front), 6 USB 2.0 (2 Rear, 4 Front) Killer 2.5G LAN, Intel® 1G LAN Killer 802.11ax Wi-Fi 6E + Bluetooth Optimized VRM Design SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. 24+1+2 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. 8 Layer PCB design The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise. DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance up to 7000MHz and beyond by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. DDR5 Memory with Protection Circuit Reinforced DIMM Slot - The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency. DIY Friendly Design - Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. PCIe Gen5 Blazing M.2 The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs. Anti-Drop Screw Tired of dropping screws or screws missing inside chassis? The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily. Thunderbolt Technology Thunderbolt™ 4/USB4 Type-C - Thunderbolt™ 4/USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable. Fast Charging Technology - Enjoy the superfast charging rate, up to 20V@3A 60W with the next generation PD 3.0! More than USB Transfer Speed Lightning Gaming Ports - Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! Ultra USB Power - Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency! Polychrome RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
