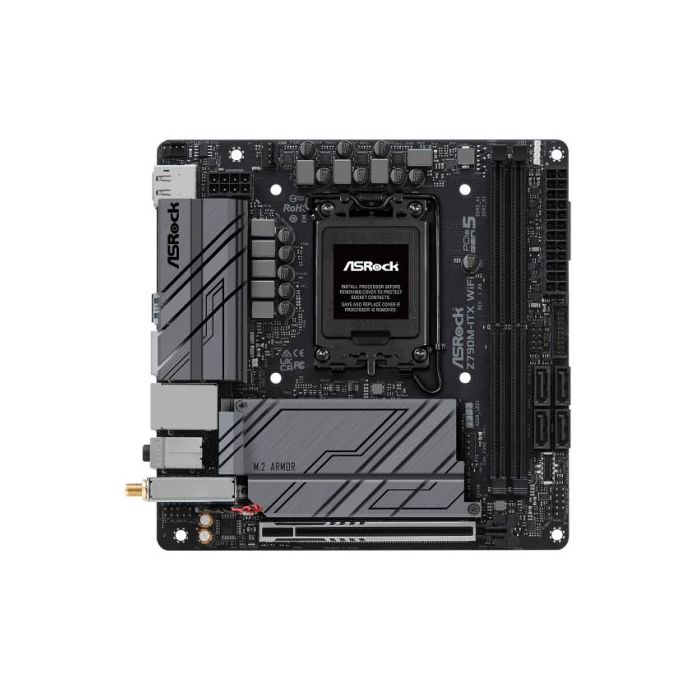

Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2

Name: Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2
Brand: Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2
SKU: SPTECH-ASMBZ790MITXWIFI
Price: 164.99 GBP
Availability: InStock

Be the first to review this product

£164.99 incl. VAT + Free Shipping

In stock

SKU

SPTECH-ASMBZ790MITXWIFI

Asrock Z790M-ITX WIFI, Intel Z790, 1700, Mini ITX, 2 DDR5, HDMI, DP, eDP, Wi-Fi 6E, 2.5G & GB LAN, PCIe5, 2x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Mini ITX
Socket: Intel 1700
Chipset: Intel Z790
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 2 x DIMM
RAM Speeds: Up to 6800+(OC)
Maximum Memory: 64GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
1 x eDP 1.4
PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
Storage: 4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - SATA & PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
LAN: 2.5GB LAN & GB LAN
Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
4 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
3 x USB 2.0 (1 at back, 2 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen2x2 Header"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x Optical SPDIF Out
4 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2x2 Type-C
1 x USB 2.0
2 x RJ-45 LAN
1 x Line Out Jack
1 x Microphone Input Jack
Internal I/O Connectors: 1 x eDP Signal
1 x RGB LED
1 x Addressable LED
1 x CPU/Water Pump Fan
2 x Chassis Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2
Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets
Additional Features: See Overview
Package Weight: 1.0000 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	Z790M-ITX WiFi Supports 13th Gen & 12th Gen Intel® Core™ Processors 7+1+1 Phase Power Design, Dr.MOS for VCore+GT 2 x DDR5 DIMMs, supports up to 6800+(OC) 1 PCIe 5.0 x16 Graphics Output Options: 1 HDMI, 1 DisplayPort, eDP 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio 1 Hyper M.2 (PCIe Gen4x4), 1 Hyper M.2 (PCIe Gen4x4 & SATA3), 4 SATA3 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2x2 Type-C (Rear), 4 USB 3.2 Gen2 Type-A (Rear), 2 USB 3.2 Gen1 (Front), 3 USB 2.0 (1 Rear, 2 Front) Intel® 2.5G LAN, Intel® 1G LAN 802.11ax Wi-Fi 6E + Bluetooth Optimized VRM Design Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. 7+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. 8 Layer PCB - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! DDR5 Memory with Protection Circuit Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Nahimic Audio Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. Polychrome RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects High Speed M.2 Solution (PCIe Gen4 x4) Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Abundant USB Front USB 3.2 Gen2 Type-C - Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. USB 3.2 Gen2 - This motherboard has four onboard Type-A USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done!
