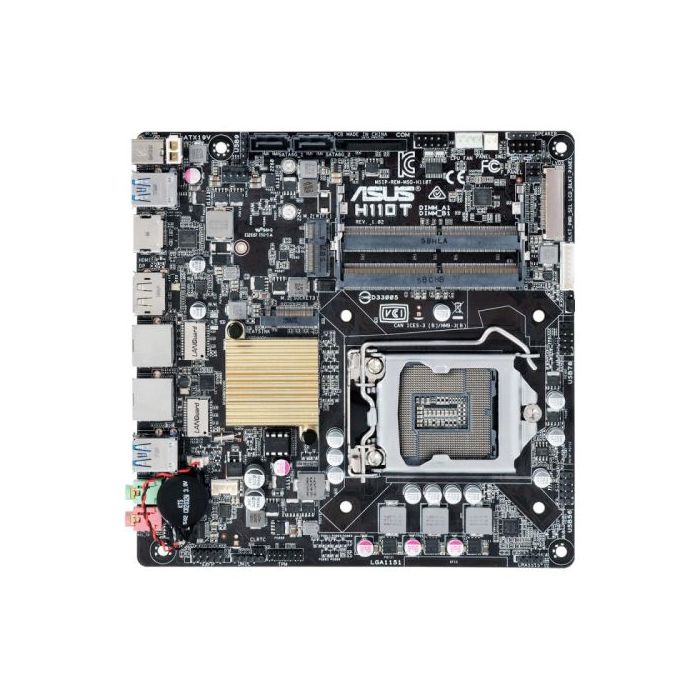

Asus H110T/CSM - Corporate Stable Model, Intel H110, 1151, Thin Mini ITX, DDR4 SODIMM, Dual GB LAN, DC Jack, M.2

Name: Asus H110T/CSM - Corporate Stable Model, Intel H110, 1151, Thin Mini ITX, DDR4 SODIMM, Dual GB LAN, DC Jack, M.2
Brand: Asus H110T/CSM - Corporate Stable Model, Intel H110, 1151, Thin Mini ITX, DDR4 SODIMM, Dual GB LAN, DC Jack, M.2
SKU: SPTECH-AUMBH110TCSM
Price: 89.99 GBP
Availability: OutOfStock

Be the first to review this product

£89.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBH110TCSM

Asus H110T/CSM - Corporate Stable Model, Intel H110, 1151, Thin Mini ITX, DDR4 SODIMM, Dual GB LAN, DC Jack, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Thin Mini ITX
Socket: Intel 1151 - Sky/Kaby Lake
Chipset: Intel H110
#Hide#DDR Type: DDR4 SO-DIMM
CPU Support: Click here for CPU support
RAM Technology: DDR4 SO-DIMM (Dual Channel)
RAM Slots: 2 x SODIMM
RAM Speeds: 2400/2133 MHz
Maximum Memory: 32GB
Graphics: Supports Intel HD Graphics
Graphics Ports: 1 x HDMI
1 x DisplayPort
Multi-GPU Support: -
Storage: 2 x SATA III
1 x M.2 Socket (2242/2260) - SATA & PCIe
RAID: -
Wireless: -
LAN: Dual GB LAN
Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
USB Ports Supported: 4 x USB 3.1 Gen1 (at back)
5 x USB 2.0 (at mid-board)
Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
2 x LAN (RJ45)
4 x USB 3.1 Gen1
2 x Audio jacks
1 x DC power connector
Internal I/O Connectors: 3 x USB 2.0
1 x M.2 Socket 3 with M key
1 x COM port
2 x SATA 6Gb/s
1 x SATA power
1 x CPU Fan
1 x Chassis Fan
1 x Front audio
1 x Chassis Intrusion
1 x Clear CMOS jumper
1 x 2-pin internal DC power
1 x Stereo speaker
.: "1 x DMIC
1 x Backlight inverter voltage selection
1 x FPD brightness
1 x Panel voltage selection
1 x Panel off
1 x LVDS
1 x 14-1 pin TPM
1 x System panel
1 x M.2 Socket 1 with E key, type 2230 for Wi-Fi/BT devices support or PCIE/USB mode"
Accessories: Users manual
I/O Shield
Thin Mini ITX I/O Shield
1 x SATA power cable
2 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x Supporting DVD
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.6550 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Full-featured, thin-client mini-ITX H110 choice for DIY AIO PCs or ultra-slim systems, with 5X Protection II for dependable stability, DDR4 support and EZ Flash 3 quick BIOS updates. 5X Protection II – Advanced hardware safeguards for all-round protection DDR4 memory compatibility Support 12V and 19V input via back-panel DC-in jack AI Suite 3: One-stop access to innovative ASUS features Fan Xpert: Dedicated CPU and case fan controls About ASUS Corporate Stable Model ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable, reliable motherboards and mini PCs for businesses of all sizes. ASUS CSM offers up to 36-month product lifecycle support and a six-month end-of-life notice to allow sufficient lead times for your organisation to get ready for product transitions. Additionally, each purchase of an ASUS CSM product comes with ASUS Control Centre Express , server-grade IT management software — a $60 value. Learn more About ASUS Control Centre Express Optimise IT endpoint management ASUS Control Centre Express (ACC Express) is a centralised platform designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely to help safeguard against potential issues. Its detailed dashboard provides real-time data to identify system failures and efficiently improve productivity, as well as perform timely asset management checking. Automate IT maintenance ASUS Control Centre Express (ACC Express) allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility. ACC Express is designed to enhance power management by setting up power caps to optimise energy usage and reduce outage risks. ACC Express also automatically notifies IT staff in the event of unusual conditions or changes to any device, allowing for faster resolution of potential issues. Securely manage all of your endpoints Security is exceptionally vital in any business environment. ASUS Control Centre Express (ACC Express) helps IT staff securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices. ACC Express prevents unauthorised system access by providing remote disablement of the Registry Editor, blocking USB storage for all nodes at once and monitoring client device status, and providing automatic reboots via watchdog programs.
