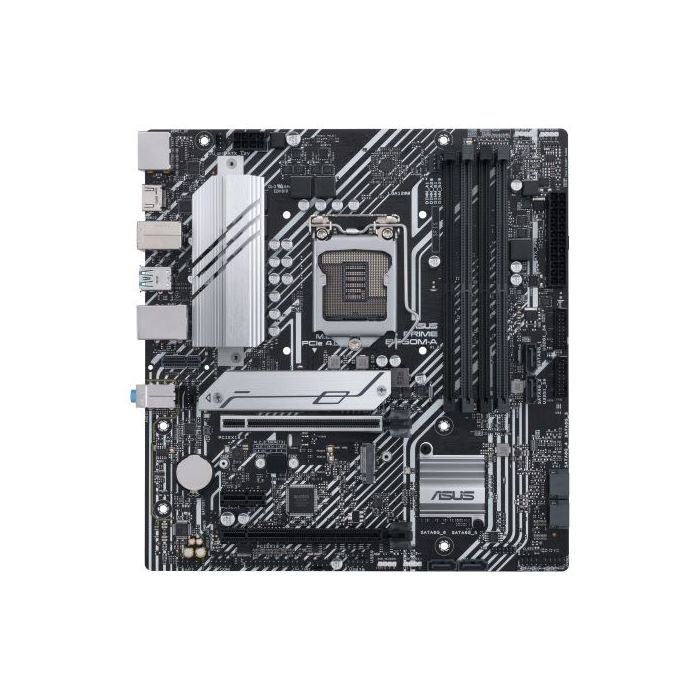

Asus PRIME B560M-A, Intel B560, 1200, Micro ATX, 4 DDR4, 2 HDMI, DP, RGB, 2x M.2

Name: Asus PRIME B560M-A, Intel B560, 1200, Micro ATX, 4 DDR4, 2 HDMI, DP, RGB, 2x M.2
Brand: Asus PRIME B560M-A, Intel B560, 1200, Micro ATX, 4 DDR4, 2 HDMI, DP, RGB, 2x M.2
SKU: SPTECH-AUMBB560MAPRIME
Price: 126.99 GBP
Availability: OutOfStock

Be the first to review this product

£126.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBB560MAPRIME

Asus PRIME B560M-A, Intel B560, 1200, Micro ATX, 4 DDR4, 2 HDMI, DP, RGB, 2x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1200
Chipset: Intel B560
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 5000(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 2 x HDMI
1 x DisplayPort
Multi-GPU Support: -
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
1 x PCIe 3.0 x1
Storage: 6 x SATA III
1 x M.2 (2242/2260/2280) - PCIe*
1 x M.2 (2242/2260/2280) - SATA & PCIe

*This slot is only active with 11th gen CPUs
RAID: -
Wireless: -
LAN: GB LAN
Audio: Realtek ALC897 7.1 Surround Sound High Definition Audio CODE
USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
4 x USB 3.2 Gen1 Type-A (at mid-board)
7 x USB 2.0 (4 at back, 3 at mid-board)"
Back Panel I/O Ports: 2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 2.0 Type-A
1 x DisplayPort
2 x HDMI
1 x Intel I219-V 1Gb
1 x V-M.2 slot (Key E)
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 slots (Key M)
6 x SATA 6Gb/s
2 x USB 3.2 Gen1
2 x USB 2.0
2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
.: 1 x COM Port
1 x Front Audio
1 x LPT header
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
Accessories: 2 x SATA 6Gb/s cables
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x Vertical M.2 Key E bracket set
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.0300 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Intel® B560 (LGA 1200), PCIe 4.0,two M.2 slots, 8 power stages, Intel® 1 Gb Ethernet, DisplayPort, dual HDMI, rear USB 3.2 Gen 2 Type-C®, V-M.2 Key E slot for Wi-Fi , Aura Sync, Addressable RGB, mATX motherboard Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™ processors Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery Comprehensive cooling: Stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ Memory overclocking: Support memory overclocking up to 5000 MHz ASUS OptiMem II: Careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability Ultrafast connectivity: PCIe 4.0, Intel® 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C®) and V-M.2 Key E slot for Wi-Fi Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime H570 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. Cool to the Core Prime B560 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. M.2 Heatsink An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. Build on a Solid Foundation Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. ASUS OptiMem II Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. Little Things Make a Big Difference Prime B560 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you've ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left and Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity.
