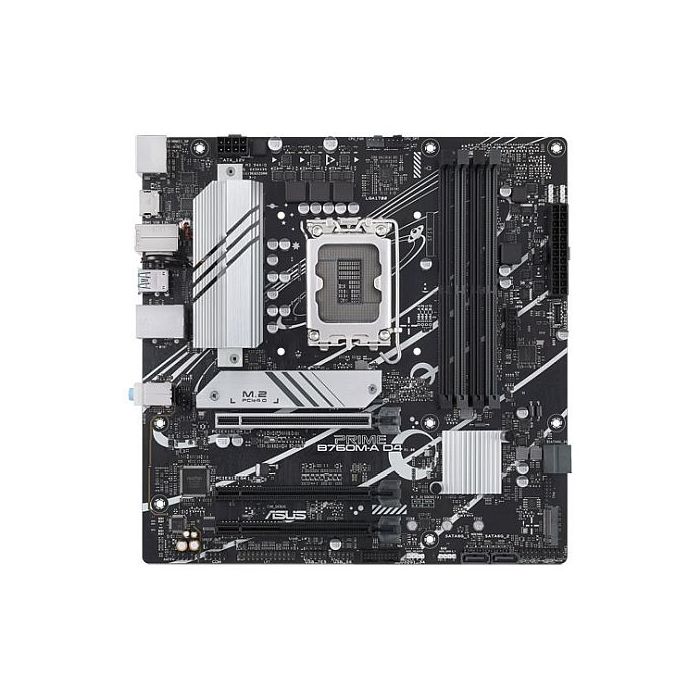

Asus PRIME B760M-A D4, Intel B760, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

Name: Asus PRIME B760M-A D4, Intel B760, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
Brand: Asus PRIME B760M-A D4, Intel B760, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
SKU: SPTECH-AUMBB760MAPRD4
Price: 49.99 GBP
Availability: OutOfStock

Be the first to review this product

£49.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBB760MAPRD4

Asus PRIME B760M-A D4, Intel B760, 1700, Micro ATX, 4 DDR4, 2 HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: Micro ATX
Socket: Intel 1700
Chipset: Intel B760
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 5333(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 2 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x16 (supports x1 mode)
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Wireless: -
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
9 x USB 2.0 (4 at back, 5 at mid-board)
1 x Front Panel Type-C USB 3.2 Gen1 Header"
Back Panel I/O Ports: 2 x USB 3.2 Gen2 Type-A
4 x USB 2.0
1 x DisplayPort
2 x HDMI
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 (Key M)
4 x SATA 6Gb/s
2 x USB 3.2 Gen1
1 x USB 3.2 Gen1 Type-C
2 x USB 2.0
1 x USB 2.0
3 x Addressable Gen2
.: 1 x Aura RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x LPT
1 x S/PDIF Out
1 x SPI TPM (14-1pin)
1 x 20-3 pin System Panel
Accessories: 2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.2000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN

More Information

More Information
Specifications	Intel® B760 (LGA 1700) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI®, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+ ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware Prime ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. Flexibility Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Cooling PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Performance The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Customization PRIME B760 series add the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Outstanding Audio Click here for full product details
