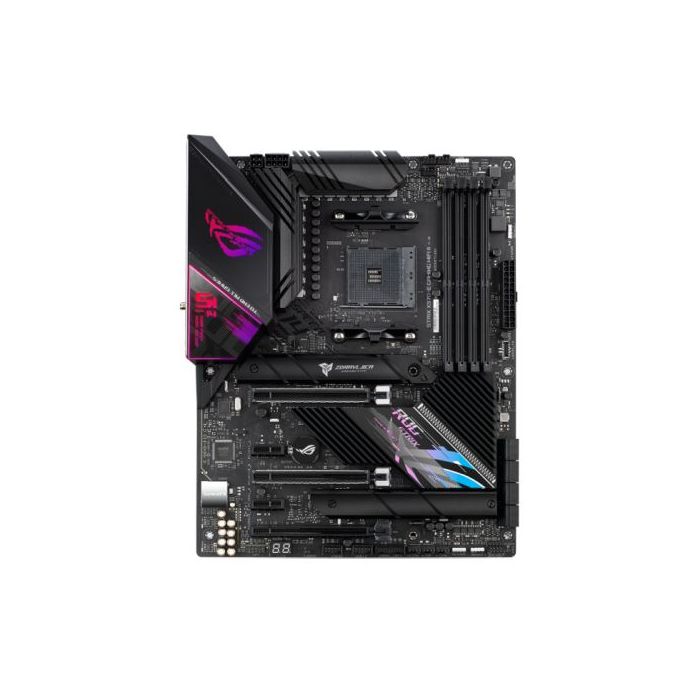

Asus ROG STRIX X570-E GAMING WIFI II, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5GB LAN, PCIe4, RGB Lighting, M.2
£359.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBX570EGAMINGSTWI2
Asus ROG STRIX X570-E GAMING WIFI II, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5GB LAN, PCIe4, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM4
- Chipset: AMD X570
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5100(O.C)
- Maximum Memory: 128GB
- Graphics: Integrated graphics
- Graphics Ports: 1 x HDMI
1 x DisplayPort - PCI/PCI Express: 2 x PCIe 4.0 x16 (x16 or dual x8)
1 x PCIe 4.0 x16 (x4)
2 x PCIe 4.0 x1 - Storage: 8 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN & GB LAN
- Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: 1 x USB 3.2 Gen2 Type-C (at back)
7 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 Type-C Front Panel Header - Back Panel I/O Ports: 8 x USB 3.2 Gen2 (7 x Type-A + 1 Type-C)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel I211-AT 1Gb Ethernet
1 x Realtek 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
2 x 4-pin Chassis Fan
1 x 4-pin M.2 Fan
1 x W_PUMP+
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
2 x M.2 slots (Key M)
8 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C - .: 1 x USB 3.2 Gen1 Type-A
2 x USB 2.0
2 x Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x Speaker
1 x 10-1 pin System Panel
1 x Thermal Sensor - Accessories: 4 x SATA 6Gb/s cables
1 x Thermistor cable pack
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Rubber Package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x Support DVD - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.1400 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications | AMD X570 ATX gaming motherboard with PCIe 4.0, 12+4 power stages, and WiFi 6E (802.11ax), Realtek 2.5 Gb Ethernet, Two-Way AI Noise Cancelation, dual M.2 with heatsinks, SATA 6 GB/s, USB 3.2 Gen 2 Type C and Aura Sync RGB lighting
The ROG Strix X570-E Gaming WiFi II motherboard delivers the quintessential ROG experience. It is bristling with features such as new passive chipset cooling, WiFi 6E, plus improved overclocking and audio performance, along with DIY-friendly conveniences to help seasoned builders and beginners alike. With futuristic aesthetics complemented by onboard RGB illumination, the Strix X570-E Gaming WiFi II motherboard has everything you need to build a formidable gaming rig that rises above the rest. All-Round Performance Comprehensive cooling, upgraded power delivery to fuel the Ryzen CPUs, and superfast data transfer provide the foundation you need to exploit the full potential of the components in your top-tier gaming build. Cooling Innovation
Power Design Digital power control and an array of power stages ensures ROG Strix X570-E Gaming MR II has the muscle to control the latest AMD Ryzen CPUs. Teamed Power Stages ROG Strix X570-E Gaming WiFi II has a CPU VRM with 12+4 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest AMD processors demand. Alloy Chokes And Durable Capacitors Superior chokes and durable capacitors are engineered to resist extreme temperatures and provide up to 110, better performance than the industry standard. Procool II Power Connector ProCool II = Wets are built to tight specifications to ensure flush contact with the PSU power lines and have a metal armour for improved heat dissipation. The connector, lower impedance helps prevent hotspots and improves reliability. DIGI+ Power Control The built-in Digi+ voltage-regulator module (VRM) is one of the finest in the industry, ensuring ultra-smooth and clean power delivery to the CPU. 6-Layer PCB The PCB design quickly dissipates heat around the VRM to improve overall system stability and provide the CPU with more overclocking headroom. Dual PCIe 4.0 M.2 Dual PCIe 4.0 M.2 slots that are compatible with the 22110 socket provide maximum storage flexibility and the fastest data speeds available with the AMD Zen 3 platform. The slots also offer NVM Express RAID support ASUS OptiMem II The ROG Strix X570-E Gaming WiFi II supports up to 128 GB DDR4 memory across four slots. OptiMem II technology improves trace layout to significantly reduce vias and crosstalk, enhancing memory stability and compatibility while giving memory kits higher frequency margins. Dynamic OC Switcher Dynamic OC Switcher gives Ryzen processors newfound agility to crush multi-threaded workloads and slice through single-threaded apps. Simply configure a manual overclock for heavy tasks and then select a current threshold for Dynamic OC Switcher to automatically flip between your profile and AMD Precision Boost Overdrive (PBO). Immersive Gaming Get deeper into the game with buffed networking for smoother online play and customizable audio that amplifies every detail and intelligently banishes unwanted noise. WiFi 6E Onboard WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It delivers ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments. Realtek 2.5Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost, with up to a 2.5X improvement over standard Ethernet connections for faster file transfers, smoother lag-free gaming and high-res video streaming. ROG SUPREMEFX Built-in ROG SupremeFX audio technology ensures pristine audio. Along with ensuring a flat frequency response for a neutral, detailed sound signature, it offers two front-panel outputs driven by op amps that deliver high-quality audio to gaming headsets. Two-Way AI Noise Cancellation This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed so you can hear and be heard with perfect clarity while gaming or during calls. Play In Style Pair the ROG Strix X570-E Gaming WiFi II with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style. Undeniably ROG STRIX The ROG Strix X570-E Gaming WiFi II boasts striking aesthetics with a pixelated ROG logo and cyber text across the VRM cover, as well as diagonal grooves that cut across the chipset heatsink and motherboard. Together, they combine to create a motherboard that’s distinctively ROG. Outshine The Competition ASUS Aura Sync ROG Strix motherboards deliver sterling performance, accented by aesthetics to Outshine the Competition. ASUS Aura offers full RGB lighting control with a variety of functional pre-sets for the built-in RGB LEDs as well as strips connected to the onboard RGB header - and it can all be synced with an ever-growing portfolio of Aura-capable ASUS hardware. ROG Gives You More ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. The highly acclaimed AIDA64 utility is also included to give you a hand with system setup and performance tuning. 5-Way Optimization Take care of complex tuning with just one click. ASUS 5-Way Optimization is a system-wide tuning utility that overclocks the processor and tunes fan speeds to ensure the best balance between cooling and acoustics. CPU-Performance Boost The TurboV Processing Unit (TPU) is an intelligent onboard micro-controller that provides an array of system-tuning features, including the ability to fine-tune voltages, monitor system stats and adjust overclocking parameters. Sonic Studio III Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset. DTS: Sound Unbound ROG Strix X570 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space - putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment. AIDA64 Extreme ROG Strix X570-E Gaming WiFi II includes a 60-day AIDA64 Extreme subscription. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers. |
|---|
