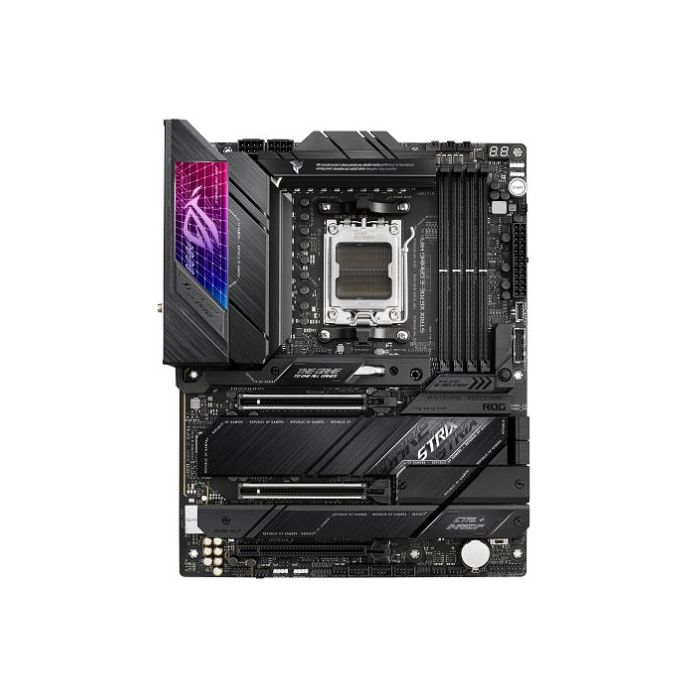

Asus ROG STRIX X670E-E GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Name: Asus ROG STRIX X670E-E GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
Brand: Asus ROG STRIX X670E-E GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
SKU: SPTECH-AUMBX670EESTWI
Price: 434.99 GBP
Availability: OutOfStock

Be the first to review this product

£434.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBX670EESTWI

Asus ROG STRIX X670E-E GAMING WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM5
Chipset: AMD X670
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 MHz
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 2 x PCIe 5.0 x16 (supports x16 or x8/x4 modes)
1 x PCIe 4.0 x16 (supports x4 mode)
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-C (at back)
10 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
6 x USB 2.0 (at mid-board)
1 x Front USB 3.2 Gen2x2 Type-C connector
Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 (Type-C)
12 x USB 3.2 Gen2 (10 Type-A, 2 Type-C)
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button "
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
5 x 4-pin Chassis Fan
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 (USB Type-C)
1 x USB 3.2 Gen1
3 x USB 2.0
3 x Addressable Gen2
.: 1 x AURA RGB
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio (AAFP)
1 x Start button
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt
Accessories: 2 x SATA 6Gb/s cables
1 x Thermal pad for M.2
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x Massive PCIe 5.0 M.2 Bundled Heatsink
1 x M.2 Q-Latch package for M.2 backplate
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
2 x Rubber Packages for M.2
1 x Rubber Package for M.2 backplate
1 x ROG key chain
1 x ROG Strix sticker
.: 1 x ROG Strix thank you card
1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 3.0000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	The ROG Strix X670E-E Gaming WiFi is perched at the top of the series, packing robust power delivery and exclusive ROG overclocking tools to max out the stats of AMD Ryzen™ 7000 Series processors. PCIe 5.0 support extends to the furthest reaches of chipset capabilities, and an additional beefy heatsink is prepped to keep even the fastest M.2 drives chilled. With leading performance, the latest connectivity, and DIY-friendly features that span from hardware installation to system setup, this Strix beast grips AM5 and effortlessly soars to victory. Power Stages - 18 + 2 teamed power solution rated for 110A per stage Overclocking Technologies - Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance AI Cooling II - AI Cooling II uniquely balances noise and thermals for your system with a single click PCIe 5.0 - Both x16 slots and three on-board M.2 slots are PCIe Gen 5-ready DDR5 - 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP DIY Friendly - Easy installation for GPUs and SSDs, plus simple BIOS resets and updates WiFi 6E - Faster-than-Gigabit WiFi that unlocks access to the low-interference 6 GHz band Massive M.2 Heatsink - Bonus accessory takes M.2 cooling to the next level All-Round Performance From power delivery, to PCIe 5.0 support, I/O, and on-board cooling, the Strix X670E-E fully flexes AM5 and infuses AMD Ryzen™ 7000 Series processors with additional agility to plough through every task. Leading Connectivity The ROG Strix X670E-E Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents. Play In Style A bold and balanced aesthetic ties together elements from the ROG Strix lineup and then subtly increases contrast with bright accents, visible silver components, and a splash of RGB. Pair the ROG Strix X670E-E with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style. Software Utilities ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. Click here for full product details
