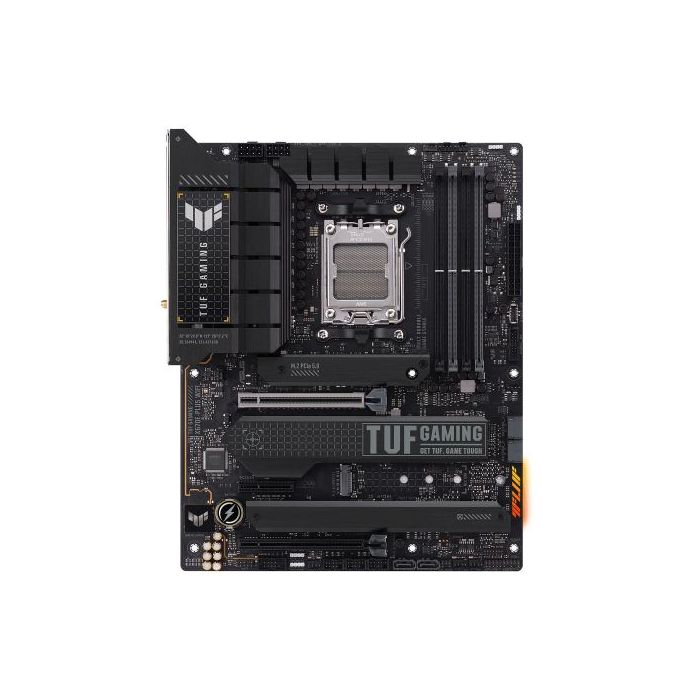

Asus TUF GAMING X670E-PLUS WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Name: Asus TUF GAMING X670E-PLUS WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
Brand: Asus TUF GAMING X670E-PLUS WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2
SKU: SPTECH-AUMBX670EPLTUFWI
Price: 349.99 GBP
Availability: OutOfStock

Be the first to review this product

£349.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBX670EPLTUFWI

Asus TUF GAMING X670E-PLUS WIFI, AMD X670, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM5
Chipset: AMD X670
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6400+(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (supports x4 mode)
1 x PCIe 4.0 x4
Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10
Wireless: Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
3 x USB 3.2 Gen2 Type-A (at back)
7 x USB 3.2 Gen1 Type-A (5 at back, 2 at mid-board)
6 x USB 2.0 (at mid-board)
1 x Front USB 3.2 Gen2 Type-C connector"
Back Panel I/O Ports: "1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen2 (3 Type-A, 1 Type-C)
5 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet
5 x Audio jacks
1 x BIOS FlashBack button"
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x W_PUMP+
1 x 24-pin Main
2 x 8-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
3 x USB 2.0
.: 3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thermal Sensor
1 x Thunderbolt
Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antenna
2 x Rubber packages for M.2
2 x Screw packages for M.2 SSD
1 x TUF certification card
1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.3000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series. Power stages - 14+2 teamed power stages (rated 70A) with enlarged VRM heatsinks PCIe - PCIe® 5.0 for graphics cards and M.2 storage Memory module support - DDR5 memory module support Connectivity - USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header Ethernet - 2.5 Gb Ethernet WiFi - WiFi 6E Core Flex and Dynamic OC Switcher - AI Overclocking, Core Flex and Dynamic OC Switcher AI Cooling II Two-Way AI Noise Cancelation Intelligent Control Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING X670E motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING X670E-PLUS WIFI is the perfect foundation for your next high-core-count AMD battle rig. Easy PC DIY The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs. Immersive Gaming TUF GAMING X670E motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere. Click here for full product details
