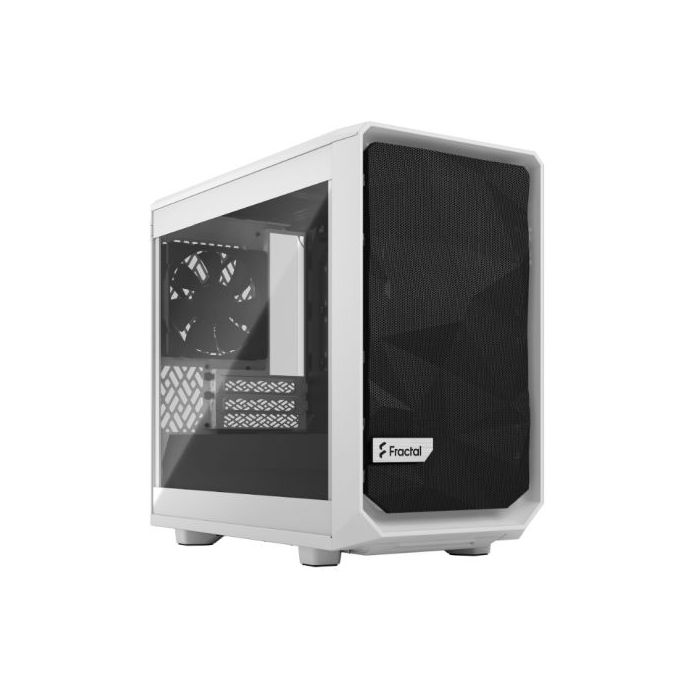

Fractal Design Meshify 2 Nano White TG Gaming Case w/ Clear Glass Window, Mini ITX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support

Name: Fractal Design Meshify 2 Nano White TG Gaming Case w/ Clear Glass Window, Mini ITX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support
Brand: Fractal Design Meshify 2 Nano White TG Gaming Case w/ Clear Glass Window, Mini ITX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support
SKU: SPTECH-CAI-FRME2NACTG-W
Price: 109.99 GBP
Availability: OutOfStock

Be the first to review this product

£109.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-CAI-FRME2NACTG-W

Fractal Design Meshify 2 Nano White TG Gaming Case w/ Clear Glass Window, Mini ITX, Angular Mesh, USB-C, 331mm GPU & 280mm Radiator Support

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: Mini ITX
#Hide#Small Form Factor: Yes (SFF)
Power Supply Wattage: No PSU
Motherboard Support: "Mini ITX, Mini DTX"
#Hide#Window(s): Yes (Window)
Connectors / Controls: 1 x USB 3.1 Gen 2 Type-C
2 x USB 3.0
Audio I/O
Power button
Reset button
Drive Bays: 3.5""/2.5"" drive mounts: 1 (included)
Dedicated 2.5"" drive mounts: 3 (2 included)
Expansion Slots: 2 Expansion slots
Cooling System: Included
Front: 1 x Dynamic X2 GP-14 140mm fan
Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts
Front: 2 x 120 / 2 x 140 mm
Top: 2 x 120 / 1 x 140 mm slim (max 15mm thick)
Rear: 1 x 120 mm
Bottom: N/A
.: "
Radiator options:
Front: Up to 280 mm*
Top: Up to 240 mm (max 38mm RAM/CPU pump block with 121mm wide radiator)
Rear: 120 mm
Bottom: N/A

*316 mm max height, 146 mm max width, 280 recommended in ""push"" configuration for easier fit"
Colour: White
Material: Left side panel: Tempered glass
Right side panel: Steel
Compatability: GFX Card length:
331 mm
306 mm with front fan

Max CPU Cooler:
167 mm

Max PSU length:
165 mm recommended
(200 mm without HDD-tray and air guides)
Weight/Dimensions: 5.9 kg
(LxWxH) 396 x 205 x 361 mm
w/o feet/protrusions/screws: 384 x 205 x 345 mm
Additional Features: See Overview
Accessories: User manual
Accessory box
Package Weight: 7.1000 kg
Warranty: 2 Years

More Information

More Information
Specifications	*A classic evolved.* The Meshify 2 Nano offers small form-factor enthusiasts plenty of scope for creative builds through excellent radiator support for its size while accommodating a GPU of up to 331 mm. The flexible design and angular asymmetry are complemented by a flush TG panel and a fully removable top. It is a textbook example of what you should expect from a modern small form-factor case. Compact yet spacious interior accommodates all Mini ITX motherboards Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic Open interior layout creates a smooth airflow path from front intake to rear exhaust Room for GPUs up to 306 mm long including front fans with 331 mm total space Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism Fully removable top panel and a top fan bracket that opens to provide excellent interior access and easy cable routing Double layered front filter with detachable nylon for increased airflow Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging and speeds up to 10Gbps Front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts Flexible storage option supporting one 3.5” drive and three 2.5’’ drives Install up to 5x 120 mm or 3x 140 mm fans Pre-installed Dynamic X2 1x 120 mm and 1x 140 mm fans ensure smooth airflow with minimal noise Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access Bridgeless PCI expansion slots ensure obstruction-free connections for easier installation and hookup Ventilated PSU shroud with two-part Modular Air Duct for increased GPU airflow and radiator support Integrated cable guides with velcro straps further simplify cable management behind the board
