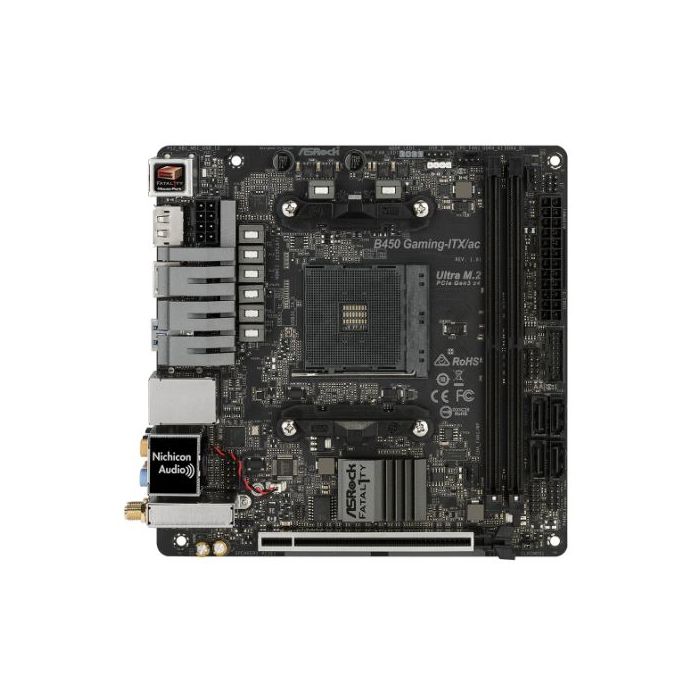

Asrock B450 GAMING-ITX/AC, AMD B450, AM4, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, RGB Lighting, M.2
£101.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBB450GAMING-ITX
Asrock B450 GAMING-ITX/AC, AMD B450, AM4, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: AMD AM4
- Chipset: AMD B450
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHz
- Maximum Memory: 32GB
- Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Graphics Ports: 1 x HDMI
1 x DisplayPort 1.2 - Multi-GPU Support: -
- PCI/PCI Express: Summit & Pinnacle Ridge Ryzen CPUs:
1 x PCIe 3.0 x16
Raven Ridge Ryzen CPUs:
1 x PCIe 3.0 x16 - PCI: -
- Storage: 4 x SATA III
1 x Ultra M.2 (2280) - SATA & PCIe - RAID: "RAID 0, 1, 10 "
- Wireless: Intel 802.11ac WiFi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 433Mbps
Supports Bluetooth 4.2 - LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- USB Ports Supported: "2 x USB 3.1 Gen2 (Type A & C at back)
4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)" - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.2
1 x Optical SPDIF Out
2 x USB 2.0
1 x USB 3.1 Gen2 Type-A
1 x USB 3.1 Gen2 Type-C
2 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x LPC
1 x Addressable LED
1 x AMD Fan LED
1 x CPU Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x AMD LED Fan USB
1 x USB 2.0
1 x USB 3.1 Gen1 - Accessories: Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas
1 x Screw for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.9540 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications |
AMD StoreMI Technology A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast, but expensive, and offer minimal capacity. Mechanical hard drives boast large capacity for a low price, but are much slower than an SSD. AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds: SSD responsiveness, and mechanical hard disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data. Rule your own Lighting Way - Polychrome RGB In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Creative Sound Blaster Cinema 5 A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers. Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3) The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Dual USB 3.1 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Intel® LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! 2oz Copper It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking. PCIe Steel Slot The advanced PCI-E Steel Slot packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slot safely. F-Stream ASRock partners with Fatal1ty to incorporate a design philosophy and features most desired by top tier gears. F-Stream is an all-in-1, multi-purpose tuning program that supports overclocking, hard-ware tuning such as energy usage, H/W monitor, fan speed control and so on. Super Alloy Motherboard Premium Power Choke Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dual-N MOSFET Combining two silicon dies into one MOSFET, Dual-N MOSFET provides larger die area and lower Rds(on), so the power supply for the CPU Vcore is more efficient. Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. Gaming Armor Power
Memory
VGA Card
Internet
Audio
Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Fatal1ty Mouse Port After plugging a USB mouse into the Fatal1ty Mouse Port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125 Hz to 1000 Hz. Gold Audio Jacks Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission! Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
