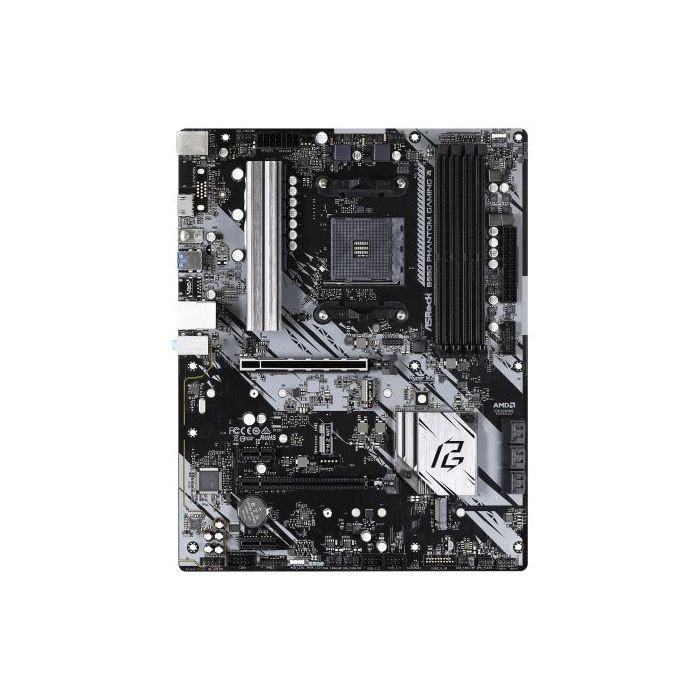

Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2

Name: Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
Brand: Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2
SKU: SPTECH-ASMBB550PGAMING4
Price: 87.99 GBP
Availability: OutOfStock

Be the first to review this product

£87.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBB550PGAMING4

Asrock B550 PHANTOM GAMING 4, AMD B550, AM4, ATX, 4 DDR4, HDMI, XFire, PCIe4, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD B550
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Maximum Memory: 128GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
Multi-GPU Support: Supports AMD Quad CrossFireX and CrossFireX
PCI/PCI Express: 2 x PCIe 4.0 x16
2 x PCIe 3.0 x1
Storage: 6 x SATA III
1 x M.2 (2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: -
LAN: GB LAN
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
USB Ports Supported: "8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
4 x USB 2.0 (mid-board)"
Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
6 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks
Internal I/O Connectors: 1 x COM Port
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V
1 x Front Audio
.: 2 x USB 2.0
1 x USB 3.2 Gen1
Accessories: 2 x SATA Data Cables
3 x Screw for M.2 Socket
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.3500 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers! Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors 8 Power Phase Design, Digi Power Supports DDR4 4733+ (OC) 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi Graphics Output Options: HDMI AMD CrossFireX™ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3) 8 USB 3.2 Gen1 (2 Front, 6 Rear) Gigabit LAN Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. 8 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. 2oz Copper PCB 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! Polychrome RGB Sync-certified This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Dual M.2 For SSD, Supports Type 22110 M.2 Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include: - Extra anchor points - Stronger latch - Ensure signal stability - Make sure heavy graphics cards to be well-installed. Post Status Checker An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
