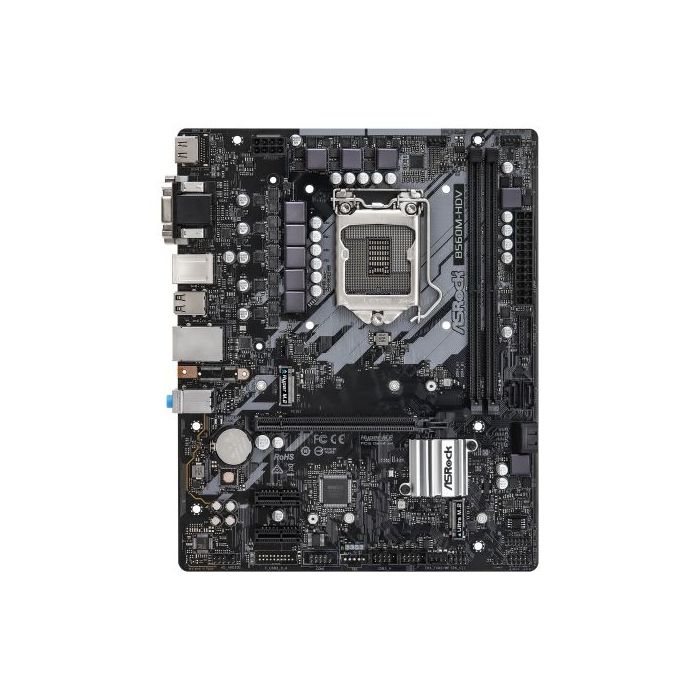

Asrock B560M-HDV, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, 2x M.2
£78.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBB560MHDV
Asrock B560M-HDV, Intel B560, 1200, Micro ATX, 2 DDR4, VGA, DVI, HDMI, 2x M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1200
- Chipset: Intel B560
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 5000+(OC)
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16
2 x PCIe 3.0 x1 - Storage: 4 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe - RAID: -
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)" - Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
4 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: 2 x SATA Data Cables
2 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.8600 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
Premium 50A Power Choke ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Clever Access Memory Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance. Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. Intel LAN Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users! PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution. HDMI 4k @60Hz Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
Super Alloy Motherboard Premium 50A Power Choke Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
