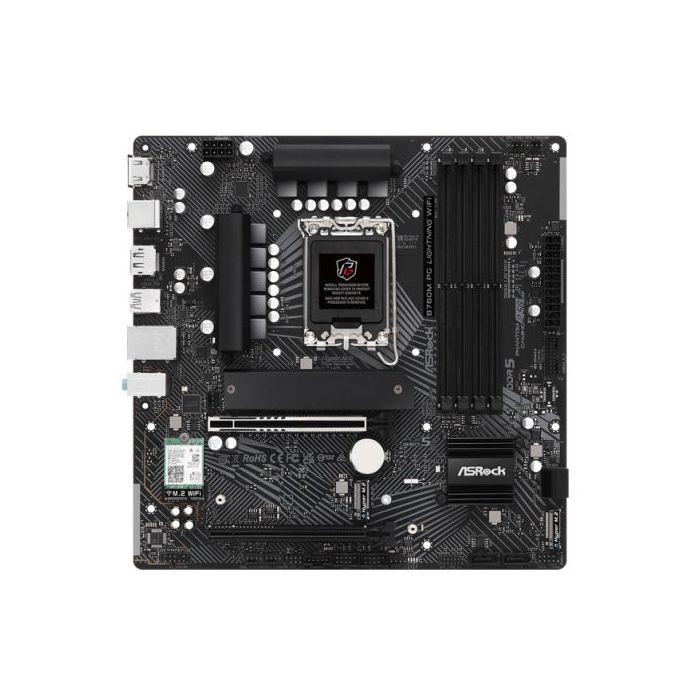

Asrock B760M PG LIGHTNING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2
£125.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBB760MPGLIGTNINGWIFI
Asrock B760M PG LIGHTNING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Intel 1700
- Chipset: Intel B760
- #Hide#DDR Type: DDR5
- CPU Support: Click here for CPU support
- RAM Technology: "DDR5 (Dual Channel)
Supports DDR5 non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) 3.0" - RAM Slots: 4 x DIMM
- RAM Speeds: Up to 7200+(OC)
- Maximum Memory: 192GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: Supports AMD CrossFire
- PCI/PCI Express: 1 x PCIe 5.0 x16 (supports x16 mode)
1 x PCIe 3.0 x16 (supports x4 mode) - Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4
1 x M.2 (2280) - PCIe 4.0 x4 - RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices"
- Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 with extended 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.3 + High speed class II
Supports MU-MIMO - LAN: 2.5GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: Rear:
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
Front:
2 x USB 3.2 Gen1 Type-A
4 x USB 2.0 - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C
3 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Panel Audio
1 x Thunderbolt AIC
2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x SMA WiFi Antenna Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
1 x Plastic Cover for Wi-Fi Module
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket - Additional Features: See Overview
- Package Type: Retail
- Package Weight: To be confirmed
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications | B760M PG Lightning WiFi
Optimized VRM Design Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers. The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance! Intelligent Cooling Design Aluminum Heatsink The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly. ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements. DDR5 XMP & EXPO Support Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with low-loss materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all. PCIe 5.0 + Surface-Mount Tech Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards. Nahimic Audio Reinforced Steel Slot [PCIe 5.0 Version] The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include: - Extra anchor points - Stronger latch - Ensure signal stability - Make sure heavy graphics cards to be well-installed. Audio That Matters Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue. Sound Tracker The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Works on any devices! Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience. High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Dragon 2.5 Gb/S LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. Wireless Networking Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
|
|---|
