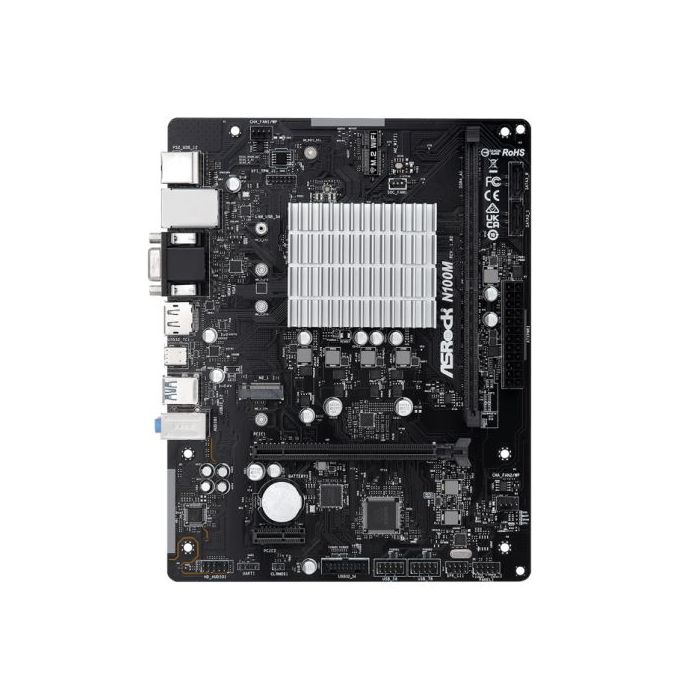

Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, Fanless Design, 1x M.2
£113.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBN100M
Asrock N100M, Integrated Intel Quad-Core N100, Micro ATX, 1 DDR4, VGA, HDMI, DP, Fanless Design, 1x M.2
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: Embedded CPU
- CPU: Intel Quad-Core Processor N100 (Up to 3.4 GHz)
- #Hide#DDR Type: DDR4
- CPU Support: N/A (Integrated CPU)
- RAM Technology: "DDR4 non-ECC, un-buffered"
- RAM Slots: 1 x DIMM
- RAM Speeds: Up to 3200MHz
- Maximum Memory: 32GB
- Graphics: Integrated Intel UHD Graphics
24 EUs inside (Up to 750MHz) - Graphics Ports: 1 x VGA
1 x HDMI
1 x DiisplayPort - PCI/PCI Express: 1 x PCIe 3.0 x16 (supports x2 mode)
1 x PCIe 3.0 x1 - Storage: 2 x SATA III
1 x M.2 (2242/2260/2280) - PCIe 3.0 x2 - Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: Rear:
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0
Front:
2 x USB 3.2 Gen1
4 x USB 2.0 - Back Panel I/O Ports: 2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard
1 x D-Sub
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen1
4 x USB 2.0
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x Chassis Intrusion and Speaker
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x Front Panel Audio
2 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: 1 x User Manual
1 x I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.0700 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications | N100M
Intel® Alder Lake-N N100 Processor The newest Intel® N100 processor, built on the Gracemont CPU microarchitecture using the Intel® 7 process, features 4 E-cores with a turbo frequency of 3.4GHz and Intel® UHD Graphics with 24 EUs. It is suitable for affordable, entry-level computing. 3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Fanless Design The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment. AV1 Decoding + 4K Supports 10-bit HEVC & VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60Hz. USB 3.2 Gen1 Type-C USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included. Auto Driver Installer No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD. step1: Install Auto Driver Installer step2: Update drivers needed step3: Done!
|
|---|
