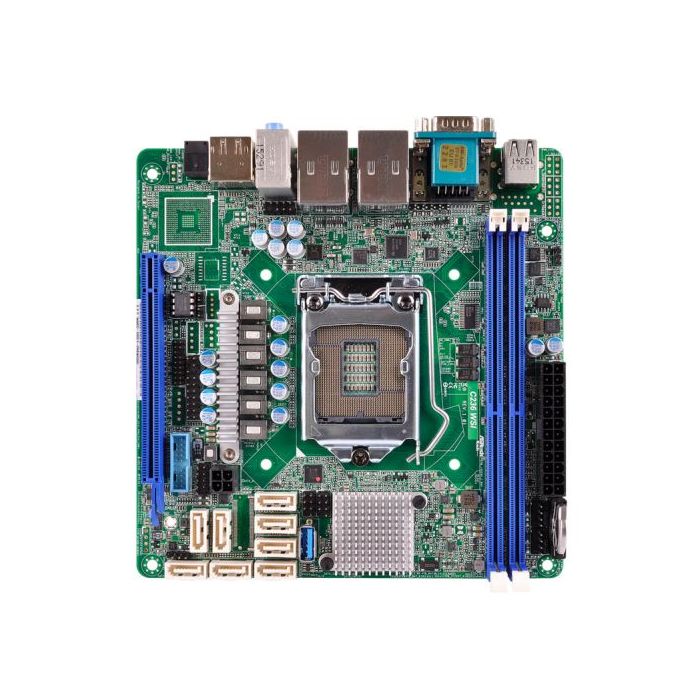

Asrock Rack C236 WSI Server Board, Intel C236, 1151, Mini ITX, DDR4, Dual GB LAN, Serial Port
£168.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ARMBC236WSI
Asrock Rack C236 WSI Server Board, Intel C236, 1151, Mini ITX, DDR4, Dual GB LAN, Serial Port
- Motherboard Type: Server / Workstation
- Form Factor: Mini ITX
- Socket: Intel 1151 - Sky/Kaby Lake
- Chipset: Intel C236
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2133 MHz
- Maximum Memory: 32GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x 16
- PCI: -
- Storage: 8 x SATA III
- RAID: -
- Wireless: -
- LAN: Dual GB LAN
- Audio: Realtek ALC1150
- USB Ports Supported: "6 x USB 3.0 ports (4 at back, 2 at mid-board)
1 x Type A USB 3.0 Port (mid-board)
2 x USB 2.0 ports (2 at back)" - Back Panel I/O Ports: 1 x HDMI
1 x VGA Port
2 x USB 2.0 Port
4 x USB 3.0 Por
2 x GB LAN(by Intel i210+ Intel i219)
1 x Serial Port
1 x Display Port
3 x Audio Jacks
1 x SPDIF - Internal I/O Connectors: 1 x HDMI_SPDIF
1 x Auxiliary Panel
1 x TR1
1 x TPM
2 x Fan Header(
1 x 24-pin ATX
1 x 4-pin ATX
1 x USB 3.0 Header
1 x Type A USB 3.0 Port
1 x NMI Button
1 x Front Panel
1 x HD Audio - .: 1 x Speaker
2 x SGPIO
1 x ME/SPS Recovery
1 x Clear CMOS - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.9020 kg
- Warranty: 3 Years
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
