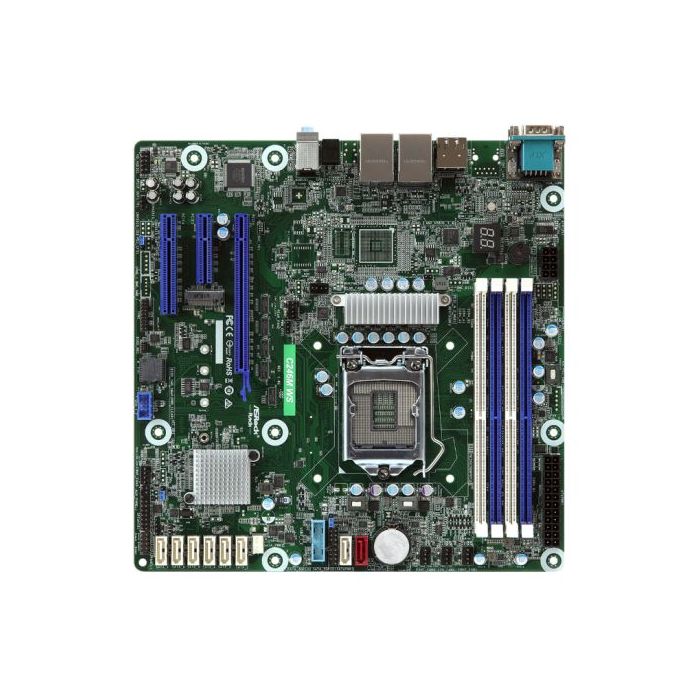

Asrock Rack C246M WS Server Board, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual GB LAN, Serial Port
£247.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ARMBC246MWS
Asrock Rack C246M WS Server Board, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual GB LAN, Serial Port
- Motherboard Type: Server / Workstation
- Form Factor: Micro ATX
- Socket: Intel 1151 - Coffee Lake
- Chipset: Intel C246
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2666/2400 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI/PCI Express: "PCIe 3.0 x 16 - SLOT6: Gen3 x16 link, auto switch to x8 link if SLOT4 is occupied
PCIe 3.0 x 8 - SLOT4: Gen3 x8 link
PCIe 3.0 x 4 - SLOT5: Gen3 x4 link" - Storage: 8 x SATA III
1 x M.2 (2230/2242/2260/2280_ - SATA & PCIe - Wireless: -
- LAN: Dual GB LAN
- USB Ports Supported: 4 x USB 3.1 Gen 2 Type-A (at back)
2 x USB 3.1 Gen 1 (at mid-board)
2 x USB 2.0 ports (at mid-board) - Back Panel I/O Ports: 1 x HDMI
1 x VGA Port
4 x USB 3.1 Gen2 Port
2 x RJ45
1 x Serial Port
1 x Display Port
Audio Jacks
1 x SPDIF - Internal I/O Connectors: 1 x SATA DOM (share with M.2)
1 x M.2
1 x Auxiliary Panel
1 x TR1
1 x TPM
1 x IPMI
1 x Buzzer
6 x Fan
1x (24-pin) + 1x (8-pin) ATX Power
1 x USB 3.1 (Gen1)
1 x USB 2.0
1 x Front Panel - .: 1 x Speaker
1 x Dr. Debug with LED - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.0700 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: GB LAN
