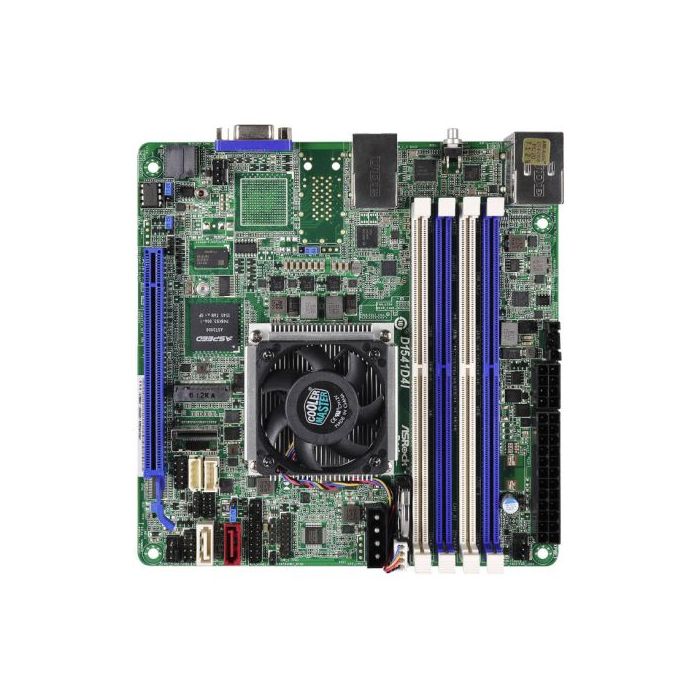

Asrock Rack D1541D4I Server Board, Integrated Xeon D1541 CPU, Mini ITX, VGA, Dual GB LAN, Serial Port, IPMI LAN, M.2
£858.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ARMBD1541D4I
Asrock Rack D1541D4I Server Board, Integrated Xeon D1541 CPU, Mini ITX, VGA, Dual GB LAN, Serial Port, IPMI LAN, M.2
- Motherboard Type: Server / Workstation
- Form Factor: Mini ITX
- Socket: Embedded CPU
- CPU: Integrated Intel Xeon D1541 Processor
8-Core
2.10GHz ( 2.7 Turbo) - #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: "Non-ECC UDIMM: 1600, 1866, 2133, 2400MHz
ECC UDIMM: 1600, 1866, 2133, 2400MHz
RDIMM: 1600, 1866, 2133, 2400MHz" - Maximum Memory: 128GB
- Graphics: ASPEED AST2400
DDR3 16MB SDRAM - Graphics Ports: 1 x VGA
- Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x 16
- Storage: " 6 x SATA3 III (4 port from mini SAS, 1 supports SATA DOM)
1 x M.2 (2242/2280) - PCIe" - Wireless: -
- LAN: Dual GB LAN & Dedicated IPMI LAN port
- USB Ports Supported: 2 x USB 3.1 Gen1 ports (at back)
- Back Panel I/O Ports: 1 x VGA
2 x USB 3.1 Gen1
2 x GB LAN
1 x UID Button/UID LED - Internal I/O Connectors: 1 x COM
1 x Auxiliary Panel
1 x TPM
1 x IPMB
4 x Fan (1CPU/2Front/1Rear)
1 x ATX (24-pin)
1 x DC IN (8pin 12V) - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.0000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
|
|---|
