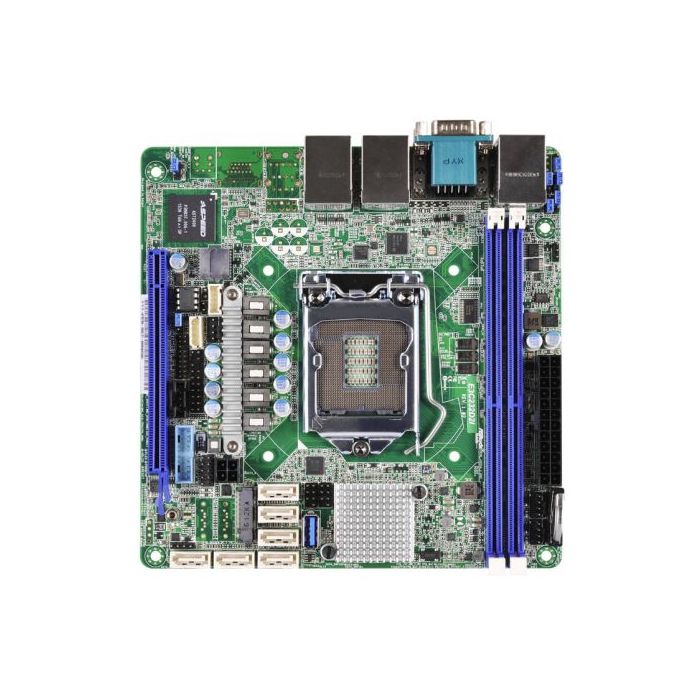

Asrock Rack E3C232D2I Server Board, Intel C232, 1151, Mini ITX, DDR4, VGA, Dual GB LAN, IPMI LAN, Serial Port, M.2
£194.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ARMBE3C232D2I
Asrock Rack E3C232D2I Server Board, Intel C232, 1151, Mini ITX, DDR4, VGA, Dual GB LAN, IPMI LAN, Serial Port, M.2
- Motherboard Type: Server / Workstation
- Form Factor: Mini ITX
- Socket: Intel 1151 - Sky/Kaby Lake
- Chipset: Intel C232
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 ECC (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 2400*/2133/1866/1600 MHz
*Only E3-1200 v6 CPUs can support DDR4 2400 - Maximum Memory: 32GB
- Graphics: ASPEED AST2400
DDR3 256MB (ASPEED) - Graphics Ports: 1 x VGA
- Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x 16
- Storage: 6 x SATA III (SATA0 share with M.2 connector)
1 x M.2 - RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: Dual GB LAN & Dedicated IPMI LAN port
- USB Ports Supported: "6 x USB 3.1 Gen 1 ports (4 at back, 2 at mid-board)
3 x USB 2.0 ports (2 at back, 1 internal)" - Back Panel I/O Ports: 1 x VGA
2 x USB 2.0
4 x USB 3.1 Gen1
2 x GB LAN
1 x RJ45 Dedicated IPMI LAN
1 x Serial - Internal I/O Connectors: 1 x M.2
1 x Auxiliary Panel
1 x TR1
1 x TPM
1 x IPMB
3 x Fan (CPU/Front/Rear)
1x (24-pin) + 1x (4-pin)
1 x USB 3.1 (Gen1)
1 x Type A USB 2.0 Port
1 x PSU SMB
1 x NMI Button
1 x Speaker - .: 2 x SGPIO
1 x PECI
3 x PMBUS Mode Jumpers
1 x SMBUS from BMC
1 x ME/SPS Recovery
1 x Clear CMOS - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.7660 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
|
|---|
