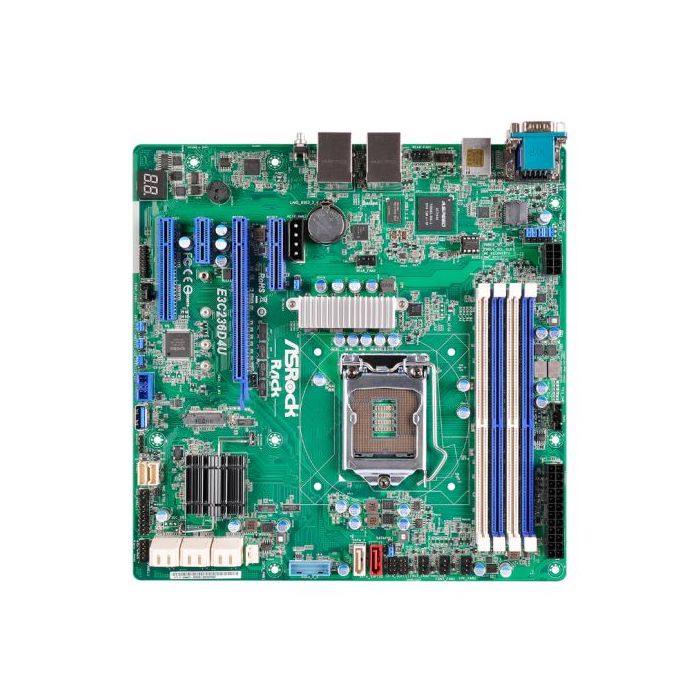

Asrock Rack E3C236D4U Server Board, Intel C236, 1151, Micro ATX, DDR4, Dual GB LAN, IPMI LAN, Serial Port
£214.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ARMBE3C236D4U
Asrock Rack E3C236D4U Server Board, Intel C236, 1151, Micro ATX, DDR4, Dual GB LAN, IPMI LAN, Serial Port
- Motherboard Type: Server / Workstation
- Form Factor: Micro ATX
- Socket: Intel 1151 - Sky/Kaby Lake
- Chipset: Intel C236
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2133/1866/1600 MHz
- Maximum Memory: 64GB
- Graphics: ASPEED AST2400
DDR3 16MB - Graphics Ports: 1 x VGA
- Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 3.0 x 16
1 x PCIe 3.0 x 8
1 x PCIe 3.0 x 4
1 x PCIe 3.0 x 1 - PCI: -
- Storage: 8 x SATA III
- RAID: "RAID 0,1,5,10"
- Wireless: -
- LAN: Dual GB LAN & Mgmt LAN Port
- USB Ports Supported: "6 x USB 3.0 ports (4 at back, 2 at mid-board)
1 x Type A USB 3.0 Port (mid-board)
2 x USB 2.0 ports (mid-board)" - Back Panel I/O Ports: 1 x VGA Port
4 x USB 3.0 Ports
2 x GB LAN(by Intel i210)
1 X Serial Port
1 X UID Button/UID LED - Internal I/O Connectors: 1 x COM Port Header
1 x SATA DOM
1 x M.2
1 x Auxiliary Panel Heade
1 x TPM Header
1 x IPMB Header
1 x Buzzer
4 x Fan Header
ATX Power - 24-pin + 8-pin
1 x USB 3.0 Header
1 x USB 2.0 Header
1 x Type A USB 3.0 Port - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.2000 kg
- Warranty: 3 Years
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
|
|---|
