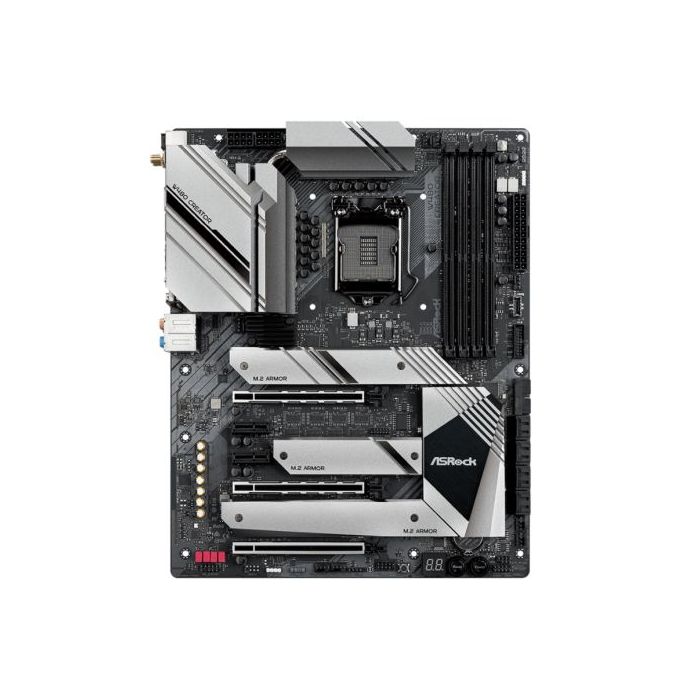

Asrock W480 CREATOR, Intel W480, 1200 Xeon W CPUs, ATX, HDMI, XFire, Thunderbolt3, AX Wi-Fi, 10GB & 2.5GB LAN, M.2

Name: Asrock W480 CREATOR, Intel W480, 1200 Xeon W CPUs, ATX, HDMI, XFire, Thunderbolt3, AX Wi-Fi, 10GB & 2.5GB LAN, M.2
Brand: Asrock W480 CREATOR, Intel W480, 1200 Xeon W CPUs, ATX, HDMI, XFire, Thunderbolt3, AX Wi-Fi, 10GB & 2.5GB LAN, M.2
SKU: SPTECH-ASMBW480CREATOR
Price: 202.99 GBP
Availability: OutOfStock

Be the first to review this product

£202.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBW480CREATOR

Asrock W480 CREATOR, Intel W480, 1200 Xeon W CPUs, ATX, HDMI, XFire, Thunderbolt3, AX Wi-Fi, 10GB & 2.5GB LAN, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: ATX
Socket: Intel 1200
Chipset: Intel W480
#Hide#DDR Type: DDR4
CPU Support: "Supports 10th Gen and future generation Intel Core Processors
Supports Xeon W Processors (WE3/WE2/WE1), up to 10 Cores and 125W

Click here for CPU support list"
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 600+(OC)* / 4500 / 4400 / 4333/4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
Maximum Memory: 128GB
Graphics: Supports Intel HD Graphics
Graphics Ports: 1 x HDMI
Multi-GPU Support: Supports AMD Quad CrossFireX
PCI/PCI Express: 3 x PCIe 3.0 x16
2 x PCIe 2.0 x1
Storage: 8 x SATA III
1 x M.2 (2260/2280) - PCIe
1 x M.2 (2260/2280) - SATA & PCIe
1 x M.2 (2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 5, 10, Intel Rapid Storage Tech 17"
Wireless: Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports WiFi6 802.11ax (2.4Gbps)
2 antennas
Supports Bluetooth 5.1
Supports MU-MIMO
LAN: 10GB LAN & 2.5GB LAN
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported: "2 x USB 3.2 Gen2 Thunderbolt3 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)
1 x USB 2.0 (at mid-board)
1 x Front Panel Type C USB 3.2 Gen2 Header"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB 3.2 Gen2 Thunderbolt 3 Type-C
2 x Mini DisplayPort Input
3 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
3 x USB 3.2 Gen1
2 x RJ-45 LAN
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
2 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
6 x Chassis/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 2.0
.: 2 x USB 3.2 Gen1
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Front Panel Type C USB 3.2 Gen2 Header
Accessories: 4 x SATA Data Cables
1 x ASRock WiFi 2.4/5 GHz Antenna
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.4800 kg
Warranty: 3 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 10GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	For Content Creators Supports 10th Gen and future generation Intel® Core™ Processors / Xeon® W Processors (WE3/WE2/WE1)(Socket 1200) Supports DDR4 4600MHz+ (OC) 3 PCIe 3.0 x16, 2 PCIe 2.0 x1 8 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 2 Ultra M.2 (PCIe Gen3 x4 & SATA3) 2 Intel® Thunderbolt™ 3 Type-C 5 USB 3.2 Gen2 10Gb/s (Front : 1 Type-C, Rear : 1 Type-C, 3 Type-A) 8 USB 3.2 Gen1 (4 Front, 4 Rear) 7.1 CH HD Audio (Realtek ALC1220 Audio Codec) ESS SABRE 9218 DAC (130dB SNR) + WIMA Audio Caps AQUANTIA® 10 Gigabit LAN + Intel® 2.5 Gigabit LAN Wi-Fi 6 802.11ax (2.4Gbps) ASRock 10th Gen Intel Core/Xeon W480 Creator ATX Motherboard A Motherboard Designed for Content Creators Creating content should be a pleasure, thats why ASRock crafted the W480 Creator from premium components and cutting-edge tech, this entire motherboard was designed to streamline your workflow giving you high-tier performance and durability boasting support for both 10th Generation Core intel and also Xeon W processors, server grade ECC memory modules that deliver outstanding performance and durability for high-end computing systems and also offers full support for NVIDIA QUADRO professional graphics cards designed specifically for you creatives. With the W480 Creators sturdy updated power phase design, premium chokes and aluminium alloy M.2 armour, Wi-Fi 6 and Type-C connectivity you have the cutting-edge technology you need to support you as you blow your chosen audience away. Graphics Cards For Professionals Nvidia Quadro Professional Graphics The W480 Creator boasts full support for NVIDIA QUADRO professional graphics cards, which are designed specifically for artists, designers, 3D animators etc. granting you true firepower for any kind of content creation. XXL Aluminium Alloy Heatsinks & M.2 Armour Effective Heat Dissipation ASRock know that durability and reliability is key when working with professional content creation, the W480 Creator features a huge aluminium alloy heatsink and heatpipe that effectively remove heat from the MOSFET helping to keep your system stable. The M.2 Armour is also built from an aluminium alloy to effectively dissipate heat from your storage devices allowing you to run high speed SSDs without worrying about overheating or throttling.
