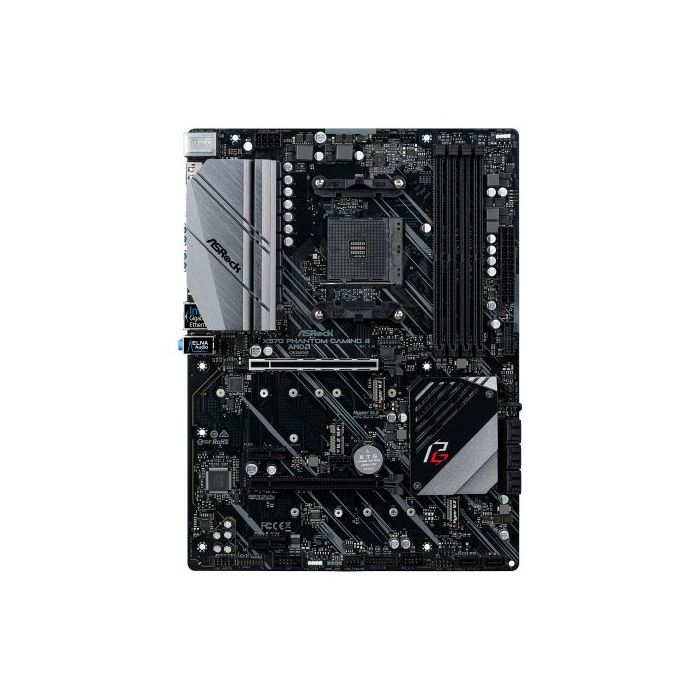

Asrock X570 PHANTOM GAMING 4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2
£154.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBX570PHANTOMG4
Asrock X570 PHANTOM GAMING 4, AMD X570, AM4, ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM4
- Chipset: AMD X570
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: AMD Ryzen series CPUs (Matisse)
4066+(OC)/3466(OC)/3200/2933/2667/2400/2133
AMD Ryzen series CPUs (Pinnacle Ridge)
3466+(OC)/3200(OC)/2933/2667/2400/2133
AMD Ryzen series CPUs (Picasso)
3466+(OC)/3200(OC)/2933/ 2667/2400/2133 - Maximum Memory: 128GB
- Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Graphics Ports: 1 x HDMI
1 x DisplayPort 1.2 - Multi-GPU Support: Supports AMD Quad CrossFireX
- PCI/PCI Express: AMD Ryzen series CPUs (Matisse)
2 x PCI Express 4.0 x16 Slots
AMD Ryzen series CPUs (Pinnacle Ridge)
2 x PCI Express 3.0 x16 Slots
AMD Ryzen series CPUs (Picasso)
2 x PCI Express 3.0 x16 Slots - Storage: 8 x SATA III
1 x Hyper M.2 (2230/2242/2260/2280/22110) - PCIe
1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- USB Ports Supported: "2 x USB 3.2 Gen2 Type-A (at back)
10 x USB 3.2 Gen1 (6 at back, 4 at mid-board)
2 x USB 2.0 (at mid-board)" - Back Panel I/O Ports: 3 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.2
2 x USB 3.2 Gen2 Type-A
6 x USB 3.2 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Front Panel I/O Ports: 1 x COM Port
1 x SPI TPM
1 x Power LED and Speaker
2 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
3 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x AMD LED Fan USB - Internal I/O Connectors: 1 x Thunderbolt AIC
1 x USB 2.0
2 x USB 3.2 Gen1 - Accessories: "Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.7500 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
| Specifications |
Steel Slot with New-Gen PCI Express 4.0 The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Dual Hyper M.2 For SSD Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Rule your own Lighting Way ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. I/O Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Post Status Checker An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem. 2 x USB3.2 Gen2 Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience. Super Alloy Motherboard XXL Aluminum Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. Premium 50A Power Choke Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. ELNA Audio Caps Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles. M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. Super Alloy Motherboard.
|
|---|
