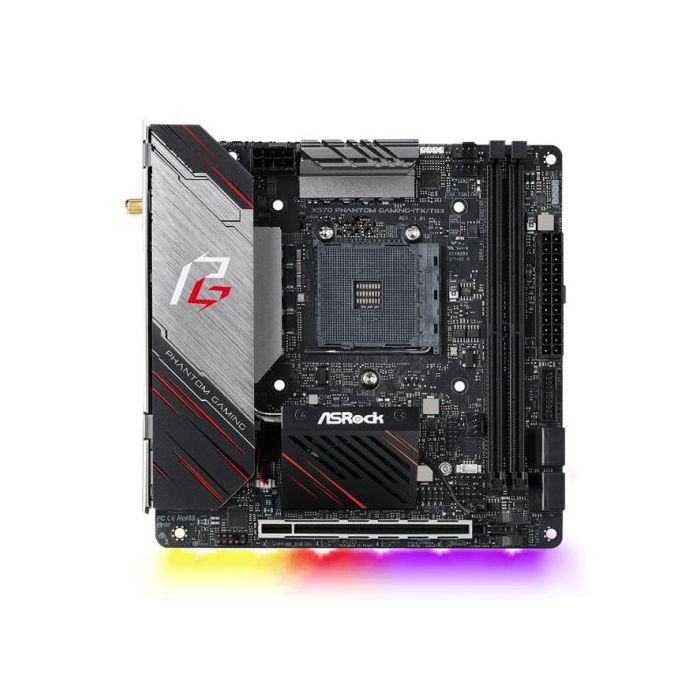

Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX, HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, Thunderbolt 3
£239.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBX570PHANTOMG-ITX
Asrock X570 PHANTOM GAMING-ITX/TB3, AMD X570, AM4, Mini ITX, HDMI, DP, Wi-Fi, PCIe4, RGB Lighting, Thunderbolt 3
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: AMD AM4
- Chipset: AMD X570
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: AMD Ryzen series CPUs (Matisse)
533+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200/2933/2667/2400/2133 MHz
AMD Ryzen series CPUs (Pinnacle Ridge)
3600+(OC) / 3466(OC) / 3200(OC) / 2933/2667/2400/2133 MHz
AMD Ryzen series CPUs (Picasso)
3466+(OC) / 3200(OC) / 2933/2667/2400/2133 MHz - Maximum Memory: 64GB
- Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Graphics Ports: 1 x HDMI
1 x DisplayPort 1.4 - Multi-GPU Support: -
- PCI/PCI Express: AMD Ryzen series CPUs (Matisse):
1 x PCIe 4.0 x16
AMD Ryzen series CPUs (Pinnacle Ridge):
1 x PCIe 3.0 x16
AMD Ryzen series CPUs (Picasso):
1 x PCIe 3.0 x16 - Storage: 4 x SATA III
1 x Hyper M.2 (2280) - PCIe - RAID: "RAID 0, 1, 10"
- Wireless: Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports WiFi6 802.11ax (2.4Gbps)
2 antennas
Supports Bluetooth 5.0 + High speed class II
Supports MU-MIMO - LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- USB Ports Supported: "2 x USB 3.2 Gen2 Type-A & C (at back)
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
2 x USB 2.0 (at mid-board)" - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x DisplayPort 1.4 Input
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x Clear CMOS Button
HD Audio Jacks - Internal I/O Connectors: 1 x SPI TPM
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1 - Accessories: "Quick Installation Guide, Support CD
2 x SATA Data Cables
1 x ASRock WiFi 2.4/5 GHz Antenna
1 x Screw for M.2 Socket" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.2900 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications |
10 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Thunderbolt™ 3 Technology Thunderbolt™ 3 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects up to 3 Thunderbolt™ 3 devices with a single wire, and even provides quick charging with 5V@3A (15W). Just experience the world's fastest connectivity with Thunderbolt™ ready motherboards! Wi-Fi 6 802.11ax Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. Steel Slot with Next Gen PCI4 Express The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. Rule your own Lighting Way - Polychrome RGB ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well LGA 115X Mounting hole A special design that uses Intel® LGA 115X mounting holes instead of AMD retention bracket. Super Alloy Motherboard Premium 60A Power Choke Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
