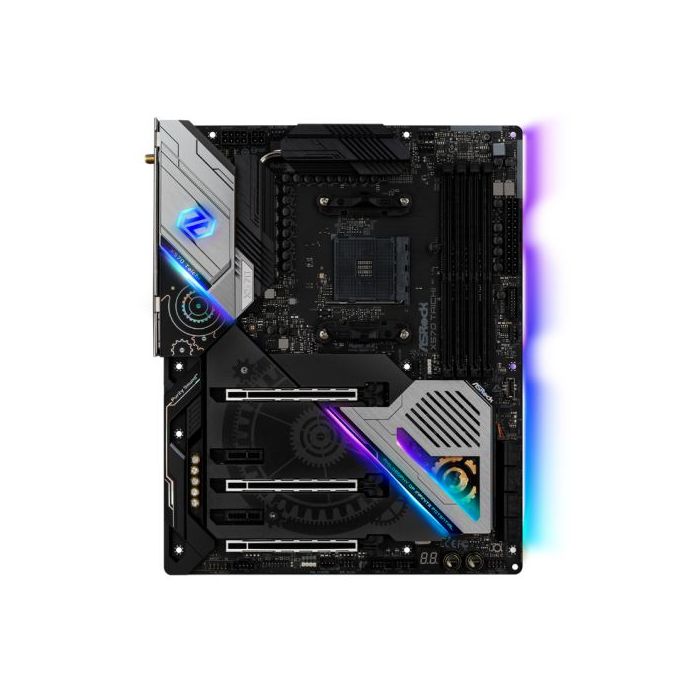

Asrock X570 TAICHI, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, PCIe4, RGB Lighting, M.2
£296.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBX570TAICHI
Asrock X570 TAICHI, AMD X570, AM4, ATX, 4 DDR4, HDMI, SLI/XFire, Wi-Fi, PCIe4, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: AMD AM4
- Chipset: AMD X570
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- Graphics Ports: 1 x HDMI
- Multi-GPU Support: Supports AMD Quad CrossFireX
Supports NVIDIA Quad SLI
Supports NVIDIA NVLink - PCI/PCI Express: AMD Ryzen series CPUs:
3 x PCIe 4.0 x16
AMD Ryzen Pinnacle Ridge CPUs:
3 x PCIe x16 Slots
AMD Ryzen Raven Ridge CPUs:
1 x PCIe 3.0 x16
1 x PCIe 4.0 x16 - Storage: 8 x SATA III
1 x Hyper M.2 (2242/2260/2280) - SATA & PCIe
1 x Hyper M.2 (2260/2280) - PCIe
1 x Hyper M.2 (2230/2242/2260/2280/22110) - SATA & PCIe - RAID: "RAID 0, 1, 10 "
- Wireless: Intel 802.11ax WiFi Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band (2.4/5 GHz)
Supports wireless connections up to 2.4Gbps
2 antennas (2 (Transmit) x 2 (Receive))
Supports Bluetooth 5.0 + High speed class II
Supports MU-MIMO - LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- USB Ports Supported: "2 x USB 3.2 Gen2 Type-A & C (at back)
8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x Front Panel Type C USB 3.2 Gen2 Header" - Back Panel I/O Ports: 2 x Antenna
1 x PS/2 Mouse/Keyboard
1 x HDMI
1 x Optical SPDIF Out
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen2 Type-C
6 x USB 3.2 Gen1
1 x RJ-45 LAN
1 x Clear CMOS Button
1 x BIOS Flashback Button
HD Audio Jacks - Front Panel I/O Ports: 1 x TPM
1 x SPI TPM
1 x Power LED and Speaker
1 x AMD Fan LED
1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x 4 pin 12V - Internal I/O Connectors: 1 x Front Audio
1 x AMD LED Fan USB
1 x Thunderbolt AIC
2 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
1 x Clear CMOS Button - Accessories: "Quick Installation Guide, Support CD
4 x SATA Data Cables
1 x ASRock SLI_HB_Bridge_2S Card
1 x ASRock WiFi 2.4/5 GHz Antenna
1 x ASRock Screwdriver
3 x Screws for M.2 Sockets
3 x Standoffs for M.2 Sockets" - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 3.1000 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
Specifications |
Wi-Fi 6 802.11ax Welcome to the new Wi-Fi standard! ASRock’s motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4Ghz and 5Ghz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well. Steel Slot with New-Gen PCI Express 4.0 The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock’s exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely. Unbeatable Heatsink Armor with Hyper M.2 Forged with aluminum alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next generation PCI Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation. Rule your own Lighting Way ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well. Flexible Integrated I/O Shield Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue. Metal Backplate Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability. 14 Power Phase Design Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. Dr. MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance. Dual USB 3.2 Gen2 (Type-A + Type-C) This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. Front USB 3.2 Gen1 Type-C Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. Premium 60A Power Choke ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. BIOS Flashback Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required. Super Alloy Motherboard XXL Aluminium Alloy Heatsink Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable. Premium 60A Power Choke Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Dr. MOS Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability. Premium Memory Alloy Choke Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules. Combo Caps A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores. Nichicon 12K Black Caps Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability. I/O Armor A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity. Matte Black PCB A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards. High Density Glass Fabric PCB High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. Purity Sound 4 It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
---|
