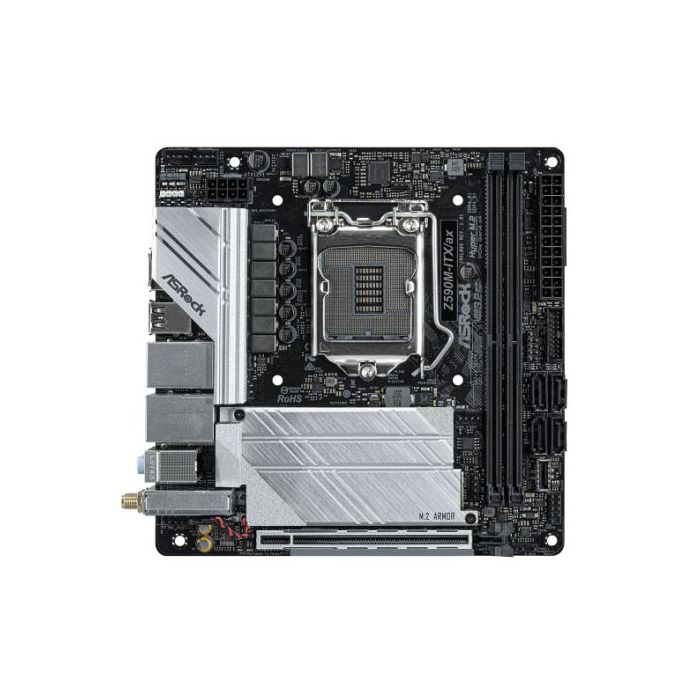

Asrock Z590M ITX/AX, Intel Z590, 1200, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, GB & 2.5G LAN, 1x M.2
£197.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-ASMBZ590MITXAX
Asrock Z590M ITX/AX, Intel Z590, 1200, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, GB & 2.5G LAN, 1x M.2
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Intel 1200
- Chipset: Intel Z590
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: up to 5066+(OC)
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort 1.4 - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16
- Storage: 4 x SATA III
1 x M.2 (2280) - PCIe
1 x M.2 (2280) - SATA & PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: Intel 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz w/ ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth 5.2
Supports MU-MIMO - LAN: 2.5GB LAN & GB LAN
- Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
4 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at back)
2 x USB 2.0 (at mid-board)
1 x Front Panel Type C USB 3.2 Gen2 Header - Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x DisplayPort 1.4
1 x USB 3.2 Gen2x2 Type-C
4 x USB 3.2 Gen2 Type-A
1 x USB 2.0
2 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x RGB LED
1 x Addressable LED
1 x CPU Fan
1 x Chassis Fan
1 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
1 x USB 2.0
1 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2 Header - Accessories: 2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
2 x Screws for M.2 Sockets - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 0.9670 kg
- Warranty: 3 Year Replacement Warranty
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications |
Dr.MOS Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. Premium 60A Power Choke Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Base Frequency Boost (BFB) Technology Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock's selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately. While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig. PCIe 4.0 High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience. Wi-Fi 6E 802.11ax WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks. Dragon 2.5 Gb/s LAN The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups. USB 3.2 Gen2x2 Type-C The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way. Reinforced Steel Slot [PCIe 4.0 Version] The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
Front USB 3.2 Gen2 Type-C Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case. RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. Nahimic Audio Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. Water Pump Header This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise. Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. Live Update & APP Shop ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop. |
|---|
