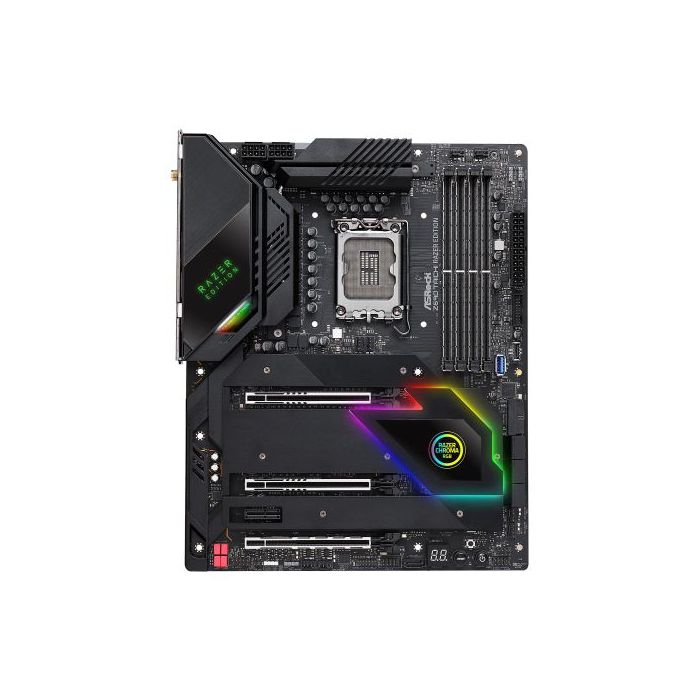

Asrock Z690 TAICHI RAZER Edition, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5G LAN, PCIe5, Razer Chroma RGB, 3x M.2

Name: Asrock Z690 TAICHI RAZER Edition, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5G LAN, PCIe5, Razer Chroma RGB, 3x M.2
Brand: Asrock Z690 TAICHI RAZER Edition, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5G LAN, PCIe5, Razer Chroma RGB, 3x M.2
SKU: SPTECH-ASMBZ690TAICHIRAZER
Price: 312.99 GBP
Availability: OutOfStock

Be the first to review this product

£312.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-ASMBZ690TAICHIRAZER

Asrock Z690 TAICHI RAZER Edition, Intel Z690, 1700, ATX, 4 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5G LAN, PCIe5, Razer Chroma RGB, 3x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel Z690
#Hide#DDR Type: DDR5
CPU Support: Click here for CPU support
RAM Technology: DDR5 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 6400+(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
2 x USB 4.0 Thunderbolt 4 Type-C
Multi-GPU Support: Supports AMD CrossFire
PCI/PCI Express: 2 x PCIe 5.0 x16
1 x PCIe 4.0 x16
1 x PCIe 3.0 x1
Storage: 6 x SATA III
1 x Independent SATA III Connector
1 x M.2 (2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2230/2242/2260/2280) - SATA & PCIe
RAID: "Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices"
Wireless: 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz w/ ext 6GHz band support
2 antennas - 2 (Transmit) x 2 (Receive) diversity tech
Supports Bluetooth + High speed class II
Supports MU-MIMO
Supports Killer DoubleShot Pro X3
Supports Intel® Double Connect Technology
LAN: 2.5GB LAN & GB LAN
Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
USB Ports Supported: "2 x Thunderbolt 4 USB Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
8 x USB 3.2 Gen1 Type-A (4 at back, 4 at mid-board)
3 x USB 2.0 (at mid-board)
1 x Independent USB 3.2 Gen1 Type-A connector
1 x Front Panel Type-C USB 3.2 Gen2x2 Header"
Back Panel I/O Ports: 2 x Antenna
1 x HDMI
1 x Optical SPDIF Out
2 x USB 3.2 Gen2 Type-A
2 x USB 4.0 Thunderbolt 4 Type-C
4 x USB 3.2 Gen1 Type-A
2 x RJ-45 LAN
1 x BIOS Flashback Button
HD Audio Jacks
Internal I/O Connectors: 1 x SPI TPM
1 x Power LED and Speaker
1 x RGB LED
3 x Addressable LED
1 x CPU Fan
2 x CPU/Water Pump Fan
4 x Chassis/Water Pump Fan
1 x VRM/Water Pump Fan
1 x 24 pin ATX
2 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
.: 1 x Independent USB 3.2 Gen1 Type-A
2 x USB 3.2 Gen1
1 x Front Panel Type C USB 3.2 Gen2x2
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Accessories: "Quick Installation Guide, Support CD
4 x SATA Data Cables
1 x Graphics Card Holder
1 x Wireless Dongle USB Bracket
1 x 3010 Cooling Fan w/ Bracket & Screw Package
1 x 4010 Cooling Fan Bracket & Screw Package
1 x ASRock WiFi 2.4/5/6 GHz Antenna
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket"
Additional Features: See Overview / Video
Package Type: Retail
Package Weight: 3.2100 kg
Warranty: 2 Year Replacement Warranty
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)
#Hide#RGB Lighting: Out of the box RGB lighting

More Information

More Information
Specifications	The COOLEST flagship motherboard, ASRock Taichi, stands out for its incredible OC performance and premium specification. Here comes the new version, Taichi - Razer Edition The worlds first motherboard natively integrated with Razer Chroma RGB lighting It is the ultimate control center for all things Chroma RGB, and enables universal compatibility with thousands of ARGB components directly into the ecosystem. Supports 12th Gen Intel® Core™ Processors (LGA1700) 20 Phase SPS Dr.MOS Power Design Supports DDR5 6400MHz (OC) 2 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x1 Graphics Output Options: HDMI, 2 Thunderbolt™ Type-C Realtek ALC1220 7.1 CH HD Audio Codec, ESS SABRE 9218 DAC, WIMA Audio Caps 6 SATA3, 1 Independent SATA3 2 Hyper M.2 (PCIe Gen4 x4) 1 M.2 (PCIe Gen3 x2 & SATA3) 2 Thunderbolt™ 4/USB4 Type-C 1 USB 3.2 Gen2x2 Front Type-C 2 USB 3.2 Gen2 (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 1 Independent USB 3.2 Gen1 Type A Port Killer E3100 2.5G LAN, Intel® Gigabit LAN Killer AX1690 802.11ax (WiFi 6E) + Bluetooth Killer DoubleShot™ Pro X3 Intel® Double Connect Technology Razer Synapse Razer Chroma Razer Synapse allows you to customize the lighting on your motherboard and other Addressable RGB (ARGB) devices connected to the motherboard’s headers. To set up, follow these steps: Plug your ARGB LED strips or devices to any of the 3-pin 5V ARGB headers on the motherboard. Download Razer Synapse from razer.com/synapse then install and login. Use Razer Synapse to access in-depth lighting customization options; and integrate games and applications across your ARGB and Razer Chroma-enabled devices for a truly immersive experience. ASRock Z690 Taichi Razer Edition Killer Ethernet E3100 and Killer WiFi 6E AX1690, designed specifically for competitive gamers and performance-hungry users, prioritize real time packets over other packets and offer an uninterrupted online entertainment experience. Killer DoubleShot Pro X3 enables massive throughput and unbeatable online performance for systems that have both the Killer AX1690 and Killer Ethernet products. It enables your computer to get the aggregated throughput of all interfaces (Ethernet, 2.4GHz Wi-Fi and 5/6GHz Wi-Fi), and critical traffic (games) will be sent over the optimal interface intelligently. Click here for full product details
