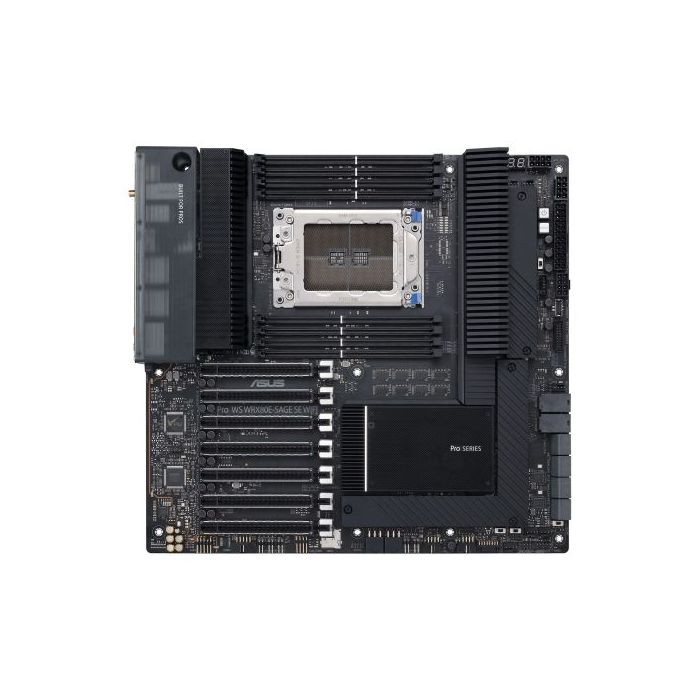

Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2

Name: Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2
Brand: Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2
SKU: SPTECH-AUMBWRX80EWSPROSAGESEWI
Price: 885.99 GBP
Availability: OutOfStock

Be the first to review this product

£885.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBWRX80EWSPROSAGESEWI

Asus PRO WS WRX80E-SAGE SE WIFI, Workstation, AMD WRX80, sWRX8, EATX, 8 DDR4, XFire/SLI, AX Wi-Fi, Dual 10G LAN, 3x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: ATX
Socket: AMD WRX8
Chipset: AMD WRX80
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Eight Channel)
RAM Slots: 8 x DIMM
RAM Speeds: "3200/3000/2933/2800/2666/2400/2133 MHz

ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory"
Maximum Memory: 2048GB
Graphics: -
Graphics Ports: -
Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
PCI/PCI Express: 7 x PCIe 4.0/3.0 x16*

* Support PCIe bandwidth bifurcation for RAID on CPU function
Storage: "8 x SATA III
3 x M.2 (2242/2260/2280/22110) - SATA & PCIe
2 x U.2 - supports U.2 NVMe device and up to 4 SATA devices*

*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately*
"
RAID: "RIAD 0, 1, 10"
Wireless: Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1
LAN: Dual 10GB LAN
Audio: Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: 1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-C (at back)
8 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 Type-A (at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2 Type-C front panel connector
Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
9 x USB 3.2 Gen2 (8 x Type-A + 1 x Type-C)
1 x ASUS Wi-Fi Module
2 x Intel X550-AT2 dual 10Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
6 x 4-pin Chassis Fan
1 x VRM heatsink Fan
1 x Chipset Fan
1 x 24-pin Main
2 x 8-pin +12V
2 x 6-pin PCIe Graphics Card
1 x 8-pin PCIe
3 x M.2 (Key M)
8 x SATA 6Gb/s
2 x U.2
.: 1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card
2 x LAN LED
1 x Location LED
1 x Location button
.: 1 x PSU_SMB
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C
1 x COM Port
1 x FlexKey button
1 x Front Audio
1 x SPI TPM (14-1pin)
1 x Start button
1 x 20-3 pin System Panel w/ Chassis intrude function
1 x RTC Battery
1 x Thermal Sensor
Accessories: 6 x SATA cables
1 x VGA cable
1 x ASUS 2x2 Dual-Band Wi-Fi antennas
1 x Hyper M.2 X16 Gen 4 Card
3 x M.2 Rubber Packages
3 x M.2 SSD screw packages
1 x Q-connector
1 x Support DVD
1 x User manual
Additional Features: See Overview
Package Type: Retail
Package Weight: 4.8000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 10GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security Ultimate power for professional productivity ASUS Pro WS WRX80E-SAGE SE WIFI is engineered to unleash the incredible power of the latest AMD Ryzen Threadripper Pro series processors and is a reliable foundation for professional creative workloads that benefit from multi-core CPUs, such as video editing and 3D rendering. Additionally, seven PCIe 4.0 slots with SafeSlot fortification deliver exceptional performance with the latest high-power graphics cards. Low-profile professionalism With metallic black aluminum extrusions, stainless steel black mesh with highlighted details, and a transparent smoky gray I/O cover, Pro WS WRX80E-SAGE SE WIFI presents a professional, low-profile look for content creators. Ultrafast Connectivity to Power Creativity 3 M.2 PCIe 4.0 Pro WS WRX80E-SAGE SE WIFI includes three M.2 and two U.2 slots wired to PCIe 4.0 x4 bandwidth. Creators working with massive video files can RAID together multiple NVMe devices for massive I/O bandwidth and seamless playback in their editing bays. These three slots rest under dedicated heatsinks to prevent SSD throttling under heavy loads. More storage With NVMe RAID support for Ryzen Threadripper PRO processors, unused CPU PCIe 4.0 lanes can be assigned to storage, allowing you to create a bootable RAID array with multiple M.2 SSDs to provide incredible throughput - up to 8x faster than individual PCIe 3.0 x4 SSDs. RAID can also be configured with PCIe 3.0 SSDs. ECC memory support AMD Ryzen Threadripper PRO processors offer unrivaled memory bandwidth and supports 8 memory channels, up to 2048 GB. It supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure your creativity consistency and stability. Intel WiFi 6 The Intel WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Ultrafast Connectivity Delivers Creativity ASMB9-iKVM for remote management An integrated BMC (Baseboard Management Controller) is a key feature for workstations. It uses an Intel X550 dual 10 Gigabit Ethernet controller, with one port dedicated to the BMC to provide the intelligence for its IPMI architecture. The BMC manages the interface between system-management software and platform hardware. Administrators can remotely communicate with the BMC to take some corrective actions - such as resetting or power cycling a system. 6-pin Power connectors Two additional PCIe 6-pin power connectors can add power output stability when creators use many graphic cards onboard. Thorough Thermal Design Actively cooled heatsink The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path. The custom low-noise fan features a high-durability bearing with a 60,000-hour L10* lifespan. M.2 heatsinks Three M.2 slots are covered by heatsinks to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads. Side-mounted connectors Unique side-mounted connectors on the front-panel of the chassis keep cables away from the graphics cards and provide cleaner routing, easier management and a streamlined installation process. Pre-mounted I/O shield The patented I/O shield is finished in sleek matte black and comes pre-mounted for easy installation on the motherboard and is designed to allow air flow to keep the heat away from the board. BIOS Flashback Users can place a BIOS file onto a FAT32-formatted USB drive and simply plug it into the USB BIOS FlashBack port and press a button to update the (UEFI) BIOS. Updates can be made even if memory or CPU aren't present. DIY Friendly Immersive Audio experience The Realtek ALC4080 audio codec features high quality 120 dB SNR stereo playback output and 113 dB SNR recording input to offer pristine audio quality and is supported by EMI shielding and separate PCB layers for the left and right channels to maintain signal integrity. Additionally, DTS:X Ultra technology enables louder, immersive 3D spatial audio. Power pre-regulator Reduces power-input noise to ensure consistent performance. Audio shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Integrated amplifier Capable of driving high-impedance headphones, without rolling-off high or low frequencies. Separate layer for left and right tracks Ensures minimal crosstalk between audio paths. De-pop circuit Reduces start-up popping noise to all audio outputs. Premium Japanese-made audio capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Trusted Stability for Reliability Solid compatibility validation Pro WS WRX80E-SAGE SE WIFI has been extensively tested and validated under various environments and applications for compatibility and reliability. Protect your graphics card SafeSlot is a PCIe slot reengineered by ASUS to provide optimized attachment and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot fortifies the slot with metal for enhanced strength and durability. 24/7 reliability Optimized for around-the-clock operations, Pro WS WRX80E-SAGE SE WIFI is tested under temperatures of up to 45 C and humidity of up to 80% in order to ensure it can thrive in different environments.
