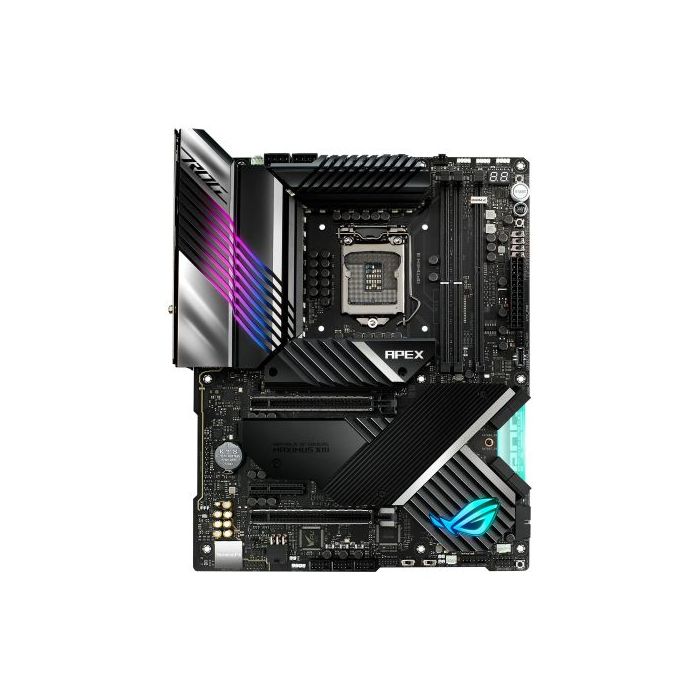

Asus ROG MAXIMUS XIII APEX, Intel Z590, 1200, ATX, 2 DDR4, SLI, AX Wi-Fi, 2.5G LAN, Overclockers Toolkit, RGB, 4x M.2
£485.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBMAXIMUS13APEX
Asus ROG MAXIMUS XIII APEX, Intel Z590, 1200, ATX, 2 DDR4, SLI, AX Wi-Fi, 2.5G LAN, Overclockers Toolkit, RGB, 4x M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1200
- Chipset: Intel Z590
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 64GB
- Graphics: -
- Graphics Ports: -
- Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology
- PCI/PCI Express: 2 x PCIe 4.0 x16
1 x PCIe 3.0 x4 - Storage: 8 x SATA III
1 x M.2 (2242/2260/2280) - PCIe*
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
*This slot is only active with 11th gen CPUs - RAID: "RAID 0, 1, 5, 10"
- Wireless: Intel Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 hardware ready - LAN: 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
5 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
6 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2x2 connector Type-C at mid-board" - Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
5 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet
5 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
1 x PS/2 Keyboard
1 x PS/2 Mouse - Internal I/O Connectors: 1 x Thunderbolt 4
1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
2 x 4-pin Full Speed Fan
1 x W_PUMP+
1 x 2-pin Water In
1 x 2-pin Water Out
1 x 3-pin Water Flow
1 x 24-pin Main
2 x 8-pin +12V - .: 1 x 6-pin PCIe Graphics Card
2 x M.2 (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
8 x SATA 6Gb/s
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen1
3 x USB 2.0
1 x 80 Light Bar jumper
3 x AURA Addressable Gen2
1 x AURA RGB - .: "1 x Front Audio
1 x LN2 Mode jumper
8 x ProbeIt Measurement Points
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor
1 x Thunderbolt
Buttons: BIOS Switch, FlexKey, ReTry, Safe Boot, Start
Switches: FS Mode, Pause, RSVD, V_LATCH, Slow Mode" - Accessories: 1 x ARGB RGB ext cable
1 x RGB ext cable
8 x SATA cables
3-in-1 Thermistor cables
ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
1 x M.2 screw package for ROG DIMM.2
1 x ASUS Wi-Fi moving antennas
M.2 SSD screws - .: 1 x Q-connector
1 x ROG key chain
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphics card holder - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 2.9100 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications | Intel Z590 ATX gaming motherboard with 18 power stages, PCIe 4.0, OptiMem III, Overclocker's Toolkit, onboard WiFi 6E (802.11ax), Inte 2.5 Gb Ethernet, quad M.2 with heatsinks, embedded M.2 backplates, a USB 3.2 Gen 2x2 front-panel connector, and Aura Sync RGB lighting
Performance Pushed to the Apex For generations, streamlined layouts that reduce latency and increase bandwidth have enabled ROG Apex series motherboards to dominate numerous world records. Maximus XIII Apex continues that legacy by amping power delivery and adding overclocking enhancements for 11th Generation Intel Core processors. Those upgrades are fused with the latest connectivity options to boost the meta and bring the board's racetrack performance to daily rigs. Enhanced with AI Intelligent software solutions help ensure that your system performs at its best. The latest ASUS AI-powered enhancements span four pillars of performance, including overclocking, cooling, networking and onboard audio, making advanced tweaks and optimization accessible to new recruits and savvy PC DIY veterans alike. AI Overclocking Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push each system to its limits. AI Cooling Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm reduces unnecessary system noise by monitoring CPU temperatures and dynamically adjusting fans to optimal speeds. AI Networking The GameFirst VI utility optimizes networking performance by allocating bandwidth in real time based on application usage scenarios and corresponding learning algorithms. Two-Way AI Noise Cancelation This utility leverages a massive deep-learning database to reduce over 500 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls. Overclocking ROG Maximus XIII Apex makes overclocking accessible to both beginners and seasoned enthusiasts alike. Its intelligent power solution caters to the demands of the latest Intel processors, while comprehensive controls give you the tools you need to ramp up performance. Cooling A robust and comprehensive cooling solution is vital in your pursuit of performance. ROG Maximus XIII Apex includes sturdy heatsinks and a series of fan and water-cooling headers to keep temperatures in check. Connectivity Maximus XIII Apex delivers supersmooth wireless connectivity, extensive M.2 compatibility, and high-end audio - the essentials for any setup. Optimisation ROG Maximus XIII Apex is packed with intuitive and flexible tools that give you complete control of system performance. Personalise In addition to extraordinary performance, ROG Maximus XIII Apex provides extensive styling and customization options to let you build a system that truly stands apart. For more information, click here. |
|---|
