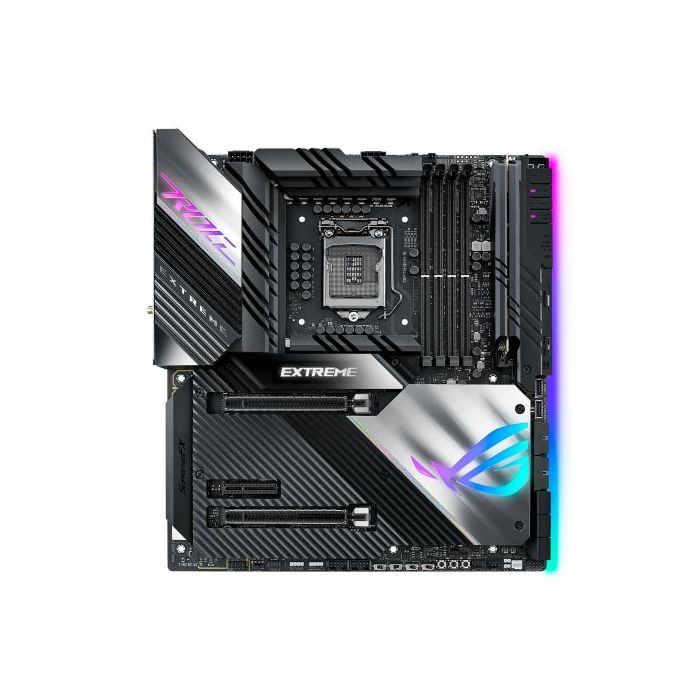

Asus ROG MAXIMUS XIII EXTREME, Intel Z590, 1200, EATX, 4 DDR4, SLI, HDMI, Thunderbolt 4, AX Wi-Fi, 10GB & 2.5GB LAN, RGB, 5x M.2
£900.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBMAXIMUS13EXTREME
Asus ROG MAXIMUS XIII EXTREME, Intel Z590, 1200, EATX, 4 DDR4, SLI, HDMI, Thunderbolt 4, AX Wi-Fi, 10GB & 2.5GB LAN, RGB, 5x M.2
- Motherboard Type: Desktop
- Form Factor: Extended ATX
- Socket: Intel 1200
- Chipset: Intel Z590
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5333(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: "1 x HDMI 2.0*
2 x Thunderbolt 4 (USB-C) - support DisplayPort 1.4 and Thunderbolt outputs
*Only Intel 11th Core processors support HDMI 2.0, others will support HDMI 1.4" - Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology
- PCI/PCI Express: 2 x PCIe 4.0 x16
1 x PCIe 3.0 x4 - Storage: 6 x SATA III
2 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280) - PCIe*
1 x DIMM.2_1 via ROG DIMM.2 (2242/2260/2280/22110) - SATA & PCIe
1 x DIMM.2_1 via ROG DIMM.2 (2242/2260/2280/22110) - PCIe
*This slot is only active with 11th gen CPUs - RAID: "RAID 0, 1, 5, 10"
- Wireless: Intel Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2 hardware ready - LAN: 10GB LAN & 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
- USB Ports Supported: 2 x Thunderbolt 4 USB-C (at back)
8 x USB 3.2 Gen2 Type-A (at back)
4 x USB 3.2 Gen1 (at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen2x2 connector Type-C at mid-board
1 x USB 3.2 Gen2 connector Type-C at mid-board - Back Panel I/O Ports: 2 x Thunderbolt 4 USB Type-C
8 x USB 3.2 Gen2 Type-A
1 x HDMI
1 x ASUS Wi-Fi Module
1 x Marvell AQtion AQC113CS 10Gb Ethernet
1 x Intel I225-V 2.5Gb Ethernet
5 x LED-illuminated audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBack button
1 x Clear CMOS button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
2 x 4-pin Chassis Fan
2 x 4-pin Radiator Fan
2 x W_PUMP+
1 x WB_SENSOR
1 x 2-pin Water In
1 x 2-pin Water Out
1 x 3-pin Water Flow
1 x 24-pin Main
2 x 8-pin +12V
1 x 6-pin PCIe Graphics Card - .: 3 x M.2 (Key M)
1 x DIMM.2 slot supports 2 x M.2 slots (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen 2x2 Type-C
1 x USB 3.2 Gen Gen2 Type-C
2 x USB 3.2 Gen1
2 x USB 2.0
3 x AURA Addressable Gen2
1 x AURA RGB
1 x BIOS Switch button - .: 1 x FlexKey button
1 x Front Audio
1 x LN2 Mode jumper
8 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switch
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Speaker header
1 x Start button
1 x V_LATCH switch
1 x 10-1 pin System Panel
1 x Thermal Sensor - Accessories: 1 x 1-to-3 ARGB splitter cable
2 x 1-to-4 fan splitter cable
1 x RGB extension cable
3 x ROG weave SATA 6G cables
1 x 3-in-1 Thermistor cables pack
ROG Fan Controller
1 x ROG Fan Controller
1 x Fan EXT PWR cable
1 x ARGB input cable
1 x USB input cable
1 x ROG Fan Controller 3M Mounting tape
1 x Fan Controller manual - .: ROG DIMM.2 with Heatsink
1 x ROG DIMM.2 with heatsink
1 x M.2 pad for ROG DIMM.2
2 x M.2 screw package for ROG DIMM.2
Misc
1 x ASUS Wi-Fi moving antennas
1 x Q-connector
1 x ROG CLAVIS DAC
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG screwdriver
1 x ROG stickers
1 x ROG thank you card
1 x ROG Graphics card holder - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 3.2700 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 2 x LAN
- #Hide#Max LAN Speed: 10GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications | Intel Z590 EATX motherboard with 18+2 power stages, five M.2 slots, USB 3.2 Gen 2x2 front-panel connector, USB 3.2 Gen 2 front-panel connector, dual Thunderbolt 4, Marvell AQtion 10 Gb Ethernet, Intel 2.5 Gb Ethernet, PCIe 4.0, onboard WiFi 6E (802.11ax) and Aura Sync RGB lighting
|
|---|
