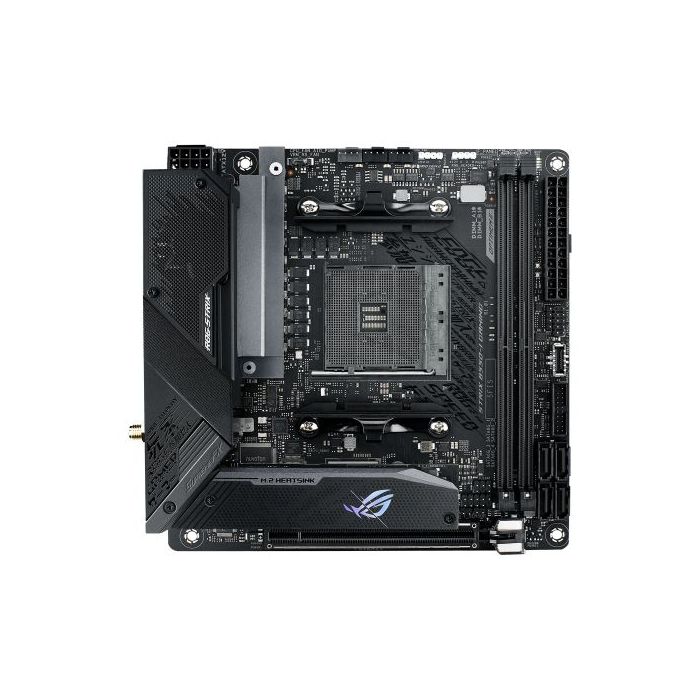

Asus ROG STRIX B550-I GAMING, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2
£222.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBB550IGAMING-STRIX
Asus ROG STRIX B550-I GAMING, AMD B550, AM4, Mini ITX, 2 DDR4, HDMI, DP, AX Wi-Fi, 2.5GB LAN, PCIe4, RGB Lighting, M.2
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: AMD AM4
- Chipset: AMD B550
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs - RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3800(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz
- Maximum Memory: 64GB
- Graphics: Integrated Graphics Processor*
Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16 (x16 mode)
- Storage: 4 x SATA III
2 x M.2 (2242/2260/2280) - SATA & PCIe - RAID: "RAID 0, 1, 10"
- Wireless: Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports bandwidth: HT20/HT40/HT80/HT160 - LAN: 2.5GB LAN
- Audio: SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
- USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
4 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
4 x USB 2.0 (2 at back, 2 at mid-board)
1 x USB 3.2 Gen1 front panel Type-C connector" - Back Panel I/O Ports: "1 x Intel I225-V 2.5Gb LAN
1 x DisplayPort
1 x HDMI
4 x USB 3.2 Gen 2 (1 Type-C, 3 Type-A)
2 x USB 2.0
1 x BIOS FlashBack Button
1 x ASUS Wi-Fi Module
3 x LED-illuminated audio jacks" - Internal I/O Connectors: 1 x CPU Fan
1 x Chassis Fan
1 x AIO_PUMP
1 x Aura RGB Strip
1 x Addressable Gen2
1 x USB 3.2 Gen1
1 x USB 2.0
2 x M.2 Socket 3 with M Key
4 x SATA 6Gb/s
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x Front audio - .: 1 x Thermal sensor
1 x Clear CMOS
1 x System panel
1 x Speaker
1 x VRM_HS_FAN
1 x USB 3.2 Gen1 front panel Type-C - Accessories: I/O Shield
4 x SATA 6Gb/s cables
2 x M.2 Screw Package
1 x ROG Strix stickers
1 x M.2 bracket
1 x Cable ties pack
1 x Wi-Fi Antenna
1 x Ext cable for Addressable LED
1 x Panel cable
1 x ROG Thank you card
1 x ROG audio USB Type-C cable - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.1300 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications | ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming (Wi-Fi) gives you a head start on your dream build. Advance Your Gaming Immersion ROG Strix B550-I Gaming is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. All-round Performance ROG Strix B550-I Gaming provides robust power delivery to fuel Ryzen's cores, comprehensive cooling, and support for faster memory - so it has everything you need to load up your build with high-performance components for playing in the big leagues. Play Your Own Style The cyberpunk-inspired aesthetics of ROG Strix B550-I Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customized gaming setup that reflects your personal style. ROG Gives You More ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want. |
|---|
