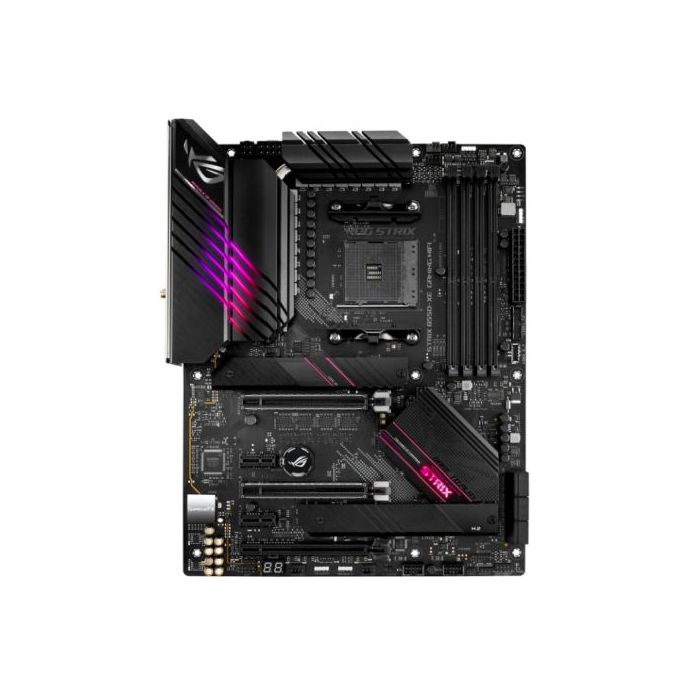

Asus ROG STRIX B550-XE GAMING WIFI, AMD B550, AM4, ATX, HDMI, DP, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2, Hyper M.2 Card

Name: Asus ROG STRIX B550-XE GAMING WIFI, AMD B550, AM4, ATX, HDMI, DP, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2, Hyper M.2 Card
Brand: Asus ROG STRIX B550-XE GAMING WIFI, AMD B550, AM4, ATX, HDMI, DP, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2, Hyper M.2 Card
SKU: SPTECH-AUMBB550XEGAMING-ST-WIFI
Price: 288.99 GBP
Availability: OutOfStock

Be the first to review this product

£288.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBB550XEGAMING-ST-WIFI

Asus ROG STRIX B550-XE GAMING WIFI, AMD B550, AM4, ATX, HDMI, DP, SLI/XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2, Hyper M.2 Card

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD B550
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Ryzen 5000 Series/3000 CPUs:
4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz

Ryzen 4000 G-Series CPUs:
5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Maximum Memory: 128GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
PCI/PCI Express: "2 x PCIe 4.0 x16 (x16, x8/x8)
1 x PCIe 3.0 x16 (x4)
2 x PCIe 3.0 x1"
Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Support 1024QAM/OFDMA/MU-MIMO
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth v5.1
LAN: 2.5GB LAN
Audio: ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
USB Ports Supported: "1 x USB 3.2 Gen2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
2 x USB 3.2 Gen1 (at mid-board)
8 x USB 2.0 (4 at back, 4 at mid-board)
1 x USB 3.2 Gen2 Type-C Front Panel Header
1 x USB 2.0 Type-C for audio (for audio)"
Back Panel I/O Ports: 1 x Intel I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
3 x USB 3.2 Gen 2 (2 Type-A + 1 Type-C)
5 x USB 2.0 (1 for audio USB Type-C)
5 x Audio jacks
1 x BIOS FlashBack Button
ASUS Wi-Fi module
Internal I/O Connectors: 1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
1 x AAFP
2 x Aura RGB Strip
2 x Addressable Gen2
1 x USB 3.2 Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
3 x M.2 Socket 1 with M key
6 x SATA 6Gb/s
.: 1 x Thunderbolt
1 x 24-pin EATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
1 x System panel
1 x Thermal sensor
1 x Clear CMOS jumper
1 x Q-Code
Accessories: 4 x SATA cables
1 x ROG Strix stickers
1 x Cable ties pack
1 x Ext Cable for RGB strips (80 cm)
1 x Extcable for Addressable LED
1 x ROG Thank you card
1 x Wi-Fi moving antenna
5 x M.2 SSD screw package
3 x M.2 Rubber Packages
1 x ROG audio USB Type-C cable
.: 1 ROG key chain
1 x Hyper M.2 x16 Gen 4 Card
Additional Features: See Overview
Package Type: Retail
Package Weight: 3.2000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	AMD B550 Ryzen AM4 ATX Gaming motherboard with PCIe® 4.0, 16 power stages, Intel® 2.5 Gb Ethernet, WiFi 6 (802.11ax), two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors Best gaming connectivity: PCIe® 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort™ 1.2 output Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes and durable capacitors Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks Superfast networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCI Express® 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen™ and the latest AMD Ryzen™ 5000 (Zen 3 architecture) processors. Advance Your Gaming Immersion ROG Strix B550-XE Gaming WIFI provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. Unleash Unlimited Performance ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that's ready to play in the big leagues. Advance Your Gaming Immersion ROG Strix B550-XE Gaming WIFI provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. Audio enhancements give you a massive advantage, allowing you to pick up on the subtlest of cues for a completely immersive gaming experience. Play Your Own Style The cyberpunk-inspired aesthetics of ROG Strix B550-XE Gaming are accentuated by the bold slashes and cybertext. By pairing your rig with other products from the diverse ROG ecosystem, you can create a fully customised gaming setup that reflects your personal style. ROG Gives You More ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements that allow you to configure your gaming build the way you want.
