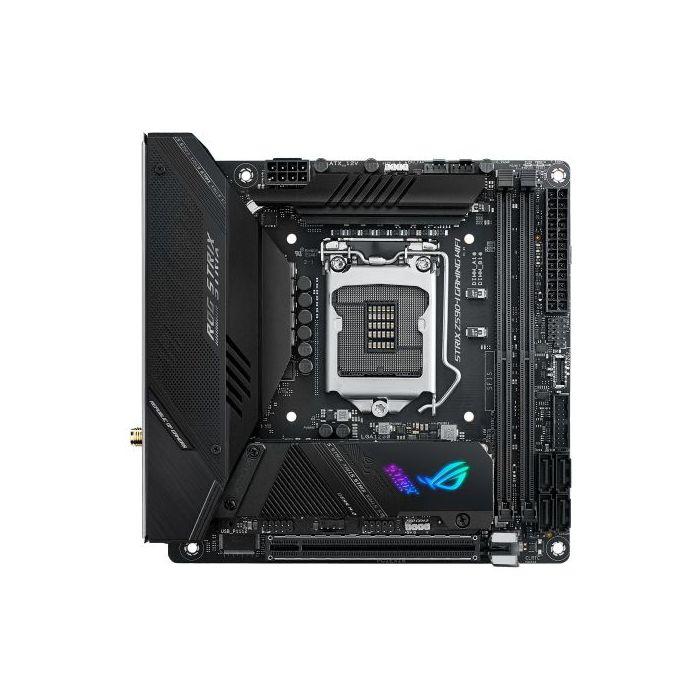

Asus ROG STRIX Z590-I GAMING WIFI, Intel Z590, 1200, Mini ITX, 2 DDR4, HDMI, Thunderbolt 4, AX Wi-Fi, 2.5G LAN, RGB, 2x M.2
£365.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBZ590IGAMING-ST-WIFI
Asus ROG STRIX Z590-I GAMING WIFI, Intel Z590, 1200, Mini ITX, 2 DDR4, HDMI, Thunderbolt 4, AX Wi-Fi, 2.5G LAN, RGB, 2x M.2
- Motherboard Type: Desktop
- Form Factor: Mini ITX
- Socket: Intel 1200
- Chipset: Intel Z590
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 2 x DIMM
- RAM Speeds: Up to 5133(OC)
- Maximum Memory: 64GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x Thunderbolt 4 (USB-C) - support DisplayPort 1.4 and Thunderbolt outputs - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16
- Storage: 4 x SATA III
1 x M.2 (2242/2260/2280) - PCIe*
1 x M.2 (2242/2260/2280) - SATA & PCIe
*This slot is only active with 11th gen CPUs - RAID: "RAID 0, 1, 5, 10"
- Wireless: Intel Wi-Fi 6
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/6GHz frequency band
Bluetooth v5.2 - LAN: 2.5GB LAN
- Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- USB Ports Supported: "1 x Thunderbolt 4 USB-C (at back)
1 x USB 3.2 Gen2x2 Type-C (at back)
1 x USB 3.2 Gen2 Type-A (at back)
3 x USB 3.2 Gen1 Type-A (1 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
1 x Front Panel USB 3.2 Gen2 connector Type-C" - Back Panel I/O Ports: 1 x Thunderbolt 4 USB Type-C
1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A
1 x USB 3.2 Gen1 Type-A
4 x USB 2.0
1 x HDMI
1 x ASUS Wi-Fi Modul
1 x Intel 1225-V 2.5Gb Ethernet
3 x LED-illuminated audio jacks
1 x BIOS FlashBack button - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin AIO Pump
1 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
2 x M.2 Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen2 Type-C
1 x USB 3.2 Gen1
1 x USB 2.0
1 x AURA Addressable Gen2
1 x AURA RGB - .: 1 x Clear CMOS
1 x Front Audio
1 x Speaker
1 x 10-1 pin System Panel
1 x Thermal Sensor - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.4000 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
- #Hide#Wi-Fi: Yes (Wi-Fi)
| Specifications |
Intel Z590 LGA 1200 ITX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks, Thunderbolt 4 USB Type-C, USB 3.2 Gen 2x2 USB Type-C, SATA and Aura Sync RGB lighting
|
|---|
