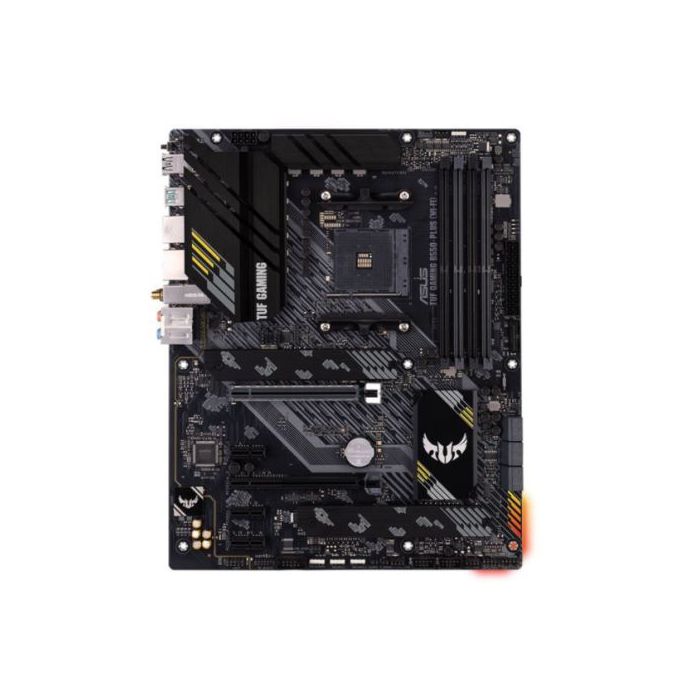

Asus TUF GAMING B550-PLUS WI-Fi, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2

Name: Asus TUF GAMING B550-PLUS WI-Fi, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2
Brand: Asus TUF GAMING B550-PLUS WI-Fi, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2
SKU: SPTECH-AUMBB550PLUS-TUF-WIFI
Price: 198.99 GBP
Availability: OutOfStock

Be the first to review this product

£198.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBB550PLUS-TUF-WIFI

Asus TUF GAMING B550-PLUS WI-Fi, AMD B550, AM4, ATX, 4 DDR4, HDMI, DP, XFire, AX Wi-Fi, 2.5GB LAN, RGB Lighting, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: AMD AM4
Chipset: AMD B550
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support

*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz
Maximum Memory: 128GB
Graphics: Integrated Graphics Processor*

Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
Multi-GPU Support: Supports AMD 2-Way CrossFireX
PCI/PCI Express: 3rd Gen Ryzen CPUs:
1 x PCIe 4.0 x16 (x16 mode)

3rd Gen Ryzen with Radeon Graphics CPUs:
1 x PCIe 3.0 x16 (x16 mode)

AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1
Storage: 6 x SATA III
2 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 10"
Wireless: Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
LAN: 2.5GB LAN
Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)"
Back Panel I/O Ports: 1 x DisplayPort
1 x HDMI
1 x LAN (2.5G)
2 x USB 3.2 Gen2 (Type-A & C)
4 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jacks
1 x BIOS FlashBack Button
1 x ASUS Wi-Fi Module
Internal I/O Connectors: 1 x CPU Fan
1 x CPU OPT Fan
3 x Chassis Fan
1 x AIO_PUMP
2 x Aura RGB Strip
2 x Addressable Gen2
1 x USB 3.2 Gen1
2 x USB 2.0
2 x M.2 Socket 3 with M key
1 x SPI TPM
6 x SATA 6Gb/s
1 x Thunderbolt header
.: 1 x 24-pin EATX
1 x 8-pin EATX 12V
1 x Front audio
1 x Thermal sensor
1 x Clear CMOS jumper
1 x System panel
1 x COM port header
Accessories: I/O Shield
2 x SATA 6Gb/s cables
1 x TUF Gaming Sticker
1 x TUF Certification card
1 x Wi-Fi Antenna
1 x M.2 SSD screw package
1 x M.2 Rubber Package
Additional Features: See Overview
Package Type: Retail
Package Weight: 1.7300 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN

More Information

More Information
Specifications	AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Intel Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support AMD AM4 socket: Ready for 3rd Gen AMD Ryzen™ processors Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support Made for online gaming: Intel Wi-Fi 6, 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology Realtek S1200A codec: Pristine audio quality with unprecedented 108 dB signal-to-noise ratio for stereo line out and 103 dB SNR for line in AI noise-canceling microphone: provides crystal-clear in-game voice communication Durable. Stable. Reliable. TUF Gaming B550-Plus (Wi-Fi) distills essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550-Plus (Wi-Fi) is the perfect foundation for your next high-core-count battle rig. Easy PC DIY TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. Immersive Gaming TUF Gaming B550-Plus (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalised gaming atmosphere. Click here for full details
