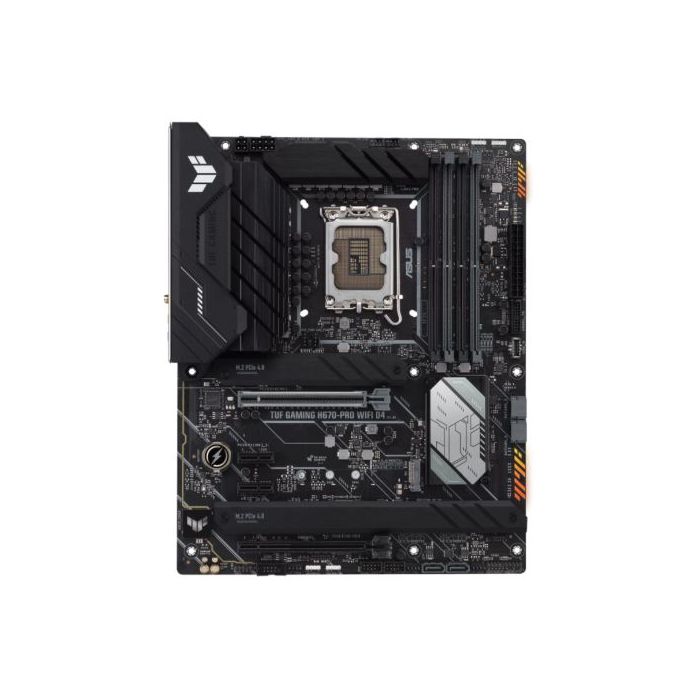

Asus TUF GAMING H670-PRO WIFI D4, Intel H670, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2

Name: Asus TUF GAMING H670-PRO WIFI D4, Intel H670, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2
Brand: Asus TUF GAMING H670-PRO WIFI D4, Intel H670, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2
SKU: SPTECH-AUMBH670PROTUFWID4
Price: 244.99 GBP
Availability: OutOfStock

Be the first to review this product

£244.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBH670PROTUFWID4

Asus TUF GAMING H670-PRO WIFI D4, Intel H670, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 4x M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Desktop
Form Factor: ATX
Socket: Intel 1700
Chipset: Intel H670
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: Up to 5333(OC)
Maximum Memory: 128GB
Graphics: Integrated Graphics*

*Graphics specifications may vary between CPU types
Graphics Ports: 1 x HDMI
1 x DisplayPort
PCI/PCI Express: 1 x PCIe 5.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1
Storage: 6 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
1 x M.2 (2242/2260/2280) - PCIe
RAID: "Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10"
Wireless: Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2
LAN: 2.5GB LAN
Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
2 x USB 3.2 Gen2 Type-A (at back)
6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)
4 x USB 2.0 (at mid-board)
1 x USB 3.2 Gen1 Type-C front panel connector"
Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
4 x USB 3.2 Gen1 Type-A
1 x DisplayPort
1 x HDMI
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
4 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
4 x M.2 (Key M)
4 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0
.: 3 x Addressable Gen2
1 x AURA RGB
1 x Clear CMOS
1 x COM Port
1 x Front Panel Audio
1 x 20-3 pin System Panel
1 x Thunderbolt
Accessories: 2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF GAMING sticker
1 x Support DVD
1 x TUF Certification card
1 x User guide
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.0000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 1 x LAN
#Hide#Max LAN Speed: 2.5GB LAN
#Hide#Wi-Fi: Yes (Wi-Fi)

More Information

More Information
Specifications	Intel® H670 (LGA 1700) ATX motherboard with PCIe 5.0 slot, four PCIe 4.0 M.2 slots, 14+1 DrMOS, Intel® 2.5Gb Ethernet, DisplayPort, HDMI, front USB 3.2 Gen 1 Type-C®, Aura Sync Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors Enhanced power solution: 14+1 DrMOS, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt 4™ support Made for online gaming: Intel® WiFi 6, Intel®2.5Gb Ethernet, TUF LANGuard Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
