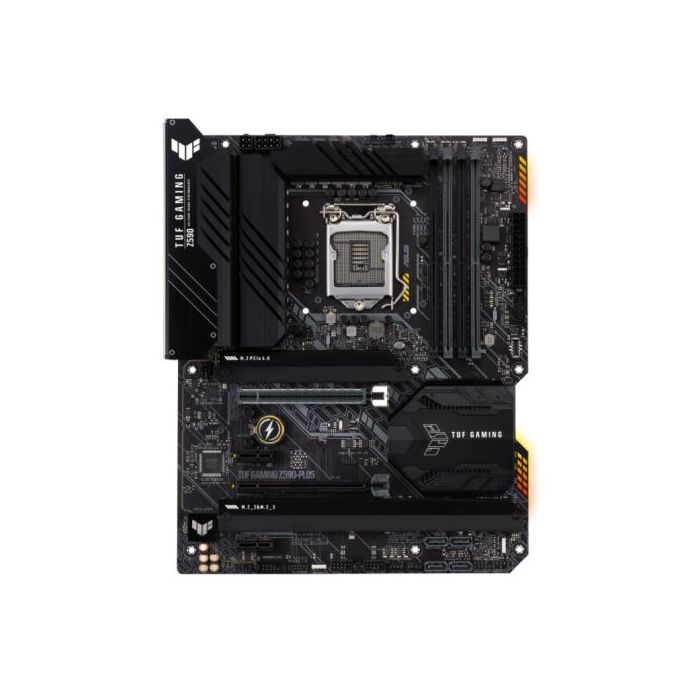

Asus TUF GAMING Z590-PLUS, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, RGB, 3x M.2
£231.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-AUMBZ590PLUSGAMINGTUF
Asus TUF GAMING Z590-PLUS, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, RGB, 3x M.2
- Motherboard Type: Desktop
- Form Factor: ATX
- Socket: Intel 1200
- Chipset: Intel Z590
- #Hide#DDR Type: DDR4
- CPU Support: Click here for CPU support
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: Up to 5133(OC)
- Maximum Memory: 128GB
- Graphics: Integrated Graphics*
*Graphics specifications may vary between CPU types - Graphics Ports: 1 x HDMI
1 x DisplayPort - Multi-GPU Support: -
- PCI/PCI Express: 1 x PCIe 4.0 x16
1 x PCIe 3.0 x16
2 x PCIe 3.0 x1 - Storage: 6 x SATA III
1 x M.2 (2242/2260/2280/22110) - PCIe*
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
1 x M.2 (2242/2260/2280) - SATA & PCIe
*This slot is only active with 11th gen CPUs - RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: 2.5GB LAN
- Audio: Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- USB Ports Supported: "1 x USB 3.2 Gen 2x2 Type-C (at back)
2 x USB 3.2 Gen2 (at back)
4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)
6 x USB 2.0 (2 at back, 4 at mid-board)
1 x USB 3.2 Gen1 connector Type-C at mid-board" - Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0
1 x DisplayPort
1 x HDMI
1 x Intel I225-V 2.5Gb Ethernet
5 x Audio jacks
1 x Optical S/PDIF out
1 x PS/2 Keyboard/Mouse combo - Internal I/O Connectors: 1 x 4-pin CPU Fan
1 x 4-pin CPU OPT Fan
1 x 4-pin AIO Pump
3 x 4-pin Chassis Fan
1 x 24-pin Main
1 x 8-pin +12V
1 x 4-pin +12V
3 x M.2 (Key M)
6 x SATA 6Gb/s
1 x USB 3.2 Gen1 Type-C
1 x USB 3.2 Gen1
2 x USB 2.0 - .: 2 x AURA Addressable Gen2
2 x AURA RGB
1 x Clear CMOS
1 x COM Port - Accessories: 2 x SATA 6Gb/s cables
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF Gaming sticker
1 x Support DVD
1 x TUF Certification card
1 x User manual - Additional Features: See Overview
- Package Type: Retail
- Package Weight: 1.7780 kg
- Warranty: 3 Years
- #Hide#M.2 Slot(s): Yes (M.2)
- #Hide#RGB Lighting: Yes (RGB)
- #Hide#No. LAN Ports: 1 x LAN
- #Hide#Max LAN Speed: 2.5GB LAN
| Specifications |
Intel Z590 (LGA 1200) ATX gaming motherboard with 16 DrMOS power stages, PCIe 4.0, three M.2 slots, Intel 2.5 Gb Ethernet, HDMI, DisplayPort, USB 3.2 Gen 2x2 Type-C, SATA 6 Gbps, front panel USB 3.2 Gen 1 Type C, Thunderbolt 4 support and Aura Sync RGB lighting
Durable. Stable. Reliable. ASUS TUF GAMING Z590-PLUS takes all the essential elements of the latest Intel processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for marathon gaming. Aesthetically, TUF GAMING Z590-PLUS sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series. Rock-Solid Performance With upgraded power delivery and comprehensive cooling options to drive the 11th and 10th Gen Intel Core processors, plus support for faster memory and storage, TUF GAMING Z590 series motherboards are the perfect foundation for your next high-core-count battle rig. DrMOS The onboard VRM of TUF GAMING Z590 series motherboards utilize 14+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 11th Gen Intel Core processors demand. Easy PC DIY TUF GAMING motherboards are designed to be easy to set up and configure just the way you want -even for first-time builders. The TUF GAMING Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF GAMING motherboards give you everything you need to build your dream gaming rig without adding complexity. Build with Confidence TUF GAMING Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. Immersive Gaming TUF GAMING Z590 series motherboards provide a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. Intel 2.5 Gb Ethernet Onboard 2.5 Gb Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, lag-free gaming, and high-res video streaming. Turbo Lan Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag. For more information, click here. |
|---|
