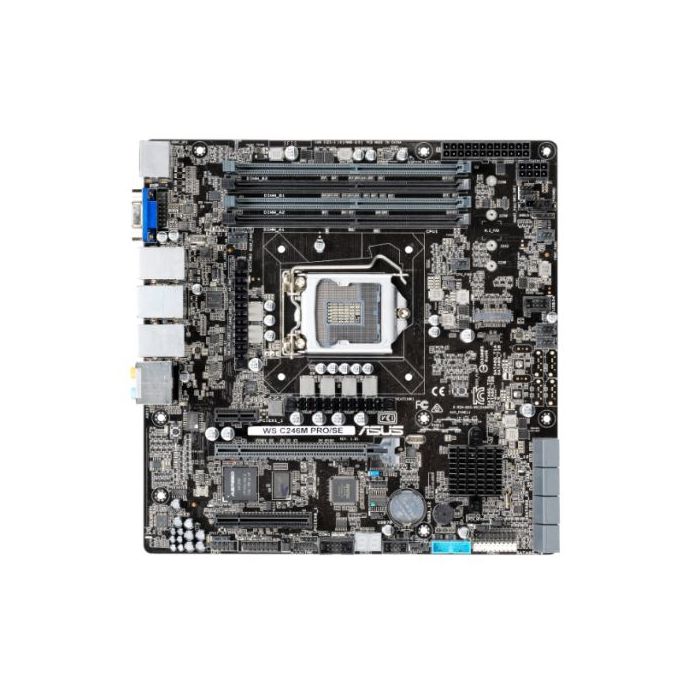

Asus WS C246M PRO/SE Rack-Optimized Workstation, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual LAN, M.2, Embedded ASMB9-iKVM Module

Name: Asus WS C246M PRO/SE Rack-Optimized Workstation, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual LAN, M.2, Embedded ASMB9-iKVM Module
Brand: Asus WS C246M PRO/SE Rack-Optimized Workstation, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual LAN, M.2, Embedded ASMB9-iKVM Module
SKU: SPTECH-AUMBC246MPROSE-WS
Price: 276.99 GBP
Availability: OutOfStock

Be the first to review this product

£276.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBC246MPROSE-WS

Asus WS C246M PRO/SE Rack-Optimized Workstation, Intel C246, 1151, Micro ATX, VGA, HDMI, DP, Dual LAN, M.2, Embedded ASMB9-iKVM Module

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: Micro ATX
Socket: Intel 1151 - Coffee Lake
Chipset: Intel C246
#Hide#DDR Type: DDR4
CPU Support: Intel Xeon processor E-2100 family
The 8th/9th generation CPUs
Intel Xeon E Processors

Click here for CPU support
RAM Technology: DDR4 (Dual Channel)
RAM Slots: 4 x DIMM
RAM Speeds: 2666/2400 UDIMM non ECC and with ECC
Maximum Memory: 128GB
Graphics Ports: 1 x VGA
1 x HDMI
1 x DisplayPort
Multi-GPU Support: -
PCI/PCI Express: Total Slot: 3

Slot Location 1: PCIe x1 (Gen2 X1 Link)
Slot Location 2: PCIe x16 (Gen3 X16 Link)
Slot Location 3: PCIe x8 (Gen3 X4 Link)
Storage: 8 x SATA III
1 x M.2 (2280/2260/2242) - SATA & PCie
Wireless: "RAID 0, 1, 5, 10"
LAN: Dual GB LAN & Mgmt LAN Port
Audio: 8-channel Audio I/O ports (5+1 Audio jacks)
USB Ports Supported: "2 x USB 3.1 Gen 2 Type-A (at back)
4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)
6 x USB 2.0 ports (2 at back, 4 at mid-board)"
Back Panel I/O Ports: 2 x USB 3.1
2 x USB 3.0
2 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x VGA
3 x RJ-45 ports
8-channel Audio I/O ports
Internal I/O Connectors: "2 x USB 2.0 pin header
1 x USB 3.0 pin header
1 x M.2 Connector , NGFF Type : 2280/2260/2242
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x COM port
1 x TPM header
1 x VGA Header"
Accessories: 1 x Support CD
1 x I/O shield
8 x SATA 6G cables
1 x Com port cable
1 x User manual
1 x Quick start guide
1 x M.2 screw
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.0000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	*Compact, rack-optimized Intel LGA1151 micro-ATX motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN* Comprehensive IT infrastructuremanagement solution with ASMB9-iKVM and ASUS Control Center (ACC) Rack-optimized design for better cooling efficiency and stability Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA Accelerated data-transfer speeds of up to 32Gbps with M.2 Onboard USB 3.1 for fast transfer speeds of up to 10Gbps Dual Intel® Gigabit LAN with teaming support Comprehensive IT Management WS C246M PRO/SE features an embedded iKVM module and is bundled with ASUS Control Center software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses: ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. The embedded ASMB9-iKVM module supports remote BIOS updates, fans control, standalone KVM, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. Rack-optimized design for better cooling efficiency WS C246M PRO/SE is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use. Powerful performance with Intel® Xeon® E processor and ECC memory WS C246M PRO/SE supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance. Supports up to three independent displays simultaneously WS C246M PRO/SE is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity. Accelerated data-transfer speeds of up to 32Gbps with M.2 With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO/SE also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup. Onboard USB 3.1 for fast transfer speeds of up to 10Gbps WS C246M PRO/SE has two USB 3.1 Gen2 that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1. SafeSlot ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
