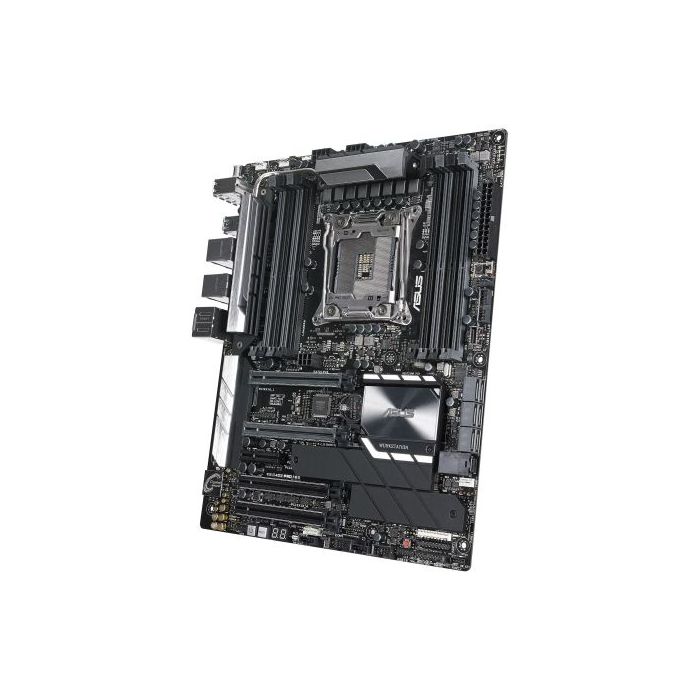

Asus WS C422 PRO/SE, Workstation, Intel C422, 2066, ATX, DDR4, 5 x PCIe, Dual LAN, RGB Lighting, M.2

Name: Asus WS C422 PRO/SE, Workstation, Intel C422, 2066, ATX, DDR4, 5 x PCIe, Dual LAN, RGB Lighting, M.2
Brand: Asus WS C422 PRO/SE, Workstation, Intel C422, 2066, ATX, DDR4, 5 x PCIe, Dual LAN, RGB Lighting, M.2
SKU: SPTECH-AUMBC422PROSE-WS
Price: 424.99 GBP
Availability: OutOfStock

Be the first to review this product

£424.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBC422PROSE-WS

Asus WS C422 PRO/SE, Workstation, Intel C422, 2066, ATX, DDR4, 5 x PCIe, Dual LAN, RGB Lighting, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: ATX
Socket: Intel 2066
Chipset: Intel C422
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Quad Channel)
RAM Slots: 8 x DIMM
RAM Speeds: 2666/2400/2133 MHz
Maximum Memory: 512GB
Graphics: -
Graphics Ports: -
Multi-GPU Support: Supports NVIDIA 3-Way SLI
Supports AMD 3-Way CrossFireX
PCI/PCI Express: "2 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 3.0 x4 (x4 mode)"
Storage: 6 x SATA III
1 x M.2 x4 (2242/2260/2280/22110) - PCIe
1 x M.2 x4 (2242/2260/2280) - SATA & PCIe
1 x U.2
RAID: "RAID 0, 1, 10"
Wireless: -
LAN: Dual GB LAN
Audio: Realtek® ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3
USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
6 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
1 x USB 3.1 Gen 2 front panel connector"
Back Panel I/O Ports: 2 x LAN (RJ45)
2 x USB 3.1 Gen 2 A & C
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button
1 x 8-channel Audio I/O
Internal I/O Connectors: 1 x Aura Addressable Strip
1 x AAFP
1 x Aura RGB Strip
1 x USB 3.1 Gen 1
1 x USB 2.0
2 x M.2
1 x TPM
6 x SATA 6Gb/s
1 x VROC_HW_Key
2 x CPU Fan
1 x AIO_PUMP
1 x Thunderbolt
.: 1 x 24-pin EATX
2 x 8-pin ATX 12V
1 x 5-pin EXT_FAN
1 x Thermal sensor
1 x U.2
3 x System panel
1 x Front fan
1 x Rear fan
1 x COM port
1 x Aspeed VGA
.: "1 x USB 3.1 Gen 2 front panel
1 x CPU_OV
1 x PUMP Fan
1x 6-pin ATX 12V
Buttons: Clear CMOS, Reset, Power-on, MemOK!"
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.3000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#RGB Lighting: Yes (RGB)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	ASUS WS C422 PRO/SE LGA2066 ECC DDR4 M.2 U.2 C422 ATX Motherboard for Intel® Xeon® W-Series Processors with SafeSlot, Dual Gigabit LAN and USB 3.1 Type A / C Designed for 7th generation LGA2066 socket Intel® W-Series processors with dual M.2, front panel USB 3.1 Gen2, Dual Intel® Gigabit LAN, support for ECC DDR4, Thunderbolt 3, Intel® VROC and Intel® Optane™ Memory compatibility Next-gen transfer speeds with up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections Patent-pending SafeSlot features an injection molding process that integrates metal framing for stronger, firmly anchored PCIe slots built for heavyweight GPUs, ideal for supporting 3-Way NVIDIA® SLI® or AMD® CrossfireX™ Industry-leading 8-channel HD audio enhanced by ASUS exclusive Realtek S1220A featuring Crystal Sound 3, DTS Headphone:X and driven by Japanese capacitors for warm, immersive sound AURA Sync RGB lighting via Addressable RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of AURA Sync enabled products Complete IT Infrastructure Management with ASMB9 Out-of-band remote management and In-band ASUS Control Center providing a complete server management solution reducing IT operating costs with features like remote BIOS updating, monitoring multiple systems via mobile device, and one-click software updates/dispatching.
