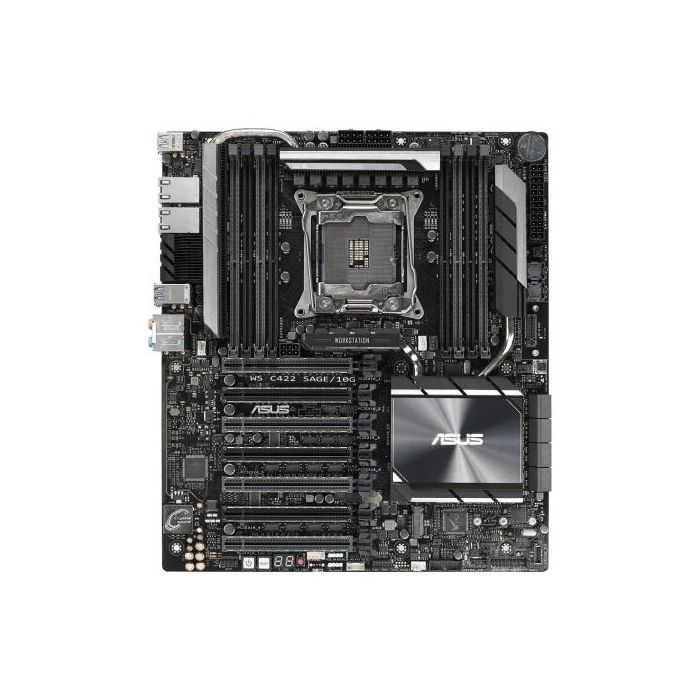

Asus WS C422 SAGE/10G, Workstation, Intel C422, 2066, CEB, SLI/XFire, Dual 10G LAN, VRM Heatsink, M.2

Name: Asus WS C422 SAGE/10G, Workstation, Intel C422, 2066, CEB, SLI/XFire, Dual 10G LAN, VRM Heatsink, M.2
Brand: Asus WS C422 SAGE/10G, Workstation, Intel C422, 2066, CEB, SLI/XFire, Dual 10G LAN, VRM Heatsink, M.2
SKU: SPTECH-AUMBC422SAGE10G-WS
Price: 660.99 GBP
Availability: OutOfStock

Be the first to review this product

£660.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBC422SAGE10G-WS

Asus WS C422 SAGE/10G, Workstation, Intel C422, 2066, CEB, SLI/XFire, Dual 10G LAN, VRM Heatsink, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: CEB
Socket: Intel 2066
Chipset: Intel C422
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Quad Channel)
RAM Slots: 8 x DIMM
RAM Speeds: 2933(O.C.)/2666/2400/2133 MHz

Please refer here for compatible memory
Maximum Memory: 1024GB
Graphics: -
Graphics Ports: -
Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
PCI/PCI Express: 7 x PCIe 3.0 x16
Storage: 8 x SATA III
1 x M.2 (2242/2260/2280) - PCIe
1 x M.2 (2242/2260/2280/22110) - PCIe
2 x U.2
RAID: "RAID 0, 1, 5, 10"
Wireless: -
LAN: Dual 10GB LAN
Audio: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
6 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)
1 x USB 3.1 Gen 2 front panel connector"
Back Panel I/O Ports: 2 x LAN (RJ45)
1 x USB 3.1 Gen2 Type-A
1 x USB 3.1 Gen2 Type-C
1 x Optical S/PDIF out
1 x 8-channel Audio I/O
4 x USB 3.1 Gen1
Internal I/O Connectors: 1 x Aura Addressable Strip
2 x U.2 port
1 x AAFP
1 x Aura RGB Strip
1 x USB 3.1 Gen 1
2 x M.2 Socket 3
1 x TPM
1 x COM port
8 x SATA 6Gb/s
1 x VROC_HW_Key
1 x CPU Fan
1 x CPU OPT Fan
.: 2 x Chassis Fan
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX
1 x 6-pin ATX
2 x 8-pin ATX 12V
1 x EZ XMP switch
1 x 5-pin EXT_FAN
1 x Power-on button
1 x Reset button
.: 1 x Clear CMOS button
1 x USB BIOS Flashback button
1 x Water Pump
1 x System panel
1 x Thermal sensor
1 x USB 3.1 Gen 2 front panel connector
1 x CPU_OV jumper
1 x MemOK! Button
1 x M.2 Fan
Accessories: Users manual
Addressable LED extension cable
1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable(s)
8 x SATA 6Gb/s cable(s)
1 x M.2 screws
1 x Supporting DVD
1 x 3-Way SLI bridge(s)
1 x 4-Way SLI bridge(s)
.: 1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.2300 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: 10GB LAN

More Information

More Information
Specifications	Intel® LGA2066 CEB motherboard with 4-way SLI graphic power, dual Intel® 10G LAN, dual M.2 & U.2, USB 3.1 Gen2 connectors and ASUS Control Center Powerful performance with Intel® Xeon® W processor and ECC memory High Speed networking with dual Intel® 10G LAN Ultimate graphics power with up to 4-way NVIDIA® SLI™ and AMD® CrossFireX™ ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses Next-gen transfer speeds - Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen2 Type-A and Type-C connections Ultra-efficient VRM heatsink - Metal fin array connected to large surface area via a heatpipe tames C422 thermals to enable unthrottled performance High Speed networking with dual Intel 10G LAN With built in dual Intel 10GBASE-T networking, WS C422 Sage/10G increases data throughput and improves efficiency. This supports high-density, high-bandwidth and low-latency access-layer networks needed for extremely demanding applications, such as graphics or video production. Ultimate graphics power with up to 4-way NVIDIA SLI and AMD CrossFireX WS C422 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA SLI and AMD CrossFireX 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA Quadro. NVIDIA Quadro is the perfect complement to WS C422 Sage/10G, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications. ASUS Control Center WS C422 Sage/10G features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. Unleashed storage speeds of up to 32Gbps WS C422 Sage/10G features dual onboard M.2 and U.2 slots that support up to 32Gbps, which one with vertical design supporting 22110-length SSDs to reduce used space. Next-gen transfer speeds WS C422 Sage/10G 's front panel USB 3.1 connector is ready for next-gen PC cases and devices. With backward-compatible USB 3.1 Gen 2 Type-A and reversible USB 3.1 Gen 2 Type-C ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. SafeSlot SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance. Manufactured in a single step using a new insert-molding process, SafeSlot integrates the slot with fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points. Outstanding Audio for content creator Unique audio codec designed in close collaboration with Realtek. The RealtekS1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality. Immersive headphone Audio DTS Headphone:X Offers 3D surround-sound technology for incredibly rich audio with all types of headphones. Supporting Thunderbolt EX3 card WS C422 Sage/10G provides full support for a ThunderboltEX 3 card. An Intel-certified Thunderbolt 3 add-on card enables breathtaking bi-directional speeds of up to 40Gbps through a single cable - up to 4X faster than other PC data-transfer protocols. Beyond sheer bandwidth, Thunderbolt 3 supports daisy-chaining up to six devices, utilizes a Type-C reversible connector for compatibility with the latest USB 3.1 Gen 2 Type-C devices, and meets USB power delivery specifications for fast, high-power charging of up to 36W.
