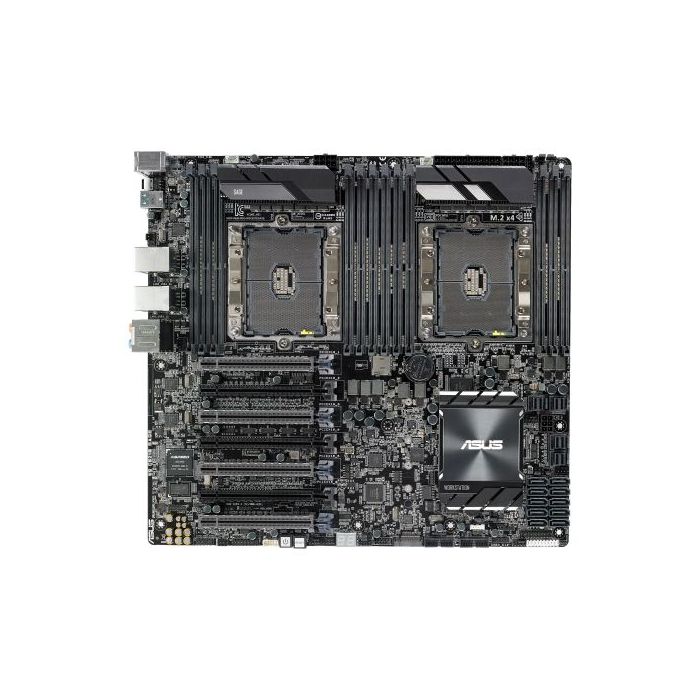

Asus WS C621E SAGE, Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 12 DDR4, Quad XFire/SLI, Dual LAN, M.2

Name: Asus WS C621E SAGE, Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 12 DDR4, Quad XFire/SLI, Dual LAN, M.2
Brand: Asus WS C621E SAGE, Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 12 DDR4, Quad XFire/SLI, Dual LAN, M.2
SKU: SPTECH-AUMBC621ESAGE-WS
Price: 551.99 GBP
Availability: OutOfStock

Be the first to review this product

£551.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBC621ESAGE-WS

Asus WS C621E SAGE, Workstation, Intel C621, S 3647, EEB, Dual Scalable Xeon, 12 DDR4, Quad XFire/SLI, Dual LAN, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: EEB
Socket: Intel 3647
Chipset: Intel C621
#Hide#DDR Type: DDR4
CPU Support: 2 x sockets

Click here for CPU support
RAM Slots: 12 x DIMM
RAM Speeds: "933/2666/2400 MHz - RDIMM, LR-DIMM"
Maximum Memory: 1536GB
Graphics: -
Graphics Ports: -
Multi-GPU Support: Supports NVIDIA 4-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
PCI/PCI Express: "3 x PCIe 3.0 x16 (x16 mode)
2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
2 x PCIe 3.0 x16 (x8 mode)"
Storage: 10 x SATA III
4 x U.2
1 x M.2 (2242/2260/2280/22110) - SATA & PCIe
RAID: "RAID 0, 1, 5, 10"
Wireless: -
LAN: Dual GB LAN
Audio: Realtek S1220A 7.1-Channel High Definition Audio CODEC
USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)"
Back Panel I/O Ports: 1 x PS/2 keyboard/mouse
2 x LAN (RJ45)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button
1 x 8-channel Audio I/O
Internal I/O Connectors: 2 x USB 3.1 Gen 1
1 x USB 2.0
1 x M.2 Socket 3
1 x TPM
1 x COM port
10 x SATA 6Gb/s
1 x VROC_HW_Key
2 x CPU Fan
7 x Chassis Fan
2 x 8-pin EATX 12V
1 x 24-pin EATX
1 x VGA connector
.: 1 x Front audio
1 x AUX panel
1 x SMBus
1 x 6-pin EATX 12V_3
1 x System panel
4 x U.2
Additional Features: See Overview
Package Type: Retail
Package Weight: 3.7000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Intel® C621 motherboard with quad-strength graphics support and 12 DDR4 memory slots Up to 4-Way NVIDIA® SLI® and AMD® Crossfire X™ on demand Two-way Xeon® CPU OC tuning for extreme performance Superb scalability and connectivity with onboard U.2, M.2, and USB 3.1 Type-C and Type-A Built with premium components for excellent power efficiency Easy Management and maintenance with ASUS Control Center (ACC) management software and USB BIOS Flashback Extreme Power and Performance Up to 4-way multiple-graphic cards The Intel® C621 chipset-based dual socket workstation motherboard features on-demand NVIDIA® SLI™ and AMD® CrossFireX™ technology. ASUS WS C621E SAGE accommodates up to four dual-width graphic cards with a four true PCIe Gen3 x16 link to unleash maximum graphic performance. With support for up to 4-way NVIDIA® SLI™, AMD CrossFireX™, and 2-Way NVIDIA Quadro® SLI™, WS C621E SAGE is an excellent choice for content creators, mechanical or architectural engineers, and anyone with processing-intensive workloads. Extraordinary performance with dual Intel® Xeon® CPU overclocking Dual Intel® Xeon® CPU overclocking, pushes the power processing power beyond the extreme ASUS WS C621E SAGE breaks performance barriers, giving you the capability to overclock dual Xeon® CPUs. With its unique BIOS mechanism dedicated to boosting CPU performance, WS C621E SAGE can deliver incredible system speed. Expandable and Scalable Supporting up to 12 DDR4 Error-correcting code memory (ECC Memory) Keeps your system running at a brisk pace, even when running multiple hardware-intensive programs! ASUS WS C621E SAGE supports up to 12 DDR4 error-correcting code (ECC) memory to ensure fast and responsive system performance, even when running multiple RAM-intensive applications — such as video, audio and image editing applications - simultaneously. Lightning-fast storage speed with NVMe PCIe SSD RAID 0 support With support for multiple NVMe PCIe storage devices configured as a RAID 0 array, ASUS WS C621E SAGE lets you enjoy lightning-fast data transfers that are far beyond those provided by single drives. Super-fast transfers at up to 32Gbps with onboard four U.2 and M.2 ASUS WS C621E SAGE is built with onboard M.2 and U.2 connectors to fit both 2.5-inch NVMe and M.2 SSDs. By using the maximum PCIe Gen3.0 x4 bandwidth of 32Gbps, WS C621E SAGE enables data transfer speeds that are up to 5.3X faster than traditional storage devices. 10Gb/s USB 3.1 Gen2 onboard With backward-compatible USB 3.1 Gen2 Type-A and reversible USB 3.1 Gen2 Type-C ports, you'll experience ultimate connection flexibility and data-transfer speeds of up to 10Gb/s - twice as fast as USB 3.0 or USB 3.1 Gen1. Exclusive audio features with Realtek® codec and unique design features for pristine and powerful audio Not satisfied with a single storage device read/write speeds? Then join the fast lane and build a RAID 0 array using NVMe PCIe storage drives to enjoy data transfers at lightning speeds! ASUS WS C621E SAGE has a unique audio codec designed in close collaboration with Realtek®. The Realtek® S1220A features an unprecedented 120dB signal-to-noise ratio for the stereo line-out and an 113dB SNR for the line-in, providing pristine audio quality Offers 3D surround-sound technology for incredibly rich audio with all types of headphones.
