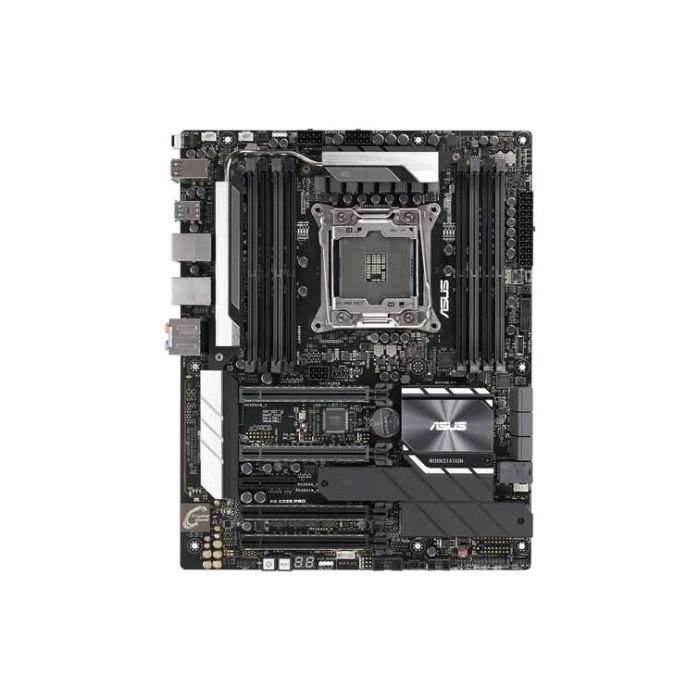

Asus WS X299 PRO, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, SLI/XFire, M.2

Name: Asus WS X299 PRO, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, SLI/XFire, M.2
Brand: Asus WS X299 PRO, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, SLI/XFire, M.2
SKU: SPTECH-AUMBX299PRO-WS
Price: 389.99 GBP
Availability: OutOfStock

Be the first to review this product

£389.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBX299PRO-WS

Asus WS X299 PRO, Workstation, Intel X299, 2066, ATX, DDR4, U.2, Dual LAN, SLI/XFire, M.2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: ATX
Socket: Intel 2066
Chipset: Intel X299
#Hide#DDR Type: DDR4
CPU Support: Click here for CPU support
RAM Technology: DDR4 (Quad Channel)
RAM Slots: 8 x DIMM
RAM Speeds: 4133(O.C.)/3600(O.C.)/2666/2400/2133 MHz
Maximum Memory: 256GB
Graphics: -
Graphics Ports: -
Multi-GPU Support: Supports NVIDIA 3-Way SLI Technology
Supports AMD 3-Way CrossFireX™ Technology
PCI/PCI Express: 2 x PCIe 3.0 x16
1 x PCIe 3.0 x16 (x4 Bandwidth)
1 x PCIe 3.0 x16 (x8 Bandwidth)
1 x PCIe 3.0 x4
PCI: -
Storage: 6 x SATA III
1 x M.2 Socket (2242/2260/2280/22110) - PCIe
1 x M.2 Socket (2242/2260/2280) - SATA & PCIe
1 x U.2
RAID: "RAID 0, 1, 5, 10"
Wireless: -
LAN: Dual GB LAN
Audio: Realtek ALC S1220A 7.1-Channel High Definition Audio CODEC featuring Crystal Sound 3
USB Ports Supported: "2 x USB 3.1 Gen 2 (Type-A & C at back)
8 x USB 3.1 Gen 1 (4 at back, 2 at mid-board)
6 x USB 2.0 (4 at back, 2 at mid-board)
1 x USB 3.1 Gen 2 front panel connector"
Back Panel I/O Ports: 2 x LAN (RJ45)
2 x USB 3.1 Gen 2
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
1 x USB BIOS Flashback Button
1 x 8-channel Audio I/O
Internal I/O Connectors: 1 x USB 3.1 Gen 1
1 x USB 2.0
2 x M.2 Socket 3
1 x TPM header
6 x SATA 6Gb/s
1 x VROC_HW_Key
2 x CPU Fan
1 x AIO_PUMP
1 x Thunderbolt
1 x 24-pin EATX
2 x 8-pin ATX 12V
1 x 6-pin EZ_PLUG
.: 1 x EZ XMP switch
1 x Front panel
1 x AUX panel
1 x MemOK!
1 x Thermal sensor
1 x CPU OV
1 x 5-pin EXT_FAN
1 x Rear fan
1 x COM port
1 x U.2
.: "1 x Aura Addressable Strip
1 x AAFP
1 x Aura RGB Strip
1 x USB 3.1 Gen 2 front panel connector
1 x PANEL2
1 x PUMP Fan
1 x PANEL1
Buttons: Power-on, Clear CMOS"
Accessories: 1 x Vertical M.2 bracket set
I/O Shield
1 x COM port cable
6 x SATA cables
2 x M.2 screws
1 x 3-Way SLI bridge
1 x SLI bridge
1 x Q-Connector
1 x 2-port USB module
1 x Extension Cable for RGB strips (80 cm)
Additional Features: See Overview
Package Type: Retail
Package Weight: 2.3100 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 2 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Intel LGA 2066 ATX motherboard with DDR4 4133MHz, dual M.2 and M.2 heatsink, U.2, and USB 3.1 Gen 2 connectors. 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads. Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI. Ultra-efficient VRM heatsink: Metal fin array connected to large surface area via a heatpipe tames X299 thermals to enable unthrottled performance. Next-gen transfer speeds: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Type-A and Type-C connections. Tune it Your Way One-click overclocking and cooling ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig. An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration. Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks. Stress test function helps optimize and overclock for CPU- or memory-centric workloads. Flagship Performance Make your memory go faster With optimized trace paths for time-aligned signaling and minimal crosstalk, third-generation ASUS T-Topology offers enhanced memory stability and compatibility, allowing support for memory speeds of DDR4-4133MHz and beyond. OC Design – ASUS PRO Clock II Technology WS X299 PRO includes a dedicated base-clock (BCLK) generator that extends CPU and memory overclocking margins. This custom solution works in tandem with the TPU to enhance voltage and BCLK overclocking control, providing the flexibility to extract every ounce of performance from the Intel® Core™ X-series processors. Multi-GPU support With support for both NVIDIA® SLI™ and AMD CrossFireX™ 2/3-WAY configurations, WS X299 PRO enables multi-GPU setups so you can harness the full power of the latest graphics technologies to drive games at 4K and beyond. Cooler By Design Flexible Cooling Controls WS X299 PRO features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS. Multiple temperature sources Water pump+ AIO pump 4-pin PWM/DC fan ASUS Fan Extension Card support Smart protection Ultra-efficient VRM Heatsink Designed for the powerful Intel Core X-series processor with up to 18 cores, WS X299 PRO features a capable thermal design to ensure maximum performance with no CPU throttling. Consisting of an ultra-efficient VRM heatsink with a metal fin array design that maximizes surface area for heat dissipation, plus two additional heatsinks and a connecting heatpipe to further increase cooling performance, this innovative thermal design ensures WS X299 PRO is always ready to handle any task, no matter how demanding. Connect Everything, Ultra-Fast Perfected cooling for unleashed performance WS X299 PRO features dual onboard M.2 slots, each operating at X4 PCI Express 3.0 to provide an abundant 32Gbps of bandwidth. Both slots sit below the X299 chipset and are covered by a heatsink that reduces drive temps by as much as 20°C, ensuring peak performance under all scenarios. VROC Upgrade your RAID Unleash the WS X299 PRO Virtual RAID on CPU (VROC) with the addition of an ASUS Hyper M.2 X16 Card, which allows you to attach up to four PCIe® 3.0 x16 M.2 drives - for a total bandwidth of up to 128Gbps. PCH-based RAID arrays are bottlenecked by the 32Gbps limit of the DMI bus. VROC obliterates that limit by allowing you to utilise CPU PCIe lanes to configure a bootable RAID array that can transfer data at insane speeds. USB 3.1 Gen 2 front-panel connector Future-proof connectivity* WS X299 PRO's front panel USB 3.1 connector is ready for next-gen PC cases and devices. USB 3.1 Gen 2 Type-A & Type-C Ultimate-speed 10Gbps with USB 3.1 Gen 2 onboard With backward-compatible USB 3.1 Gen 2 Type-A™ and reversible USB 3.1 Gen 2 Type-C™ ports, you'll experience ultimate connection flexibility and blazing data-transfer speeds of up to 10Gbps. Dual Intel® server-class Gigabit LAN For more reliable networking, WS X299 PRO features the latest server-class dual Intel® Gigabit LAN ensuring lower CPU utilization and temperatures outstanding performance as well as better support for diverse operating systems. The dual Ethernet ports also support teaming which combines the network links to provide higher throughput or redundancy in case of failure. Intel® Core™ X-series processors for LGA 2066 socket Intel Core X-series processors (6-core and above): 4-channel (8-DIMM), 44/28 PCI Express 3.0/2.0 lanes. Intel Core X-series processors (4 core): 2-channel (4-DIMM), 16 PCI Express 3.0/2.0 lanes.
