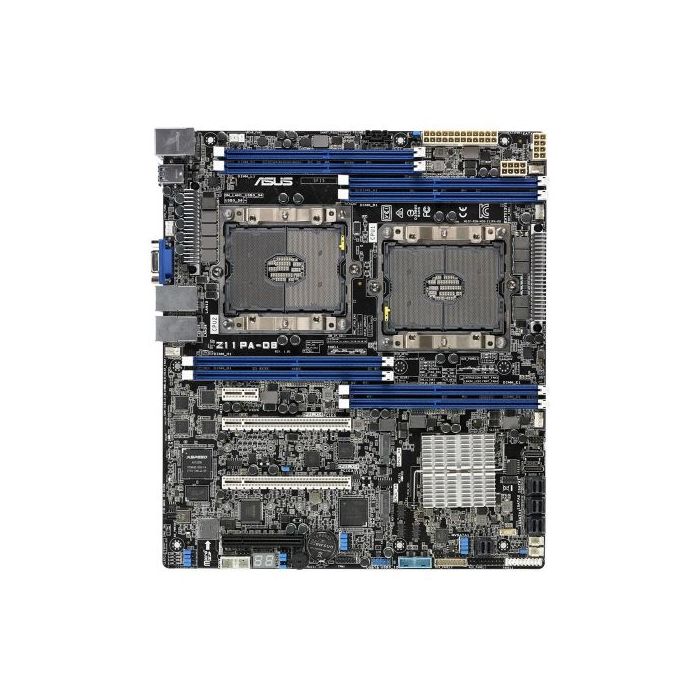

Asus Z11PA-D8 Xeon Server MB, Intel C621, S 3647, CEB, Dual Scalable Xeon, 8 DDR4, 4 mini-SAS, Quad GB LAN, Dual OCuLink for NVMe

Name: Asus Z11PA-D8 Xeon Server MB, Intel C621, S 3647, CEB, Dual Scalable Xeon, 8 DDR4, 4 mini-SAS, Quad GB LAN, Dual OCuLink for NVMe
Brand: Asus Z11PA-D8 Xeon Server MB, Intel C621, S 3647, CEB, Dual Scalable Xeon, 8 DDR4, 4 mini-SAS, Quad GB LAN, Dual OCuLink for NVMe
SKU: SPTECH-AUMBZ11PAD8
Price: 491.99 GBP
Availability: OutOfStock

Be the first to review this product

£491.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-AUMBZ11PAD8

Asus Z11PA-D8 Xeon Server MB, Intel C621, S 3647, CEB, Dual Scalable Xeon, 8 DDR4, 4 mini-SAS, Quad GB LAN, Dual OCuLink for NVMe

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Motherboard Type: Server / Workstation
Form Factor: CEB
Socket: Intel 3647
Chipset: Intel C621
#Hide#DDR Type: DDR4
CPU Support: 2 x sockets

Click here for CPU support
RAM Technology: DDR4 (Quad Channel)
RAM Slots: 8 x DIMM
RAM Speeds: 2666/2400

Note on capacity:
Maximum up to 256GB RDIMM
Maximum up to 512GB LRDIMM
Maximum up to 1024GB LR-DIMM 3DS
Maximum Memory: 1024GB
Graphics: Aspeed AST2500 with 64MB VRAM
Graphics Ports: 1 x VGA
Multi-GPU Support: -
PCI/PCI Express: Total Slots: 3

Location 1: PCIe x8
Location 3: PCIe x16
Location 5: PCIe x16
Location 6: MIO Slot for Audio card
Storage: 12 x SATA3 6Gb/s ports (12 by 3 Mini-SAS Connector)
4 SATA3 6Gb/s port by 1miniSAS connector
2 x M.2 (22110/2280/2260/2242) - SATA
RAID: Dual M.2 SSDs in RAID
Wireless: -
LAN: Quad GB LAN & Mgmt LAN Port
Audio: MIO Slot for Audio card
USB Ports Supported: "6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
2 x USB 2.0 (at mid-board)"
Back Panel I/O Ports: 4 x USB 3.0
1 x VGA
4 x RJ-45 GbE LAN
1 x RJ-45 Mgmt LAN

Rear Switch/LED:
1 x Power switch
1 x Message LED
1 x HDD LED
1 x Location LED
1 x BMC LED
1 x P5V LED
Internal I/O Connectors: 1 x TPM
1 x PSU Power
1 x USB 3.0 pin
1 x USB 2.0 pin
8 x Fan
1 x Serial Port
1 x SMBus
1 x Chassis Intruder
4 x Front LAN LED
2 x M.2
1 x VROC Key
1 x Q-Code/Port 80 LED
Accessories: I/O Shield
1 x Supporting DVD
2 x LGA3647 carrier
Additional Features: See Overview
Package Type: Retail
Package Weight: 0.0000 kg
Warranty: 3 Years
#Hide#M.2 Slot(s): Yes (M.2)
#Hide#No. LAN Ports: 4 x LAN
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Intel® Xeon® server motherboard with 8 DIMM slots Powerful performance with Intel® Xeon® Scalable processor and ECC memory Increased performance or data redundancy with dual M.2 SSDs in RAID mode High-speed storage interface support with dual OCuLink for NVMe Connect up to 16 SATA 6Gb/s storage devices Comprehensive IT infrastructure management software More flexible storage capability with SD card support Quick initialisation guidance for faster BIOS tracking enhancement Powerful performance with Intel® Xeon® Scalable processor and ECC memory Z11PA-D8 is built on the Intel® Xeon® Scalable Platform to deliver higher per-core performance and four memory channels that provide 50% more memory bandwidth and capacity for 1.65X faster average system-level performance compared to previous-generation processors. The Intel® Xeon® Scalable platform also delivers better virtualisation performance, enabling 4.2X more virtual machines (VMs) per system. With 8 DIMM slots that support up to 2TB of fast DDR4-2666, 2400MHz 3DS ECC RDIMMs or LRDIMMs, Z11PA-D8 delivers industry-leading memory capability for your business. Increased performance or data redundancy with dual M.2 SSDs in RAID mode Dual M.2 SATA SSDs enable top performance or data redundancy in RAID mode In performance-maximising RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy. Z11PA-D8 comes with an optional Virtual RAID on CPU (VROC) enabling connector to support NVMe SSDs with Intel® Volume Management Device technology. The NVMe SSDs are directly connected to the CPU, enabling latency reduction and increased bandwidth, while reducing power consumption by 15W compared to traditional hardware RAID cards. High-speed storage interface support with dual OCuLink for NVMe Dual OCuLink for efficient connections to NVMe devices Z11PA-D8 features dual onboard OCuLink to provide efficient port-to-port connection with most OCuLink-supported NVMe devices, eliminating the need for PCIe transaction cards. Connect up to 16 SATA 6Gb/s storage devices Z11PA-D8 comes with four mini-SAS HD connectors that support up to 16 SATA ports each for high-speed 6Gb/s connectivity with external devices and cleaner cable routing. Comprehensive IT infrastructure management software Z11PA-D8 features an embedded iKVM module and is bundled with ASUS Control Centre software to provide comprehensive in-band and out-of-band management features for small and mid-size businesses: ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. Onboard MicroSD card slot for easy maintenance Z11PA-D8 includes a microSD card slot to provide additional storage for video and log files, as well as ISO files for OS recovery via the web-based ASMB9-iKVM user interface. This additional storage option enables users to view their files on other devices and keep their data backed up. Quick initialisation guidance for faster BIOS tracking enhancement Z11PA-D8 features quick initialisation guidance that enables users to realise the system initialisation state in seconds. It provides instant system information including the BMC firmware version, system series number, memory error messages and any unusual diagnostic results for improved and more efficient IT operation.
