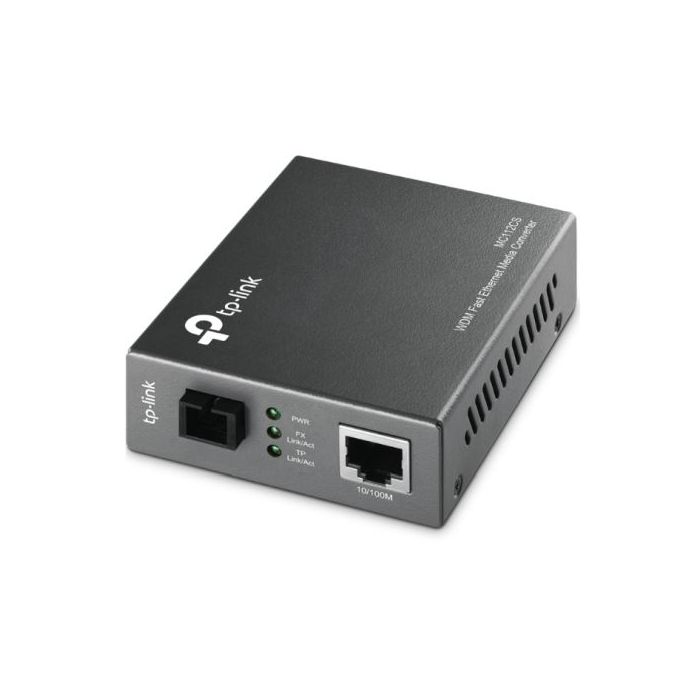

TP-LINK MC112CS Single-Mode SC Fiber WDM Media Converter, up to 20km, 100B-FX to 100B-TX Copper
£29.99
incl. VAT
+ Free Shipping
Out of stock
SKU
SPTECH-CON-MC112CS
TP-LINK MC112CS Single-Mode SC Fiber WDM Media Converter, up to 20km, 100B-FX to 100B-TX Copper
- Type: Single-Mode Media Converter
- Enclosure Type: External
- Basic Functions: Adopts WDM technology
Half/Full-Duplex transfer mode for FX port
Extends fiber distance up to 20km - Ports: 1 x 100M SC port
1 x 100M RJ45 port (Auto MDI/MDIX) - Standards and Protocols: "IEEE 802.3i, IEEE 802.3u"
- WDM TX: 1310nm
- Wave Length: 1310nm Tx/1550nm Rx
- WDM RX: 1550nm
- Network Media 10BASE-T: "UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)" - Network Media 100BASE-T: "UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)" - Network Media 100BASE-FX: Single-mode Fiber
- Transmission Distance: 20km
- LED Indicators: "PWR, Link/Act"
- Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
- Power Supply: External Power Adapter
- Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - Package Type: Retail
- Package Weight: 0.4800 kg
- Warranty: 2 Years
| Specifications | 10/100Mbps WDM Media Converter
What This Product Does The MC112CS is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC112CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC112CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC112CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on transferring data and at 1550nm on receiving data. So the other end device to cooperate with the MC112CS should work at 1550nm on transferring data and at 1310nm on receiving data. Another TP-Link´s media converter MC111CS is just one of the examples to cooperate with MC112CS. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The MC112CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
|
|---|
