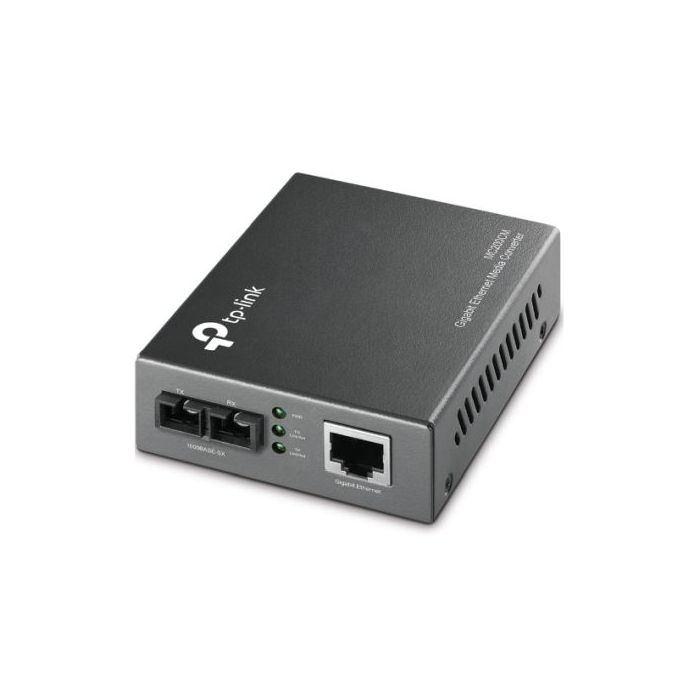

Name: TP-LINK MC200CM Gigabit Multi-Mode Media Converter
Brand: TP-LINK MC200CM Gigabit Multi-Mode Media Converter
SKU: SPTECH-CON-MC200CM
Price: 34.99 GBP
Availability: InStock

Details

Type: Multi-Mode Media Converter
Enclosure Type: External
Basic Functions: Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber
Ports: 1 x 1000M SC/UPC port
1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Standards and Protocols: "IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z"
Wave Length: 850nm
Network Media 10BASE-T: Multi-mode Fiber
Network Media 1000BASE-T: "UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 Ohms STP (maximum 100m)"
Network Media 1000BASE-FX: Multi-mode Fiber
Transmission Distance: 0.55km
LED Indicators: "PWR, Link/Act"
Dimensions (WxDxH): 94.5 x 73.0 x 27.0 mm
Power Supply: External Power Adapter
Environment: Operating Temperature: 0C~40C (32F~104F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Contents: Media Converter MC200CM
Power Adapter
Installation Guide
Package Type: Retail
Package Weight: 0.5000 kg
Warranty: 2 Years

More Information

More Information
Specifications	Gigabit Multi-Mode Media Converter 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Complies with IEEE 802.3ab and IEEE 802.3z Extends fiber distance up to 0.55km The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
