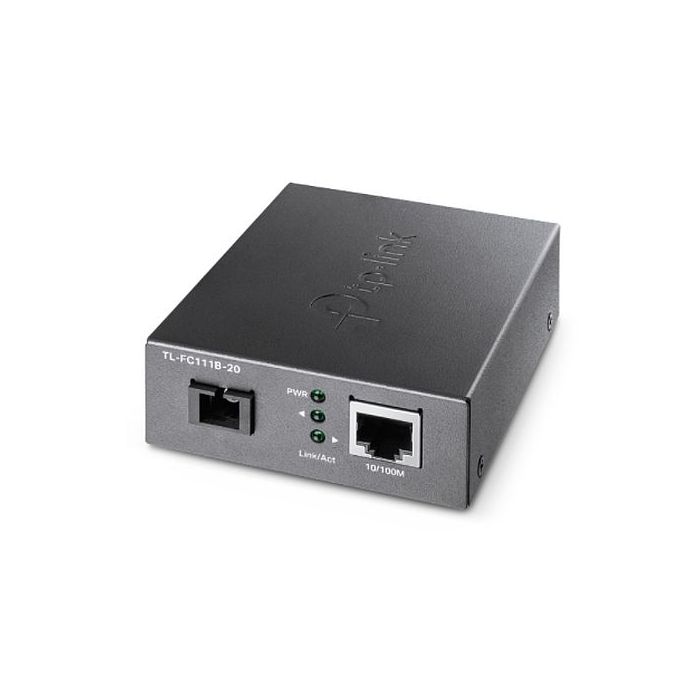

TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex

Name: TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex
Brand: TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex
SKU: SPTECH-CON-TL-FC111B-20
Price: 23.99 GBP
Availability: OutOfStock

Be the first to review this product

£23.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-CON-TL-FC111B-20

TP-LINK TL-FC111B-20 10/100 Mbps WDM Media Converter, up to 20km, 802.3u 10/100Base-TX, 100Base-FX, Single-Mode, Half-Duplex/Full-Duplex

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Type: WDM Media Converter
Enclosure Type: External
Basic Functions: "Complies with 802.3u 10/100Base-TX, 100Base-FX standards
Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
Adopts WDM technology, transmitting and receiving data on one single fiber
Extends fiber distance up to 20km"
Ports: 1 x SC fiber optic
1 x RJ45 jack
Standards and Protocols: "IEEE802.3, IEEE802.3i, IEEE802.3u"
Wave Length: 1310nm Tx/1550nm Rx
Network Media 100BASE-TX: 2-pair UTP/STP of Cat. 5 or above (<100 m)
Transmission Distance: 20km
LED Indicators: "PWR, Link/Act"
Dimensions (WxDxH): 94.5 x 73 x 27 mm
Power Supply: External Power Adapter: 5 V/0.6 A
Environment: Operating Temperature: 0C~50C (32F~122F)
Storage Temperature: -40C~70C (-40F~158F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package Type: Retail
Package Weight: 0.3500 kg
Warranty: 2 Years

More Information

More Information
Specifications	10/100 Mbps WDM Media Converter Complies with 802.3u 10/100Base-TX, 100Base-FX standards Auto-negotiation of Half-Duplex/Full-Duplex transfer mode Adopts WDM technology, transmitting and receiving data on one single fiber Extends fiber distance up to 20km What This Product Does TL-FC111B-20 is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking. How This Product Works TL-FC111B-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC111B-20 transmits data at 1310nm wavelength and receives data at 1550nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC111B-20 should send data at a wavelength of 1550nm and receive data at a wavelength of 1310nm. TP-Link another media converter TL-FC111A-20 is one of the products that can cooperate with TL-FC111B-20. Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link’s TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
