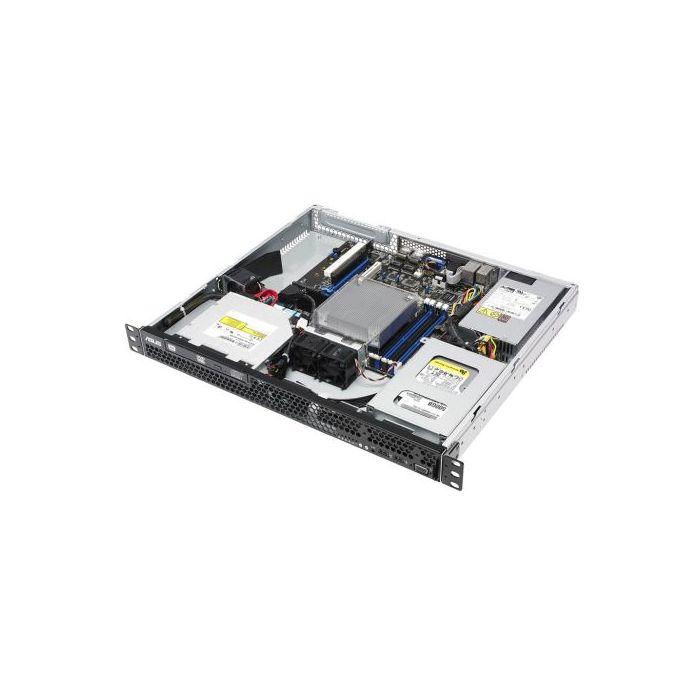

Asus RS100-E9-PI2 1U Quiet Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 2 Bay, 2x M.2, Dual GB LAN, 250W PSU

Name: Asus RS100-E9-PI2 1U Quiet Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 2 Bay, 2x M.2, Dual GB LAN, 250W PSU
Brand: Asus RS100-E9-PI2 1U Quiet Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 2 Bay, 2x M.2, Dual GB LAN, 250W PSU
SKU: SPTECH-SVR-AURS100E9PI2
Price: 438.99 GBP
Availability: OutOfStock

Be the first to review this product

£438.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SVR-AURS100E9PI2

Asus RS100-E9-PI2 1U Quiet Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 2 Bay, 2x M.2, Dual GB LAN, 250W PSU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: 1U
CPU Socket: Intel 1151 - Sky Lake / Kaby Lake
#Hide#No. of CPU Sockets: Single Socket
Chipset: Intel C232
CPU Support: 1 x Socket LGA1151
Xeon E3-1200 v6 family
Xeon E3-1200 v5 family
Intel Core i3 CPUs
Intel Pentium CPUs
Intel Celeron CPUs

Click here for CPU support list
Memory: "4 slots(2-channel)
Maximum up to 64GB UDIMM
DDR4 2400 /2133 UDIMM non ECC and with ECC
Takes 16GB, 8GB, 4GB UDIMM modules"
Expansion Slots: 1 x PCI-E x16 (x16 Gen3 Link)
Storage: "2 x 3.5"" SATA3 6Gb/s
2 x M.2 (2280/2260/2242)
Software RAID 0, 1"
HDD Bays: With ODD:
up to 2 x3.5"" disk bay or option 1x3.5""+2x2.5"" disk bay support

Without ODD:
up to 2 x3.5"" disk bay or option 1x3.5""+4x2.5"" disk bay support
Auxiliary Storage FDD/CD/DVD: 1 x Slim-type Optical Drive Bay
Options: No Device / DVD-RW
Networking: 2 x Intel I210AT + 1 x Mgmt LAN
Graphics: Aspeed AST2400 with 32MB VRAM
Front I/O Ports: 2 x USB 3.0
1 x VGA
Rear I/O Ports: 1 x External Serial Port
2 x RJ-45
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x PS/2 KB/MS
1 x RJ-45 ports (One for ASMB8-iKVM - not included)
Switch/LED: Rear Switch/LED:
1 x Q-Code/Port 80 LED
1 x Power switch

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Reset switch
1 x HDD Access LED
1 x Message LED
LAN 1-2 LED
Power Supply: "Single 250W 80 PLUS Bronze Power Supply
Rating: 100-240Vac,4A ,50-60Hz, Class I"
OS Support: Windows Server 2016
Windows Server 2012 R2
Windows Server 2012
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Citrix XenServer
Management Solution: ASWM Enterprise
Optional ASMB8-iKVM for KVM-over-IP - not included
Regulatory Compliance: "BSMI, CE, C-Tick, FCC(Class B)"
Dimensions/Weight: 380 x 430 x 44 mm
5.3 Kg
Environment: Operating temperature: 10°C ~ 35°C
Non operating temperature: -40°C ~ 70°C
Non operating humidity: 20% ~ 90% ( Non condensing)
Package Weight: 0.0000 kg
Additional Features: See Overview
Warranty: 3 Year Advanced Replacement
#Hide#Memory Slots: 4 Memory Slots
#Hide#Maximum Memory: 64 GB
#Hide#No. LAN Ports: 2
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	*Zen-quiet Appliance, Magic Capacity* Super quiet green design with lowest as 30 dB Compact size with 15” depth increasing the density per rack Complete remote management saving time and efforts Advanced storage support with dual M.2 build RAID0 for better performance Zen-quiet and energy-saving RS100-E9-PI2 delivers excellent noise mitigation, lowest as 30 dB, which is lower than the noise output of an average projector at 42dB. It also ships with high efficiency motherboard design and power module that reduces both power consumption and power loss — and that means great energy-cost savings for your organization. Flexible deployment options in a compact rack form factor With a short 15” chassis, RS100-E9-PI2 easily fits in diverse rack cabinet, largely increasing density per rack to save space. In addition, it offers the ideal size for IT deployment, which also saves considerable cost when setting up a data center. Diverse disk storage RS100-E9-PI2 is the perfect choice for an operating system or application drive, making the server work as fast as possible. ASUS further furnishes several choices for OS drive placement, such as M.2 (dual, up to 512GB x 2) and SATA DOM. For disk storage, it can offer two 3.5” disk bay or one 3.5’’ disk bay with four 2.5” disk bay (optional). Titanium-Grade Power Efficiency RS100-E9-PI2 benefits from premium components hand-chosen and carefully arranged by ASUS engineers to provide premium efficiency. The ASUS exclusive material, which can be used 136.9 years ultra longevity at 65°C. With Beat Thermal Choke III, it takes 3°C lower choke temperatures and reduces power consumption. Comprehensive remote management ASUS presents the most complete remote server control, including out of band ASMB8-iKVM (not included) and in-band ASWM Enterprise. Out-of-band ASMB8-iKVM offers LAN management, while in-band ASWM Enterprise provides “one on many” usage. IT professionals don’t have to check servers one by one, but instead can use ASWM Enterprise to monitor the status of all servers from a friendly graphical user interface.

Reviews

Asus RS100-E9-PI2 1U Quiet Barebone Server for Xeon E3-1200, Intel C232, S 1151, 4x DDR4, 2 Bay, 2x M.2, Dual GB LAN, 250W PSU

Zen-quiet Appliance, Magic Capacity
