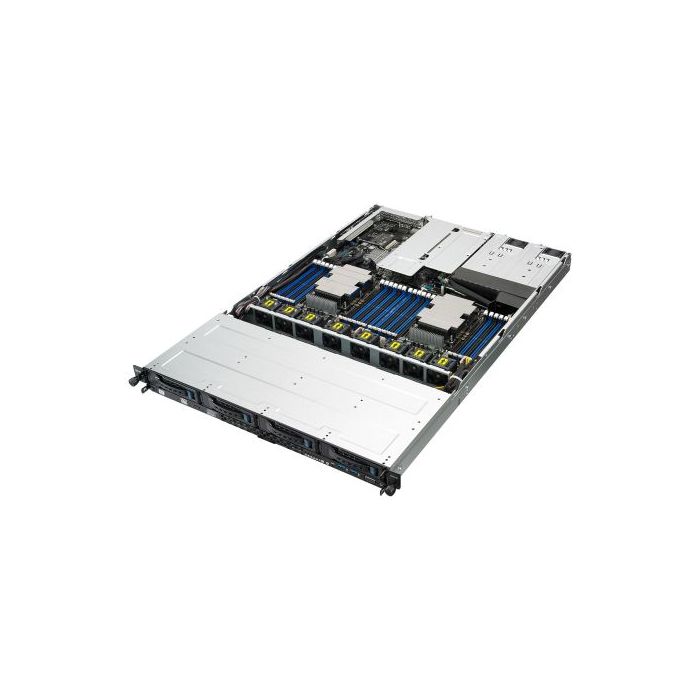

Asus RS700-E9-RS4 1U Rack High Performance Cache Barebone Server, Intel C621, Dual Socket 3647, 24 DDR4, 4 Bay Hot-Swap, Dual GB LAN, 800W PSU

Name: Asus RS700-E9-RS4 1U Rack High Performance Cache Barebone Server, Intel C621, Dual Socket 3647, 24 DDR4, 4 Bay Hot-Swap, Dual GB LAN, 800W PSU
Brand: Asus RS700-E9-RS4 1U Rack High Performance Cache Barebone Server, Intel C621, Dual Socket 3647, 24 DDR4, 4 Bay Hot-Swap, Dual GB LAN, 800W PSU
SKU: SPTECH-SVR-AURS700E9RS4
Price: 1405.99 GBP
Availability: OutOfStock

Be the first to review this product

£1,405.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SVR-AURS700E9RS4

Asus RS700-E9-RS4 1U Rack High Performance Cache Barebone Server, Intel C621, Dual Socket 3647, 24 DDR4, 4 Bay Hot-Swap, Dual GB LAN, 800W PSU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: 1U
CPU Socket: Intel 3647
#Hide#No. of CPU Sockets: Dual Socket
Chipset: Intel C621
CPU Support: 2 x Socket
1st and 2nd Gen Xeon Scalable CPUs

Click here for CPU support list
Memory: "24 slots (6-channel per CPU, 12 DIMM per CPU)
Maximum up to 3072GB LR-DIMM 3DS
DDR4 2933/2666/2400 RDIMM
DDR4 2933/2666/2400 LRDIMM
DDR4 2933/2666/2400 LR-DIMM 3DS
Intel Optane DC Persistent Memory "
Expansion Slots: "1 x PCIe x16 (Gen3 x16 link), FH, HL
1 x PCIe x16 (Gen3 x8 link), LP, HL
1 x PCIe x8 (Gen3 x8 link), LP, HL
1 x OCP 2.0 Mezzanine (Gen3 x16 link)"
Storage: "10 x SATA3 6Gb/s ports + 1 x M.2 connector
or
9 x SATA 6Gb/s ports + 2 x M.2 connector
Intel Rapid Storage Tech Enterprise(RSTe) (Linux/Windows)
(Software RAID 0, 1, 5, 10 )
IntelVROC (For Linux/Windows)
(Software RAID 0/1/5/10 )

Optional kits Controller (not included):
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
12G SAS Support"
HDD Bays: "4 x 3.5"" Hot-swap Storage Bays
2 x M.2 (22110, 2280, 2260, 2242)
(Support SATA/PCIe M.2,SATA RAID)
*SAS support via PIKE"
Auxiliary Storage FDD/CD/DVD: 1xslim-type Optical Drive Bay
Options: No Device/DVD-RW
Networking: 1 x Dual Port Intel I350-BT2 Gigabit LAN controller + 1 x Mgmt LAN
Graphics: Aspeed AST2500 with 64MB VRAM
Front I/O Ports: 2 x USB 3.0
1 x VGA
Rear I/O Ports: 2 x USB 3.
1 x VGA
2 x RJ-45 GbE LAN
1 x RJ-45 Mgmt LAN
Switch/LED: Rear Switch/LED:
1 x Power switch
1 x Q-Code/Port 80 LED
1 x Message LED
1 x HDD LED
1 x Location LED

Front Switch/LED:
1 x Power switch/LED
1 x Location switch/LED
1 x Message LED
1xHDD LED
LAN 1-4 LED
*LAN3-4 for Mezzazine card use
Power Supply: +1 Redundant 800W 80 PLUS Platinum Power Supply
OS Support: Windows Server 2016
Windows Server 2012 R2
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Fedora
Management Solution: ASUS Control Center(Classic)
On-Board ASMB9-iKVM for KVM-over-IP
Regulatory Compliance: "BSMI, CE, RCM, FCC(Class A)"
Dimensions/Weight: 686 x 444 x 44 mm
16.5 Kg
Environment: Operation temperature: 10C ~ 35C
Non operation temperature: -40C ~ 60C
Non operation humidity: 20% ~ 90% ( Non condensing)
Package Weight: 0.0000 kg
Additional Features: See Overview
Warranty: 3 Year Advanced Replacement
#Hide#Memory Slots: 24 Memory Slots
#Hide#Maximum Memory: 3072 GB
#Hide#No. LAN Ports: 2
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	High performance 1U cache server with 24 DIMMs and 4 drive bays. Powered by Intel® Xeon® Scalable Platform 4 x 3.5" hot-swap storage bays in a 1U server Advanced I/O support for 3+1 expandability Expandable storage for faster transfer speeds dual M.2 slots with 22110-size SSD support Smart thermal design for energy efficiency — reduces fan power consumption by up to 20% User-friendly design for easier server maintenance — tool-less design for installation and removal Fully integrated remote server management — ASUS Control Centre IT management software and ASMB9-iKVM module support Intel® Xeon® Scalable Platform design RS700-E9-RS4 is built on the Intel® Xeon® Scalable Platform to deliver incredible 1U server performance, packing incredible power into minimal space. 24 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance. User-friendly design for easier server maintenance RS700-E9-RS4 features numerous user-friendly design features that simplify server maintenance. The server's Q-code is visible from the outside of the case to make diagnosing issues easier and more convenient. A tool-less rack rail kit is included for easy server installation and removal, and a tool-less, hot-swappable fan provides faster and simpler maintenance. Advanced I/O support for 3+1 Expandability RS700-E9-RS4 offers one full-high PCI Express 3.0 x16 slot (x16 link), one low-profile PCI Express 3.0 x16 slot (x8 link), one low-profile PCI Express 3.0 x8 slot (x8 link), and one OCP 2.0 Mezzanine slot (x16 link) to support 10G/25G/100G LAN card. The flexible expansions offer diverse applications in storage and networking to meeting the demands of future expansion and high scalability in a 1U server. Expandable storage for faster transfer speeds RS700-E9-RS4 features a port-to-port OCuLink design with 3X faster transfer speeds compared to PCIe switch IC solutions. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe 3.0 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds. RS700-E9-RS4 is ideal for data centres with high storage and processing demands. Fully integrated remote server management The latest ASMB9-iKVM module enables remote BIOS updates, standalone KVM/Java utilities, video recording and BSOD capture. With out-of-band management, ASMB9-iKVM provides around-the-clock remote monitoring and diagnostics — even if the server operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables easier server management with functions such as BIOS updating without restarting the system, remote monitoring of multiple systems via mobile devices, and one-click software updates and dispatching. Smart thermal design for energy efficiency RS700-E9-RS4 features a smart thermal radar design with more ambient thermal sensors for the CPU, memory, GPU, SSD, LAN card and front-panel board that provide improved temperature monitoring and enable dynamic fan speed adjustment for better power efficiency. This smart thermal design reduces fan power consumption by up to 20% and eliminates the power-sharing board for improved efficiency and lower operation costs.
