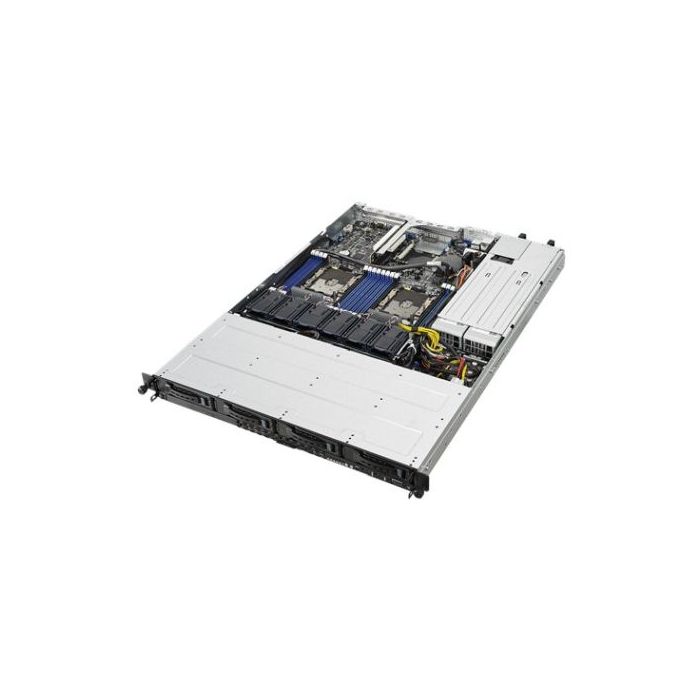

Asus RS500-E9-RS4 1U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, SATA/SAS, OCP 2.0 Mezzanine Connector, 770W Platinum PSU

Name: Asus RS500-E9-RS4 1U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, SATA/SAS, OCP 2.0 Mezzanine Connector, 770W Platinum PSU
Brand: Asus RS500-E9-RS4 1U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, SATA/SAS, OCP 2.0 Mezzanine Connector, 770W Platinum PSU
SKU: SPTECH-SVR-AURS500E9RS4
Price: 1475.99 GBP
Availability: OutOfStock

Be the first to review this product

£1,475.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SVR-AURS500E9RS4

Asus RS500-E9-RS4 1U Rack-Optimised Barebone Server, Intel C621, Dual Socket 3647, 16x DDR4, SATA/SAS, OCP 2.0 Mezzanine Connector, 770W Platinum PSU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: 1U
CPU Socket: Intel 3647
#Hide#No. of CPU Sockets: Dual Socket
Chipset: Intel C621
CPU Support: 2 x Socket
1st and 2nd Gen Xeon Scalable CPUs (205W)

Click here for CPU support list
Memory: "16 slots (6-channel per CPU, 8 DIMM per CPU)
Maximum up to 2048GB LRDIMM
DDR4 2666/2400 /2133 RDIMM
DDR4 2666/2400 /2133 LRDIMM
DDR4 2666/2400 /2133 LR-DIMM 3DS"
Expansion Slots: "1 x PCIe 3.0 x16 Slot(Gen3 x16 link); FH,HL
1 x PCIe 3.0 x8 Slot(Gen3 x8 link); FH,HL
1 x OCP 2.0 Mezzanine Conn.(Gen3 x16 link)"
Storage: SATA 6Gbps / SAS 12Gbps
2 x M.2 (22110)

Optional kits Controller (not included):
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
HDD Bays: 4 x 3.5"" Hot-swap Storage Bays
Backplane Supports 4 x 3.5"" or 2.5"" SATA/SAS Devices
Networking: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphics: Aspeed AST2500 with 64MB VRAM
Front I/O Ports: 2 x USB 3.0
1 x VGA
Rear I/O Ports: 2 x USB 3.0
1 x VGA
2 x RJ-45 1GbE LAN
1 x RJ-45 Management port
Switch/LED: "Rear Switch/LED:
1 x Power Switch/LED
1 x Q-Code/Port 80 LED
1 x Locatation LED
1 x Message LED

Front Switch/LED:
1 x Power Switch/LED
1 x Location Switch/LED
1 x Reset Switch
1 x Message LED
4 x LAN LED (LED1~2 for on-board LAN, 3~4 for OCP LAN)"
Power Supply: "1+1 Redundant 770W 80 PLUS Platinum Power Supply
Rating: 100-127/200-240 Vac, 10A/5A, 50-60Hz, Class I"
OS Support: Windows Server 2016
RedHat Enterprise Linux
SuSE Linux Enterprise Server
CentOS
Ubuntu
VMware
Citrix XenServer
Management Solution: ASUS Control Center
ASMB9-iKVM for KVM-over-IP
Regulatory Compliance: "BSMI, CE, FCC(Class A)"
Dimensions/Weight: 616 x 444 x 44 mm
11 Kg
Package Weight: 0.0000 kg
Additional Features: See Overview
Warranty: 3 Year Advanced Replacement
#Hide#Memory Slots: 16 Memory Slots
#Hide#Maximum Memory: 2048 GB
#Hide#No. LAN Ports: 2
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	Rack-optimised 1U server designed for storage expandability and power efficiency Powered by the Intel® Xeon® Scalable platform 205W CPU with 16 DIMM support High power-efficiency with redundant 770W 80 Plus Platinum power supply Designed for flexible storage with four SAS or SATA drives Ultrafast connectivity with OCP 2.0 Mezzanine card support Two M.2 slots accommodate 22110-size SSDs for faster boot speed Exclusive Thermal Radar energy-efficiency technology reduces fan power consumption by up to 20% Easy maintenance and debugging with internal USB 3.0 port and microSD card support for easier access Complete IT infrastructure management with ASMB9 out-of-band remote management and in-band ASUS Control Centre Top performance in industry-standard SPEC benchmarks RS500-E9-RS4 supports two of the latest Intel® Xeon® Scalable Family processors, which feature up to 56 cores and 112 threads and operate at a maximum of 205W for leading performance. It also has 16 memory slots that fit up to 2TB of DDR4 2666 for memory-intensive computing. Flexible expansion for better storage and networking RS500-E9-RS4 features one PCIe x16 and one PCIe x8 slots to deliver parallel computing power and one OCP 2.0 Mezzanine connector to support high-speed LAN card. This flexibility supports diverse storage and networking applications and ensures future expandability and high scalability in a 1U server. RS500-E9-RS4 fits four 3.5-inch hot-swappable 12Gbps SAS or 6Gbps SATA drives. Two M.2 slots accommodate 22110-size SSDs with support for additional OS storage and PCIe Gen3 x4 bandwidth — 5.3X faster than 6 Gb/s SATA III — for faster boot speeds. Exclusive Thermal Radar technology for energy efficiency RS500-E9-RS4 features ASUS-exclusive Thermal Radar technology with ambient sensors placed in CPU, memory, NVMe, SSD, OCP mezzanine connector for internal and external temperature monitoring, and dynamic fan-curve adjustment, which lowers fan power consumption by up to 20% and reduces total cost of ownership — ideal for data centres with extreme workloads. Exclusive Performance Boost technology ASUS features exclusive Performance Boost technology to achieve peak server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximising processor frequency and boost power, ideal for time-sensitive applications such as financial services or data centre operations. Redundant Platinum PSU support RS500-E9-RS4 supports redundant 770W 80 Plus Platinum and 450W 80 Plus Gold power supplies, which are 96%+ efficient, directly reducing operating costs and capital expenses. The 1+1 power-supply design allows the server to keep working even if one power supply requires maintenance, enabling uninterrupted operation. Comprehensive IT infrastructure management RS500-E9-RS4 features an embedded iKVM module and is bundled with ASUS Control Centre to provide comprehensive out-of-band and in-band management features for small and mid-size businesses. The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics — even if the operating system is down or offline — through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Centre (ACC) is a centralised and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure. ASUS ProCool connector ASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings. Quick initialisation guidance RS500-E9-RS4 provides instant system information during initialisation and reports any unusual diagnostic results for more efficient IT operation and easy troubleshooting. Visible Q-Code RS500-E9-RS4 has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from power on through loading of the operating system. OS drive installation and debugging An internal USB 3.0 port accepts boot disks, providing a safer way to install Linux or VMware Hypervisor as well as additional access for debugging. MicroSD card support A BMC (baseboard management controller) supports microSD cards to facilitate remote OS updates, image file and video storage, and log data tracking.
