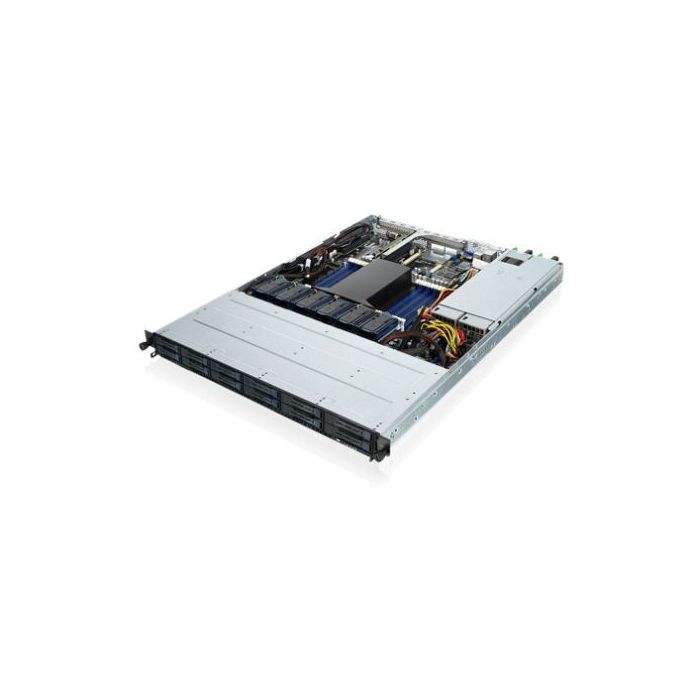

Asus RS500A-E10-RS12U12NVME 1U AMD EPYC 7002 Compact Server Barebone, 16x DDR4, Supports 12x NVMe, OCP 2.0 Mezzanine Connector, 650W Platinum PSU

Name: Asus RS500A-E10-RS12U12NVME 1U AMD EPYC 7002 Compact Server Barebone, 16x DDR4, Supports 12x NVMe, OCP 2.0 Mezzanine Connector, 650W Platinum PSU
Brand: Asus RS500A-E10-RS12U12NVME 1U AMD EPYC 7002 Compact Server Barebone, 16x DDR4, Supports 12x NVMe, OCP 2.0 Mezzanine Connector, 650W Platinum PSU
SKU: SPTECH-SVR-AURS500AE10RS12U
Price: 1501.99 GBP
Availability: OutOfStock

Be the first to review this product

£1,501.99 incl. VAT + Free Shipping

Out of stock

SKU

SPTECH-SVR-AURS500AE10RS12U

Asus RS500A-E10-RS12U12NVME 1U AMD EPYC 7002 Compact Server Barebone, 16x DDR4, Supports 12x NVMe, OCP 2.0 Mezzanine Connector, 650W Platinum PSU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Form Factor: 1U
CPU Socket: AMD SP3
#Hide#No. of CPU Sockets: Single Socket
CPU Support: AMD EPYC 70002 Series
System on Chip (SoC)

Click here for CPU support list
Memory: 16 Slots (8-channel)
Maximum up to 2048GB LRDIMM
DDR4 3200/2933/2666 RDIMM
DDR4 3200/2933/2666 LRDIMM
DDR4 3200/2933/2666 LR-DIMM 3DS
Expansion Slots: "1 x PCIe 4.0 x16 slot (Gen 4 x16 link), LF
1 x OCP 2.0 Mezzanine Conn.(Gen4 x16 link)"
Storage: SATA Controller:
CPU Integrated

Optional kits Controller (not included):
ASUS PIKE II 3008 8-port SAS HBA card
ASUS PIKE II 3108 8-port SAS HW RAID card
HDD Bays: 12 x 2.5” hot-swap storage bays
Supports 12 x 2.5"" NVMe/SATA/SAS Devices
Networking: 1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN
Graphics: Aspeed AST2500 with 64MB VRAM
Front I/O Ports: 2 x USB 3.0
1 x VGA
Rear I/O Ports: 2 x USB 3.0
1 x VGA
2 x RJ-45 1GbE LAN
1 x RJ-45 Management LAN
1 x COM port
Switch/LED: "Rear:
1 x Power Switch/LED
1 x Q-Code/Port 80 LED
1 x Location LED

Front:
1 x Power Switch/LED
1 x Message LED
1 x Location LED
4 x LAN LED(LED1~2 for on-board LAN, 3~4 for OCP LAN)"
Power Supply: 1+1 Redundant 650W 80 PLUS Platinum
Management Solution: ASUS Control Center
ASMB9-iKVM for KVM-over-IP
Regulatory Compliance: "CE, FCC(Class A)"
Dimensions/Weight: 11 kg
1U
Environment: Operating temperature: 10°C – 35°C
Non operating temperature: -40°C – 70°C
Non operating humidity: 20% – 90% (Non condensing)
Package Weight: 0.0000 kg
Additional Features: See Overview
Warranty: 3 Year Advanced Replacement
#Hide#Memory Slots: 16 Memory Slots
#Hide#Maximum Memory: 2048 GB
#Hide#No. LAN Ports: 2
#Hide#Max LAN Speed: GB LAN

More Information

More Information
Specifications	AMD EPYC™ 7002 compact 1U server with support for up to 12 SATA & SAS, 16 DIMMs, 2 PCIe 4.0, dual LAN, redundant power supplies, OCP 2.0 Mezzanine card and ASUS Control Centre Powered by AMD EPYC™ 7002 Series Processors with enhanced I/O, memory and security Supports up to 16 DIMMs for up to 2 TB of memory Flexible storage design with up to twelve 2.5-inch hot-swap SATA,SAS and NVME drives and one M.2 22110 SSDs Redundant 650W 80 Plus Platinum power supplies for high power efficiency Supports up to 225W TDP Features two PCI 4.0 lanes with 16 GT/s for next-gen connectivity Dual onboard LAN for improved data throughput and efficiency, plus one optional OCP 2.0 mezzanine card supporting up to 100G or higher ultrafast speed for HPC Complete IT infrastructure management with ASMB9 out-of-band remote management and ASUS Control Centre for in-band management Features ASUS-exclusive Thermal Radar 2.0 technology that automatically adjusts fan curves across various zones
